PD-97013A

HiRel

TM

INT-A-Pak 2, PLASTIC

HALF-BRIDGE IGBT MODULE

Product Summary

Part Number

G450HHBK06P2

V

CE

600V

I

C

450A

V

CE(SAT)

1.8

G450HHBK06P2

HiRel

TM

INT-A-Pak 2

The HiRel

TM

INT-A-Pak series are isolated near

hermetic power modules which combine the latest

IGBT and Soft Recovery Rectifier Technology. The

module uses both high-speed and low Vce(sat)

IGBT's packaged for ultra low thermal resistance

junction to case. The G450HHBK06P2 power

module consists of six IGBT's and six FRED's in a

Phase- Leg or Half-Bridge configuration.

Features:

n

Rugged, Lightweight near Hermetic Package

with Integrated Power Terminal Cap

Gen IV IGBT Technology

Soft Recovery Rectifiers

Ultra-Low Thermal Resistance

Zener Gate Protection

Very Low Conduction and Switching Loss

-55擄C to +125擄C Operating Temperature

Screening to meet the intent of

MIL-PRF-38534 Class H

n

Short Circuit Capability

n

2.0 Ohms Series Gate Resistor

n

High Altitude Operation, 85,000 Feet Above

Sea Level at Rated Voltage

n

n

n

n

n

n

n

Absolute Maximum Ratings @ Tj=25擄C (unless otherwise specified)

Parameter

Collector-to-Emitter Voltage

Gate-to-Emitter Voltage

Continuous Collector Current @ Tc = 25擄C

Continuous Collector Current @ Tc = 70擄C

Isolation Voltage

Symbol

V

CES

V

GE

I

C

V

ISOL

Value

600

鹵20

600

450

2500

Units

V

A

V

RMS

www.irf.com

1

11/08/05

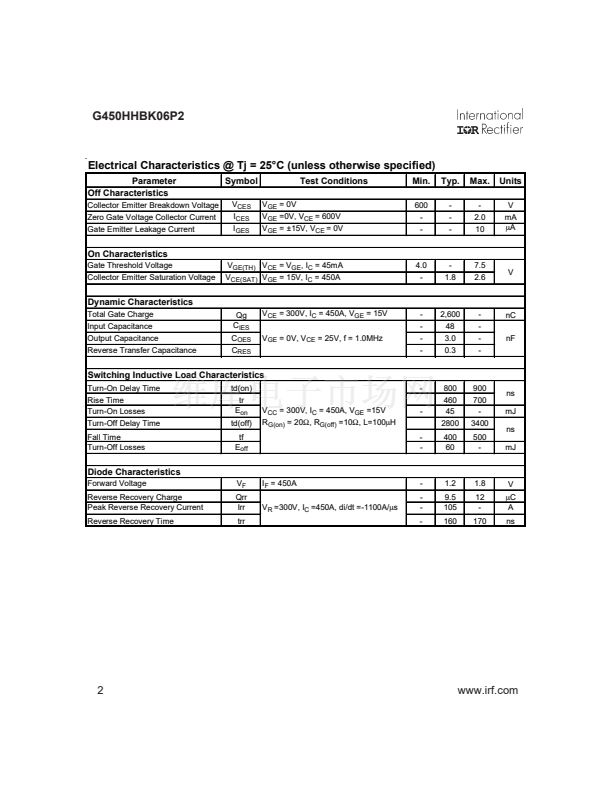

next
