FW300C1 Datasheet

  • FW300C1

  • DC-to-DC Voltage Converter

  • 20頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Data Sheet
August 2000

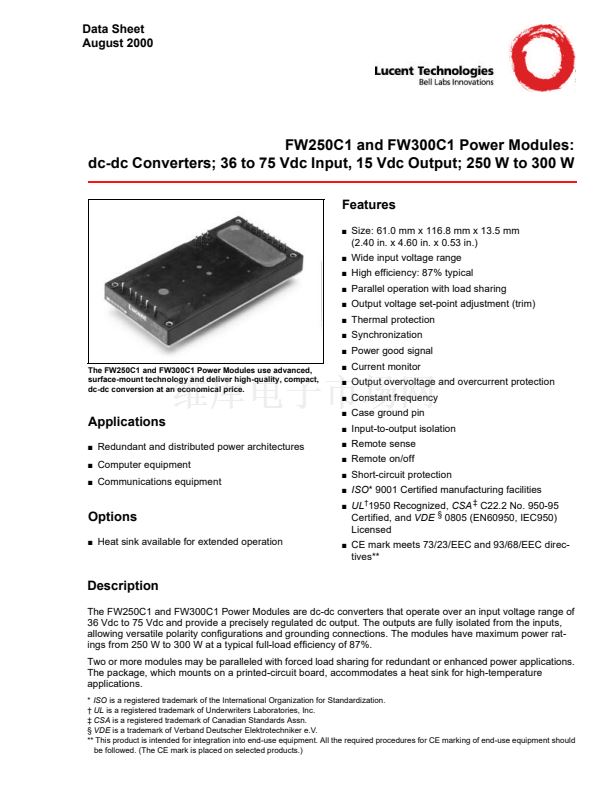

FW250C1 and FW300C1 Power Modules:
dc-dc Converters; 36 to 75 Vdc Input, 15 Vdc Output; 250 W to 300 W
Features
s
Size: 61.0 mm x 116.8 mm x 13.5 mm
(2.40 in. x 4.60 in. x 0.53 in.)
Wide input voltage range
High efficiency: 87% typical
Parallel operation with load sharing
Output voltage set-point adjustment (trim)
Thermal protection
Synchronization
Power good signal
Current monitor
Output overvoltage and overcurrent protection
Constant frequency
Case ground pin
Input-to-output isolation
Remote sense
Remote on/off
Short-circuit protection
ISO*
9001 Certified manufacturing facilities
UL
鈥?/div>
1950 Recognized,
CSA
鈥?/div>
C22.2 No. 950-95
Certified, and
VDE
摟
0805 (EN60950, IEC950)
Licensed
CE mark meets 73/23/EEC and 93/68/EEC direc-
tives**
s
s
s
s
s
s
s
The FW250C1 and FW300C1 Power Modules use advanced,
surface-mount technology and deliver high-quality, compact,
dc-dc conversion at an economical price.
s
s
s
s
Applications
s
s
s
s
s
s
s
s
s
Redundant and distributed power architectures
Computer equipment
Communications equipment
Options
s
Heat sink available for extended operation
s
Description
The FW250C1 and FW300C1 Power Modules are dc-dc converters that operate over an input voltage range of
36 Vdc to 75 Vdc and provide a precisely regulated dc output. The outputs are fully isolated from the inputs,
allowing versatile polarity configurations and grounding connections. The modules have maximum power rat-
ings from 250 W to 300 W at a typical full-load efficiency of 87%.
Two or more modules may be paralleled with forced load sharing for redundant or enhanced power applications.
The package, which mounts on a printed-circuit board, accommodates a heat sink for high-temperature
applications.
*
ISO
is a registered trademark of the International Organization for Standardization.
鈥?/div>
UL
is a registered trademark of Underwriters Laboratories, Inc.
鈥?/div>
CSA
is a registered trademark of Canadian Standards Assn.
摟
VDE
is a trademark of Verband Deutscher Elektrotechniker e.V.
** This product is intended for integration into end-use equipment. All the required procedures for CE marking of end-use equipment should
be followed. (The CE mark is placed on selected products.)

FW300C1 產品屬性

  • 20

  • 電源 - 板載

  • DC DC Converters

  • FW300

  • 隔離

  • 1

  • 75V

  • 15V

  • -

  • -

  • 20A

  • 300W

  • 1.5kV（1500V）

  • 具有遠程開/關功能

  • 通孔

  • 模塊

  • 4.60" L x 2.40" W x 0.53" H（116.8mm x 61.0mm x 13.5mm）

  • 散裝

  • -40°C ~ 100°C

  • 87%

  • 300W
