Mitsubishi Thyristor

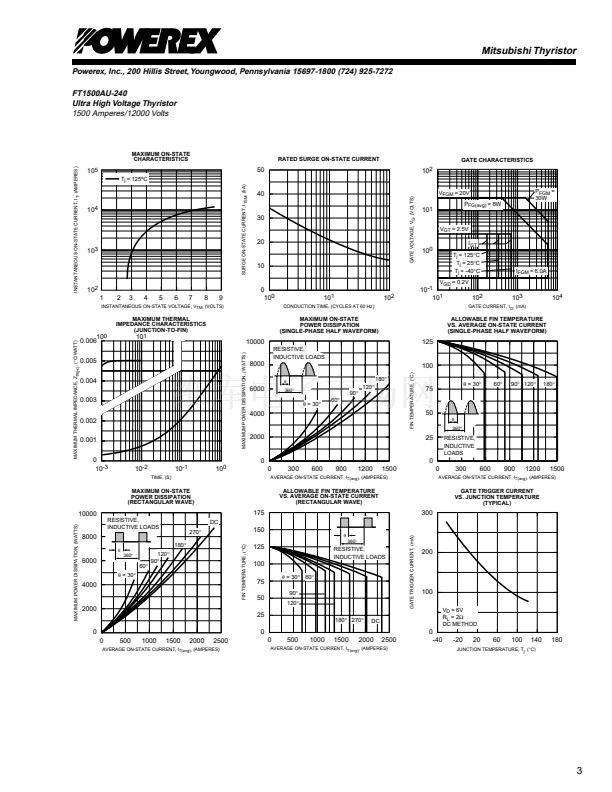

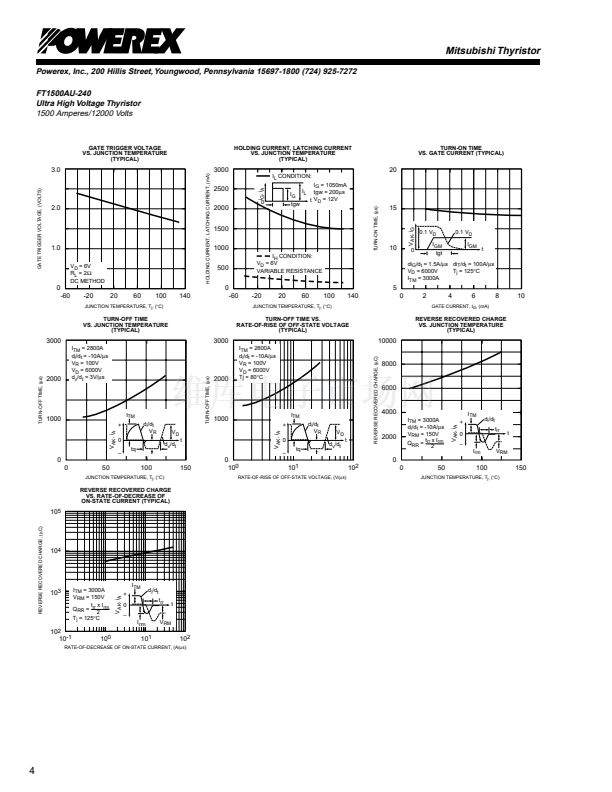

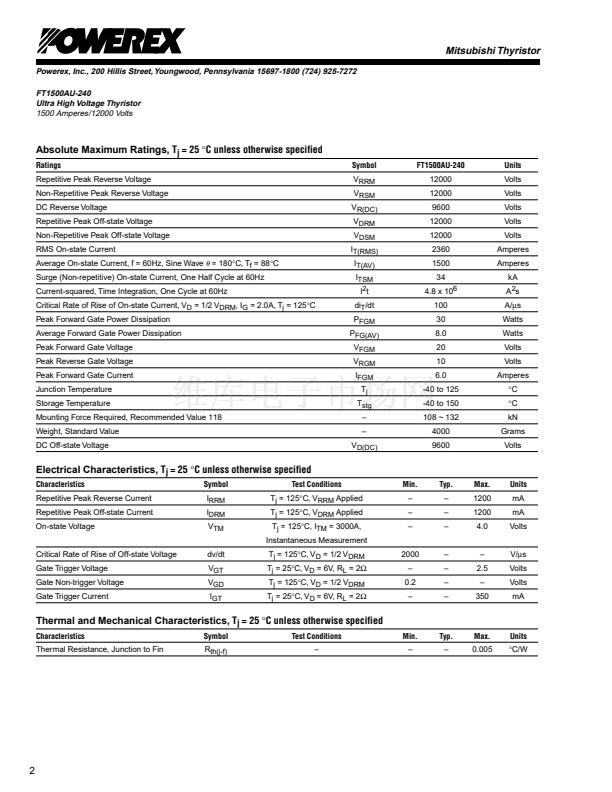

FT1500AU-240
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Ultra High Voltage
Thyristor
1500 Amperes/12000 Volts
J x K (BOTH SIDES)
H TYP
GATE (WHITE)
G TYP
AUX CATHODE POTENTIAL
CONNECTOR (RED)
F
A
TYPE
NAME
Description:
Powerex Ultra High Voltage
Thyristors are used in high
voltage AC Switch and Static Var
Compensator (SVC) applications.
Features:
鈻?/div>
Average On-state Current
(I
T(AV)
= 1500A)
鈻?/div>
Repetitive Peak Off-state
Voltage (V
DRM
= 12000V)
B
C
CATHODE
D
E
D
ANODE
鈻?/div>
Low On-state Voltage
鈻?/div>
Press Pack Type
Applications:
鈻?/div>
High Voltage AC Switch
鈻?/div>
Static Var Compensator (SVC)
Ordering Information:
Example: Select the complete part
module number you desire from
the table below.
Current
Rating
Amperes
1500
Manu.
Number
A
Voltage
Rating
(x 50)
240
Outline Drawing and Circuit Diagram
Dimensions
A
B
C
D
E
F
G
H
J
K
Inches
4.13 Dia.
4.13 Dia.
6.5 Dia.
0.2
1.38鹵0.02
17.99鹵0.39
0.30
0.17 Dia.
0.14 Dia.
0.09 Deep
Millimeters
105.0 Dia.
105.0 Dia.
165.0 Dia.
0.40
35.0鹵0.5
457.0鹵10
7.5
4.3 Dia.
3.6鹵0.1 Dia.
2.2鹵0.1 Deep
Device
FT*
Type
U**
* Press Pack Thyristor
**Ultra High Voltage
1
