FSTD32211 40/48-Bit Bus Switch with Level Shifting
September 2001
Revised September 2001
FSTD32211
40/48-Bit Bus Switch with Level Shifting
General Description
The Fairchild Switch FSTD32211 provides up to 48-bits of
high-speed CMOS TTL-compatible bus switching. The low
on resistance of the switch allows inputs to be connected to
outputs without adding propagation delay or generating
additional ground bounce noise. A diode to V
CC
has been
integrated into the circuit to allow for level shifting between
5V inputs and 3.3V outputs.
The device can be organized as four 12-bit, two 24-bit, or
one 48-bit bus switch. When routed as a 40-bit bus switch,
the device can be organized as four 10-bit, two 20-bit or
one 40-bit bus switch. When OE
1
is LOW, the switch is ON
and Port 1A is connected to Port 1B. When OE
2
is LOW,
the switch is ON and Port 2A is connected to Port 2B.
When OE
3
is LOW, the switch is ON and Port 3A is con-
nected to Port 3B. When OE
4
is LOW, the switch is ON and
Port 4A is connected to Port 4B. When OE
1
, OE
2
, OE
3
, or
OE
4
are HIGH, a high impedance state exists between the
A and B Ports.
Features
s
4
鈩?/div>
switch connection between two ports
s
Voltage level shifting
s
Minimal propagation delay through the switch
s
Low l
CC
s
Zero bounce in flow-through mode
s
Control inputs compatible with TTL level
s
Packaged in plastic Fine-Pitch Ball Grid Array (FBGA)
Ordering Code:
Order Number
FSTD32211GX
(Note 1)
Package Number
BGA114A
Package Description
114-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide
[Tape and Reel]
Note 1:
BGA package available in Tape and Reel only.
Logic Diagram

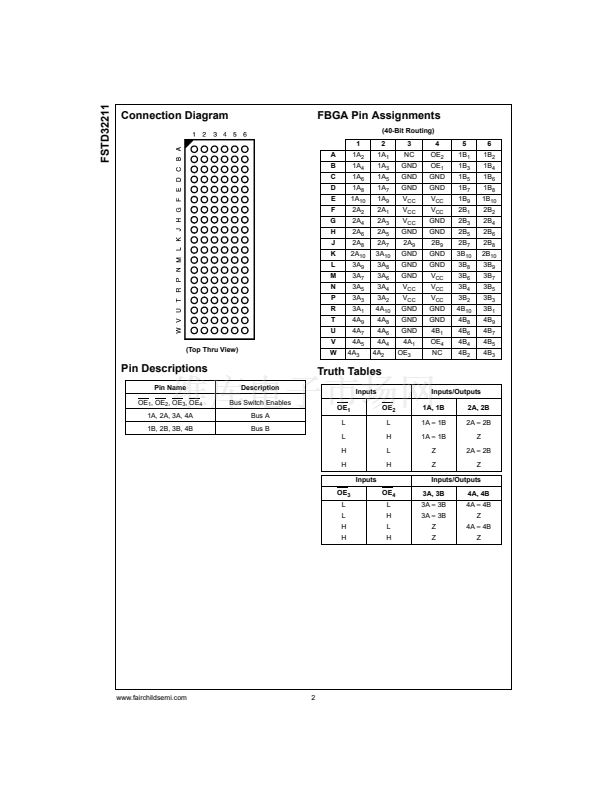

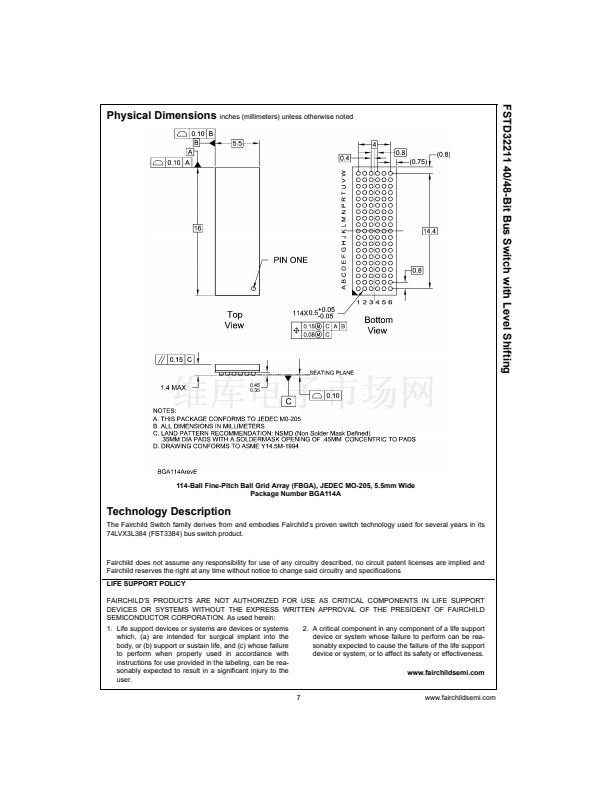

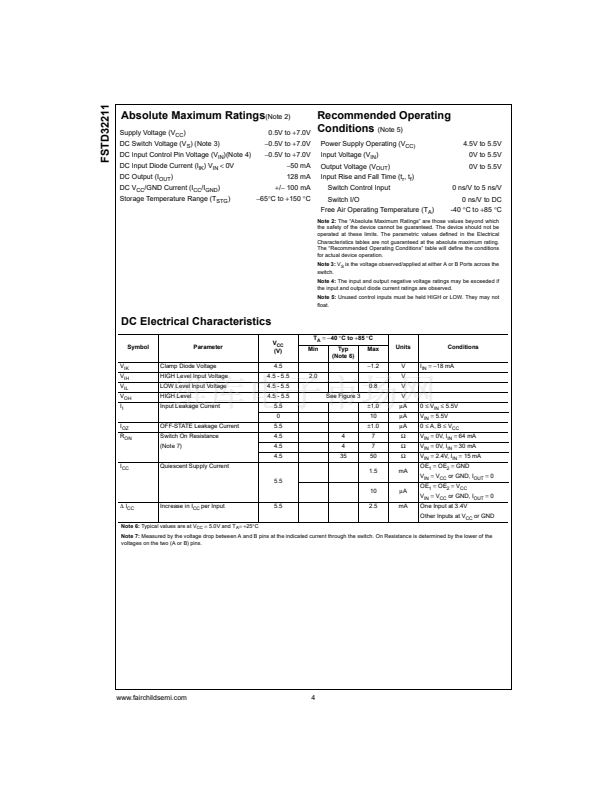

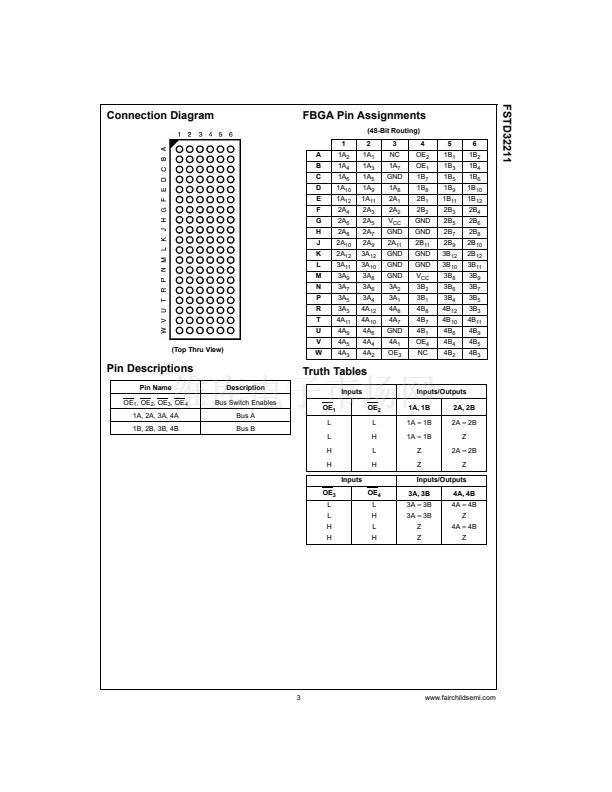

漏 2001 Fairchild Semiconductor Corporation
DS500378
www.fairchildsemi.com

FSTD32211GX 產品屬性

  • 2,500

  • 集成電路 (IC)

  • 邏輯 - 信號開關，多路復用器，解碼器

  • -

  • 總線開關

  • 12 x 1:1

  • 4

  • -

  • 單電源

  • 4.5 V ~ 5.5 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 114-LFBGA

  • 114-BGA

  • 帶卷 (TR)
