Solutions on a chip for enjoying the digital life style
Frame-It-1
TM
Video Deinterlacer
Intellectual Property Core
Product Brief
Zoran Corporation
3112 Scott Boulevard
Santa Clara, CA 95054-3317
T e l 408.919.4 1 1 1
Fax 408.919.4122
www.zoran.com
廬
Description
Zoran鈥檚 Frame-It-1 Video Deinterlacer is a silicon-efficient,
high-performance Intellectual Property Core for video IC designs
requiring progressive video output. Frame-It-1 is based on Zoran鈥檚
extensive experience delivering high quality, high volume video ICs
to major consumer products manufacturers worldwide. Frame-It-1
employs a robust motion detection and an intelligent interpolation
algorithm in a easily implemented, fully synchronous design. 3:2
pulldown, 2:2 pulldown, and bad edit detection enable superior dein-
terlacing of source material orginally from film.
Proven in silicon, the Frame-It-1 Video Deinterlacer greatly reduces
the risk and time involved when integrating the video deinterlacing
function into an IC. Expensive, discrete components can be elimi-
nated from system designs. Frame-It-1 is designed into Zoran's
Vaddis鈩?family of DVD decoders, which are in mass production and
are used in brand name consumer products worldwide.
VIP-II Demonstration System
The VIP-II is an FPGA demonstration system for Zoran's IP Core
products. The VIP-II accepts composite video, S-video and compo-
nent video inputs and with its user friendly GUI, enables customers
to thoroughly evaluate the performance of Zoran's IP Core products.
Features
鈥?"I to P" converter
鈥?Converts interlaced video to progressive output video
鈥?Robust motion detection based algorithm
鈥?Weaves still areas of the image
鈥?Advanced interpolation for moving areas of the image
鈥?3:2 and 2:2 pulldown detection for film modes
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Bad edit detection
Silicon efficient design
Requires only a single clock input from 20 to 30 MHz
Fully synchronous design
Process technology independent "softcore"
Integrated Circuit Applications
鈥?LCD controllers
鈥?LCD-TV
鈥?PDP-TV
鈥?Projector TV Systems
鈥?Progressive output CRT-TV
鈥?Any IC requiring progressive video output
Deliverables
鈥?Compilable Verilog source code
鈥?Bit-accurate, cycle-accurate C++ model
鈥?Synopsis synthesis scripts
鈥?Test input files
鈥?Documentation
鈥?VIP-II FPGA demonstration system available

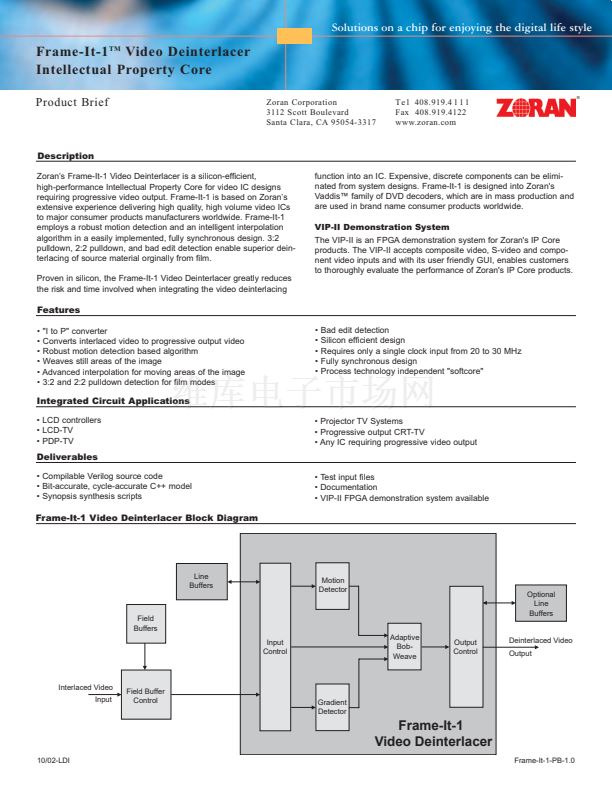

Frame-It-1 Video Deinterlacer Block Diagram
Line
Buffers
Motion
Detector
Field
Buffers
Input
Control
Adaptive
Bob-
Weave
Output
Control
Optional
Line
Buffers
Deinterlaced Video
Output
Interlaced Video
Input
Field Buffer
Control
Gradient
Detector
Frame-It-1
Video Deinterlacer

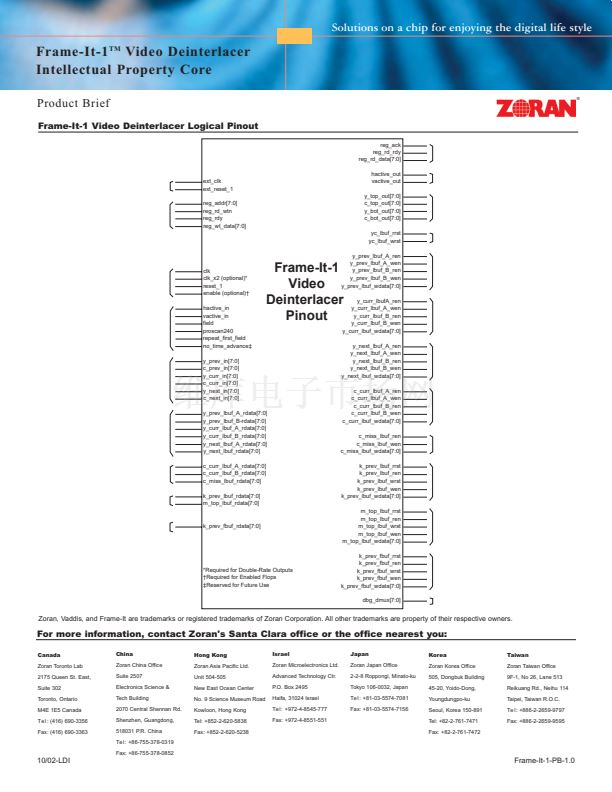

10/02-LDI
Frame-It-1-PB-1.0
