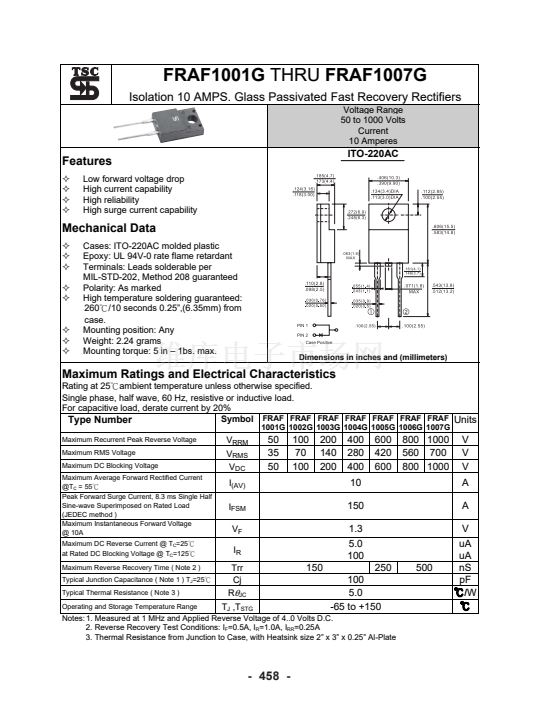

FRAF1001G
THRU
FRAF1007G
Isolation 10 AMPS. Glass Passivated Fast Recovery Rectifiers
Voltage Range
50 to 1000 Volts
Current
10 Amperes
Features
Low forward voltage drop
High current capability
High reliability
High surge current capability
.185(4.7)
.173(4.4)
.124(3.16)
.118(3.00)
ITO-220AC
.406(10.3)
.390(9.90)
.13 4(3. 4)D IA
. 11 3(3. 0)D IA
. 112 (2. 85)
. 100 (2.5 5)
.2 72( 6. 9)
.2 48( 6. 3)
Mechanical Data
Cases: ITO-220AC molded plastic
Epoxy: UL 94V-0 rate flame retardant
Terminals: Leads solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: As marked
High temperature soldering guaranteed:
260鈩?10 seconds 0.25鈥?(6.35mm) from
case.
Mounting position: Any
Weight: 2.24 grams
Mounting torque: 5 in 鈥?1bs. max.
.0 63 (1 .6 )
MA X
. 606(1 5.5 )
. 583(1 4.8 )
.161(4.1)
.146(3.7)
.110( 2.8)
.0 98(2 .5)
. 071 (1. 8)
MA X
. 543( 13. 8)
. 512( 13. 2)
2
PIN 1
PIN 2
Case Positive
. 10 0( 2 . 55)
. 100 (2.5 5)
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25鈩僡mbient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol
FRAF FRAF FRAF FRAF FRAF FRAF FRAF
Units
Type Number
1001G 1002G 1003G 1004G 1005G 1006G 1007G
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
@T
C
= 55鈩?/div>
Peak Forward Surge Current, 8.3 ms Single Half
Sine-wave Superimposed on Rated Load
(JEDEC method )
Maximum Instantaneous Forward Voltage
@ 10A
Maximum DC Reverse Current @ T
C
=25鈩?/div>
at Rated DC Blocking Voltage @ T
C
=125鈩?/div>
Maximum Reverse Recovery Time ( Note 2 )
Typical Junction Capacitance ( Note 1 ) T
J
=25鈩?/div>
Typical Thermal Resistance ( Note 3 )
Operating and Storage Temperature Range
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
Trr
Cj
R
胃
JC
T
J
,T
STG
50
35
50
100
70
100
200
140
200
400
280
400
10
150
1.3
5.0
100
600
420
600
800 1000
560 700
800 1000
V
V
V
A
A
V
uA
uA
nS
pF
鈩?W
鈩?/div>
150
250
100
5.0
-65 to +150
500
Notes: 1. Measured at 1 MHz and Applied Reverse Voltage of 4..0 Volts D.C.
2. Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
3. Thermal Resistance from Junction to Case, with Heatsink size 2鈥?x 3鈥?x 0.25鈥?Al-Plate
- 458 -
