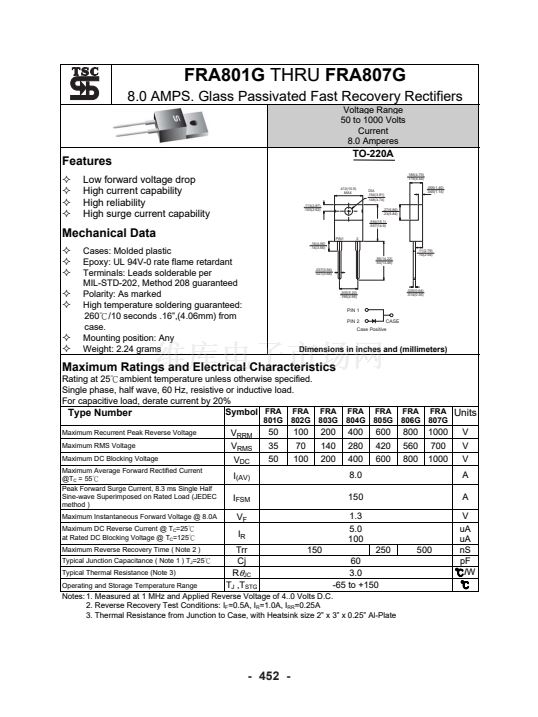

FRA801G
THRU
FRA807G
8.0 AMPS. Glass Passivated Fast Recovery Rectifiers
Voltage Range
50 to 1000 Volts
Current
8.0 Amperes
Features
Low forward voltage drop
High current capability
High reliability
High surge current capability
TO-220A
.185(4.70)
.175(4.44)
.412(10.5)
MAX
DIA
.154(3.91)
.148(3.74)
.27(6.86)
.23(5.84)
.594(15.1)
.587(14.9)
.055(1.40)
.045(1.14)
.113(2.87)
.103(2.62)
Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Terminals: Leads solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: As marked
High temperature soldering guaranteed:
260鈩?10 seconds .16鈥?(4.06mm) from
case.
Mounting position: Any
Weight: 2.24 grams
.16(4.06)
.14(3.56)
.037(0.94)
.027(0.68)
PIN1
2
.11(2.79)
.10(2.54)
.56(14.22)
.53(13.46)
.205(5.20)
.195(4.95)
.025(0.64)
.014(0.35)
PIN 1
PIN 2
CASE
Case Positive
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25鈩僡mbient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol
FRA FRA FRA
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
@T
C
= 55鈩?/div>
Peak Forward Surge Current, 8.3 ms Single Half
Sine-wave Superimposed on Rated Load (JEDEC
method )
Maximum Instantaneous Forward Voltage @ 8.0A
Maximum DC Reverse Current @ T
C
=25鈩?/div>
at Rated DC Blocking Voltage @ T
C
=125鈩?/div>
Maximum Reverse Recovery Time ( Note 2 )
Typical Junction Capacitance ( Note 1 ) T
J
=25鈩?/div>
Typical Thermal Resistance (Note 3)
Operating and Storage Temperature Range
FRA FRA FRA FRA
801G 802G 803G 804G 805G 806G 807G
Units
V
V
V
A
A
V
uA
uA
nS
pF
鈩?W
鈩?/div>
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
Trr
Cj
R
胃
JC
T
J
,T
STG
50
35
50
100
70
100
200
140
200
400
280
400
8.0
150
1.3
5.0
100
600
420
600
800
560
800
1000
700
1000
150
250
60
3.0
-65 to +150
500
Notes: 1. Measured at 1 MHz and Applied Reverse Voltage of 4..0 Volts D.C.
2. Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
3. Thermal Resistance from Junction to Case, with Heatsink size 2鈥?x 3鈥?x 0.25鈥?Al-Plate
- 452 -
