FQPF140N03L Datasheet

  • FQPF140N03L

  • TRANSISTOR | MOSFET | N-CHANNEL | 30V V(BR)DSS | 82A I(D) | ...

  • 588.44KB

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

FQPF140N03L
April 2000
QFET
FQPF140N03L
30V LOGIC N-Channel MOSFET
General Description
These N-Channel enhancement mode power field effect
transistors are produced using Fairchild鈥檚 proprietary,
planar stripe, DMOS technology.
This advanced technology has been especially tailored to
minimize on-state resistance, provide superior switching
performance, and withstand high energy pulse in the
avalanche and commutation mode. These devices are well
suited for low voltage applications such as DC/DC
converters, high efficiency switching for power
management in portable and battery operated products.
TM
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
82A, 30V, R
DS(on)
= 0.0045鈩?@V
GS
= 10 V
Low gate charge ( typical 73 nC)
Low Crss ( typical 580 pF)
Fast switching
100% avalanche tested
Improved dv/dt capability
175擄C maximum junction temperature rating
D
!
"
G
!
GD S
! "
"
"

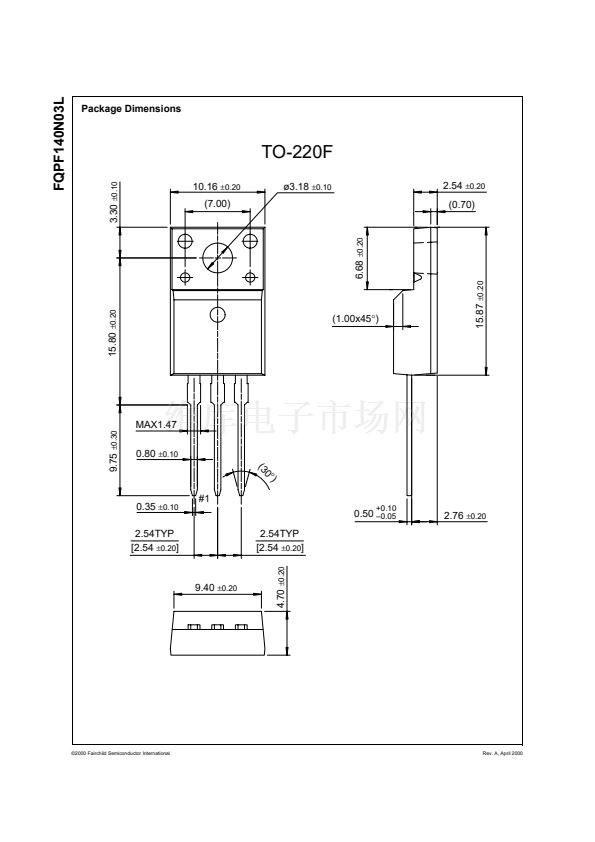

TO-220F
FQPF Series
!
S
Absolute Maximum Ratings

Symbol
V
DSS
I
D
I
DM
V
GSS
E
AS
I
AR
E
AR
dv/dt
P
D
T
J
, T
STG
T
L
T
C
= 25擄C unless otherwise noted
Parameter
Drain-Source Voltage
- Continuous (T
C
= 25擄C)
Drain Current
- Continuous (T
C
= 100擄C)
Drain Current
- Pulsed
(Note 1)
FQPF140N03L
30
82
58
330
鹵20
(Note 2)
(Note 1)
(Note 1)
(Note 3)
Units
V
A
A
A
V
mJ
A
mJ
V/ns
W
W/擄C
擄C
擄C
Gate-Source Voltage
Single Pulsed Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Power Dissipation (T
C
= 25擄C)
710
82
6.2
7.0
62
0.41
-55 to +175
300
- Derate above 25擄C
Operating and Storage Temperature Range
Maximum lead temperature for soldering purposes,
1/8 from case for 5 seconds
Thermal Characteristics
Symbol
R
胃JC
R
胃JA
Parameter
Thermal Resistance, Junction-to-Case
Thermal Resistance, Junction-to-Ambient
Typ
--
--
Max
2.42
62.5
Units
擄CW
擄CW
漏2000 Fairchild Semiconductor International
Rev. A, April 2000

FQPF140N03L 產品屬性

  • Fairchild Semiconductor

  • N-Channel

  • 30 V

  • +/- 20 V

  • 82 A

  • 0.0045 Ohms

  • Single

  • + 175 C

  • Through Hole

  • TO-220F

  • 250 ns

  • - 55 C

  • 62 W

  • 770 ns

  • 25 ns
