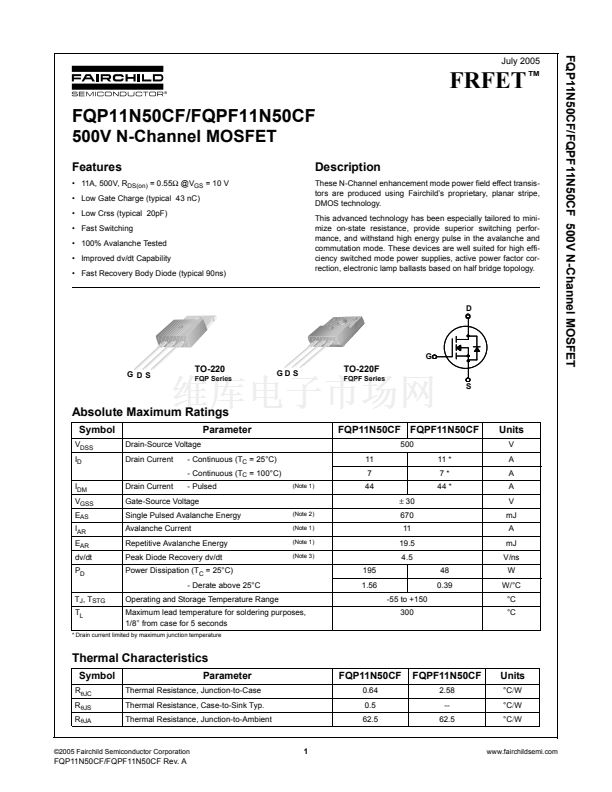

FQP11N50CF/FQPF11N50CF 500V N-Channel MOSFET
July 2005
FRFET
FQP11N50CF/FQPF11N50CF
500V N-Channel MOSFET
Features
鈥?11A, 500V, R
DS(on)
= 0.55鈩?@V
GS
= 10 V
鈥?Low Gate Charge (typical 43 nC)
鈥?Low Crss (typical 20pF)
鈥?Fast Switching
鈥?100% Avalanche Tested
鈥?Improved dv/dt Capability
鈥?Fast Recovery Body Diode (typical 90ns)
TM
Description
These N-Channel enhancement mode power field effect transis-
tors are produced using Fairchild鈥檚 proprietary, planar stripe,
DMOS technology.
This advanced technology has been especially tailored to mini-
mize on-state resistance, provide superior switching perfor-
mance, and withstand high energy pulse in the avalanche and
commutation mode. These devices are well suited for high effi-
ciency switched mode power supplies, active power factor cor-
rection, electronic lamp ballasts based on half bridge topology.
D
鈼?/div>
鈼€
G
G DS
鈻?/div>
鈼?/div>
鈼?/div>

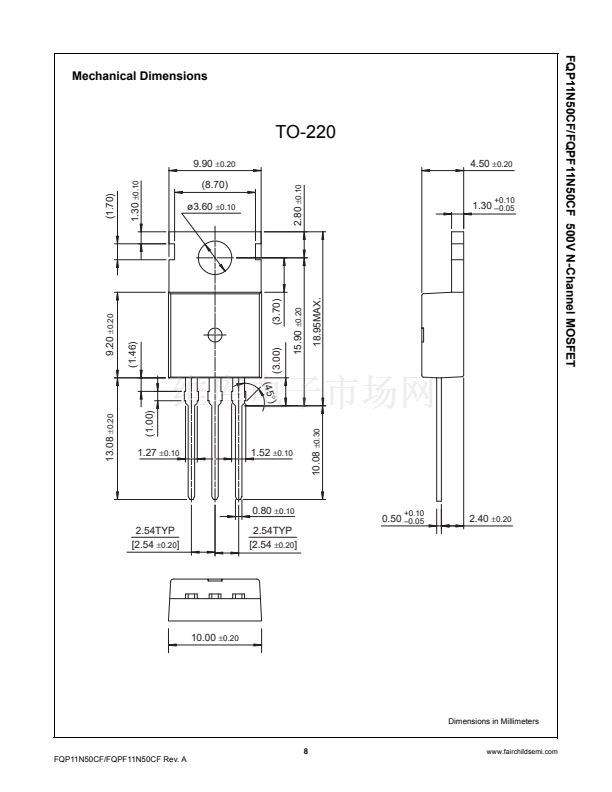

TO-220
FQP Series
GD S
TO-220F
FQPF Series
S
Absolute Maximum Ratings
Symbol
V
DSS
I
D
I
DM
V
GSS
E
AS
I
AR
E
AR
dv/dt
P
D
T
J
, T
STG
T
L
Drain-Source Voltage
Drain Current
Drain Current
- Continuous (T
C
= 25擄C)
- Continuous (T
C
= 100擄C)
- Pulsed
(Note 1)
Parameter
FQP11N50CF FQPF11N50CF
500
11
7
44
鹵
30
(Note 2)
(Note 1)
(Note 1)
(Note 3)
Units
V
A
A
A
V
mJ
A
mJ
V/ns
11 *
7*
44 *
670
11
19.5
4.5
Gate-Source Voltage
Single Pulsed Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Power Dissipation (T
C
= 25擄C)
- Derate above 25擄C
Operating and Storage Temperature Range
Maximum lead temperature for soldering purposes,
1/8" from case for 5 seconds
195
1.56
-55 to +150
300
48
0.39
W
W/擄C
擄C
擄C
* Drain current limited by maximum junction temperature
Thermal Characteristics
Symbol
R
胃JC
R
胃JS
R
胃JA
Parameter
Thermal Resistance, Junction-to-Case
Thermal Resistance, Case-to-Sink Typ.
Thermal Resistance, Junction-to-Ambient
FQP11N50CF
0.64
0.5
62.5
FQPF11N50CF
2.58
--
62.5
Units
擄C/W
擄C/W
擄C/W
漏2005 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
FQP11N50CF/FQPF11N50CF Rev. A
