FPF2005 Datasheet

  • FPF2005

  • IntelliMAX⑩ Advanced Load Management Products

  • 10頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

FPF2000-FPF2007 IntelliMAX鈩?Advanced Load Management Products
December 2004
FPF2000-FPF2007
IntelliMAX鈩?Advanced Load Management Products

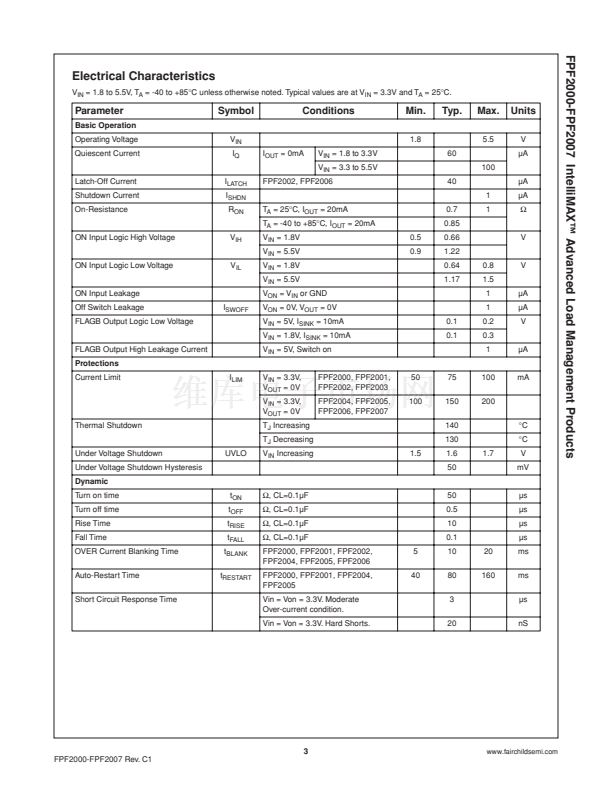

Features
鈻?/div>
1.8 to 5.5V Input Voltage Range
鈻?/div>

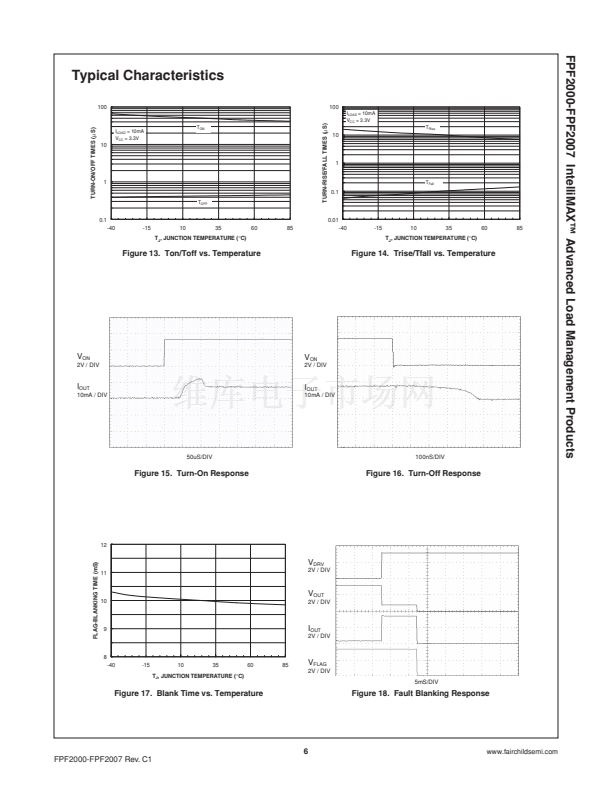

Controlled Turn-On
鈻?/div>
50mA and 100mA Current Limit Options
鈻?/div>
Under voltage Lockout
鈻?/div>
Thermal Shutdown
鈻?/div>
<1uA Shutdown Current
鈻?/div>
Auto Restart
鈻?/div>

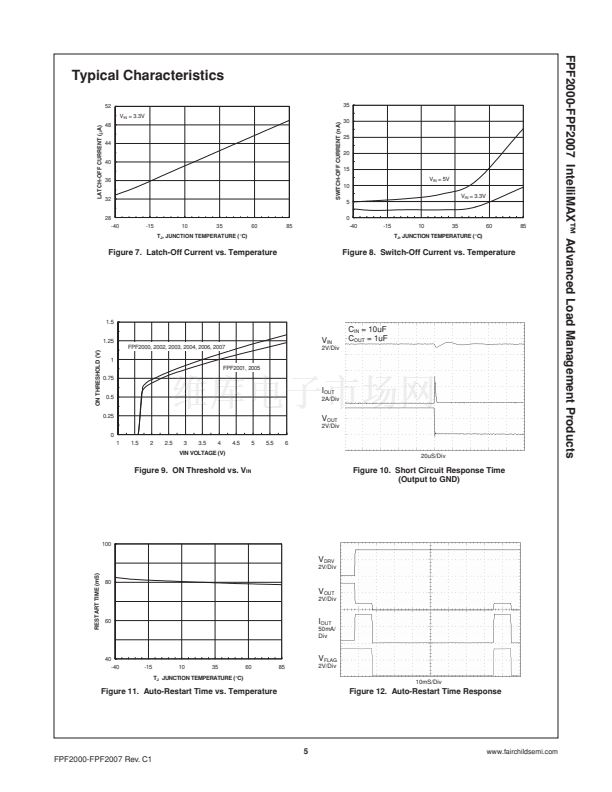

Fast Current limit Response Time
鈥?3us to Moderate Over Currents
鈥?20ns to Hard Shorts
鈻?/div>
Fault Blanking
General Description
The FPF2000 through FPF2007 is a family of load switches which
provide full protection to systems and loads which may encounter
large current conditions. These devices contain a 0.7
鈩?/div>
current-lim-
ited P-channel MOSFET which can operate over an input voltage
range of 1.8-5.5V. Switch control is by a logic input (ON) capable of
interfacing directly with low voltage control signals. Each part con-
tains thermal shutdown protection which shuts off the switch to pre-
vent damage to the part when a continuous over-current condition
causes excessive heating.

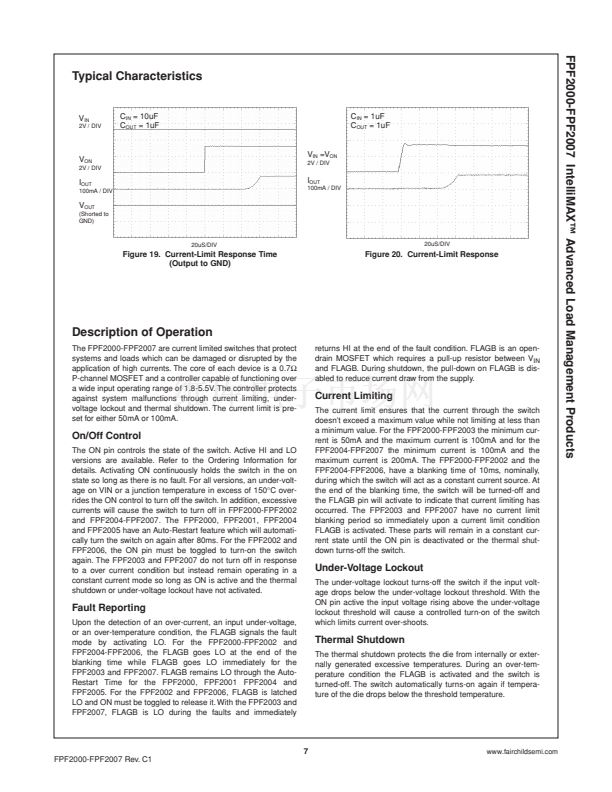

When the switch current reaches the current limit, the part oper-
ates in a constant-current mode to prohibit excessive currents from
causing damage. For the FPF2000-FPF2002 and FPF2004-
FPF2006, if the constant current condition still persists after 10ms,
these parts will shut off the switch and pull the fault signal pin
(FLAGB) low. The FPF2000, FPF2001, FPF2004 and FPF2005,
have an auto-restart feature which will turn the switch on again
after 80ms if the ON pin is still active. The FPF2002 and FPF2006
do not have this auto-restart feature so the switch will remain off
until the ON pin is cycled. For the FPF2003 and FPF2007, a cur-
rent limit condition will immediately pull the fault signal pin low and
the part will remain in the constant-current mode until the switch
current falls below the current limit. For the FPF2000 through
FPF2003, the minimum current limit is 50mA while that for the
FPF2004 through FPF2007 is 100mA.

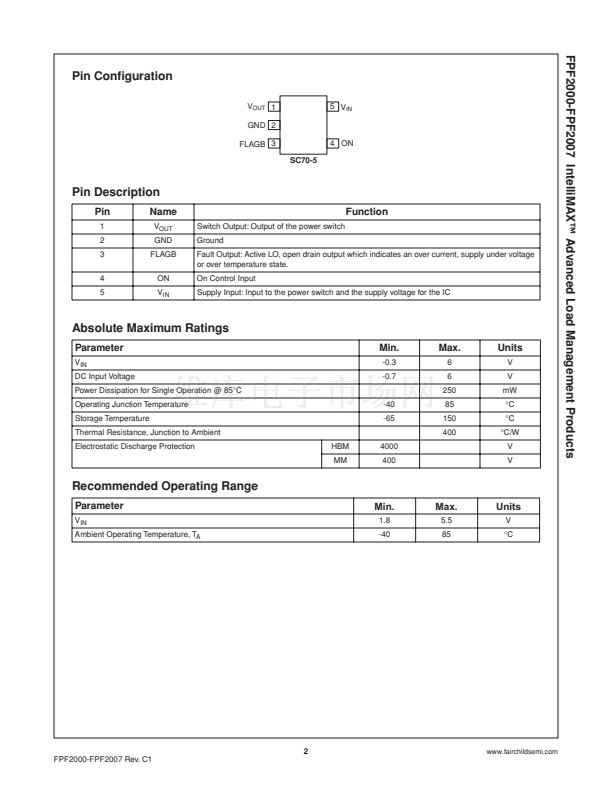

These parts are available in a space-saving 5 pin SC-70 package.
Applications
鈻?/div>
PDAs
鈻?/div>
Cell Phones
鈻?/div>
GPS Devices
鈻?/div>
MP3 Players
鈻?/div>
Digital Cameras
鈻?/div>
Peripheral Ports
鈻?/div>
Hot Swap Supplies
Functional Block Diagram
V
IN
UVLO
ON
CONTROL
LOGIC
CURRENT
LIMIT
THERMAL
SHUTDOWN
V
OUT
FLAGB
GND
漏2004 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
FPF2000-FPF2007 Rev. C1

FPF2005 產品屬性

  • 3,000

  • 集成電路 (IC)

  • PMIC - 電源分配開關

  • IntelliMax™

  • 高端開關

  • 1

  • 1 歐姆

  • 是

  • 100mA

  • 1.8 V ~ 5.5 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 6-TSSOP（5 引線），SC-88A，SOT-353

  • SC-70-5

  • 帶卷 (TR)

  • FPF2005TRFPF2005_NLFPF2005_NLTRFPF2005_NLTR-ND
