FMM1103VJ Datasheet

  • FMM1103VJ

  • The FMM1103VJ is a GaAs Microwave Static Frequency Divider d...

  • 4頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

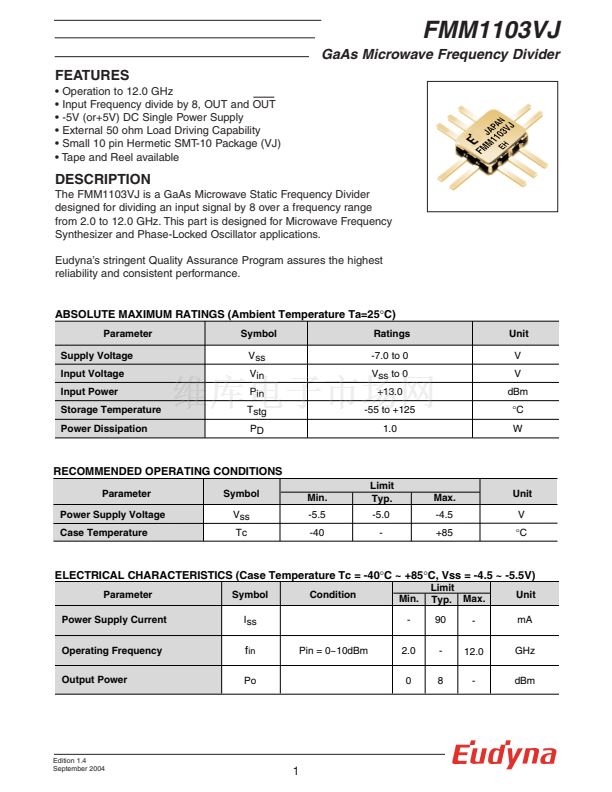

FMM1103VJ
GaAs Microwave Frequency Divider
FEATURES
鈥?Operation to 12.0 GHz
鈥?Input Frequency divide by 8, OUT and OUT
鈥?-5V (or+5V) DC Single Power Supply
鈥?External 50 ohm Load Driving Capability
鈥?Small 10 pin Hermetic SMT-10 Package (VJ)
鈥?Tape and Reel available
DESCRIPTION
The FMM1103VJ is a GaAs Microwave Static Frequency Divider
designed for dividing an input signal by 8 over a frequency range
from 2.0 to 12.0 GHz. This part is designed for Microwave Frequency
Synthesizer and Phase-Locked Oscillator applications.
Eudyna鈥檚 stringent Quality Assurance Program assures the highest
reliability and consistent performance.
ABSOLUTE MAXIMUM RATINGS (Ambient Temperature Ta=25擄C)
Parameter
Supply Voltage
Input Voltage
Input Power
Storage Temperature
Power Dissipation
Symbol
Vss
Vin
Pin
Tstg
PD
Ratings
-7.0 to 0
Vss to 0
+13.0
-55 to +125
1.0
Unit
V
V
dBm
擄C
W
RECOMMENDED OPERATING CONDITIONS
Parameter
Power Supply Voltage
Case Temperature
Symbol
Vss
Tc
Min.
-5.5
-40
Limit
Typ.
-5.0
-
Max.
-4.5
+85
Unit
V
擄C
ELECTRICAL CHARACTERISTICS (Case Temperature Tc = -40擄C ~ +85擄C, Vss = -4.5 ~ -5.5V)
Parameter
Power Supply Current
Operating Frequency
Output Power
Symbol
Iss
Condition
Min.
-
Pin = 0~10dBm
2.0
0
Limit
Typ. Max.
90
-
8
-
12.0
-
Unit
mA
GHz
dBm
f
in
Po
Edition 1.4
September 2004
1
