FORMOSA
MICROSEMI CO., LTD.
Formosa MS
Spec. No. : FMSC001
Issued Date : 2002/12/13
Revised Date : 2002/12/25
Page No. : 1/3
FMBT3906
PNP EPITAXIAL PLANAR TRANSISTOR
Description
The FMBT3906 is designed for general purpose switching and
amplifier applications.
Absolute Maximum Ratings

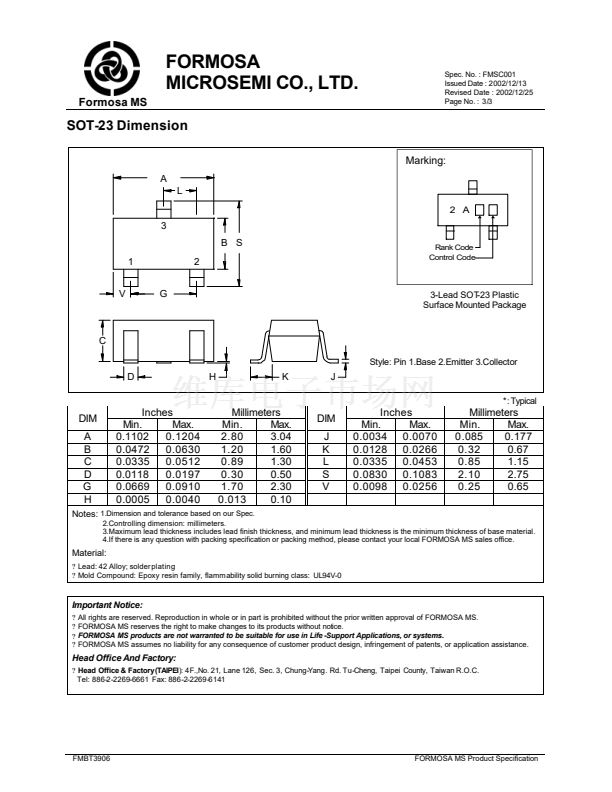

SOT-23
?
Maximum Temperatures
Storage Temperature ....................................................................................................... -55 ~ +150
?
C
Junction Temperature ................................................................................................................ +150
?
C
?
Maximum Power Dissipation
Total Power Dissipation (Ta=25
?
C)......................................................................................... 225 mW
?
Maximum Voltages and Currents (Ta=25
?
C)
VCBO Collector to Base Voltage ................................................................................................... -40 V
VCEO Collector to Emitter Voltage ............................................................................................... -40 V
VEBO Emitter to Base Voltage ........................................................................................................ -5 V
IC Collector Current ................................................................................................................... -200 mA
Characteristics
(Ta=25?C)
Symbol
BVCBO
BVCEO
BVEBO
ICEX
*VCE(sat)1
*VCE(sat)2
*VBE(sat)1
*VBE(sat)2
*hFE1
*hFE2
*hFE3
*hFE4
*hFE5
fT
Cob
Min.
-40
-40
-5
-
-
-
-0.65
-
60
80
100
60
30
250
-
Typ.
-
-
-
-
-
-0.2
-
-0.84
-
-
-
-
-
-
-
Max.
-
-
-
-50
-0.25
-0.4
-0.85
-0.95
-
-
300
-
-
-
4.5
Unit
V
V
V
nA
V
V
V
V
Test Conditions
IC=-10uA
IC=-1mA
IC=-10uA
VCE=-30V, VBE=-3V
IC=-10mA, IB=-1mA
IC=-50mA, IB=-5mA
IC=-10mA, IB=-1mA
IC=-50mA, IB=-5mA
VCE=-1V, IC=-0.1mA
VCE=-1V, IC=-1mA
VCE=-1V, IC=-10mA
VCE=-1V, IC=-50mA
VCE=-1V, IC=-100mA
VCE=-20V, IC=-10mA, f=100MHz
VCB=-5V, f=1MHz
*Pulse Test: Pulse Width
?380us,
Duty Cycle? 2%
MHz
pF
FMBT3906
FORMOSA MS Product Specification
1
2
3
