FIN24A Datasheet

  • FIN24A

  • Low Voltage 24-Bit Bi-Directional Serializer/Deserializer wi...

  • 20頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

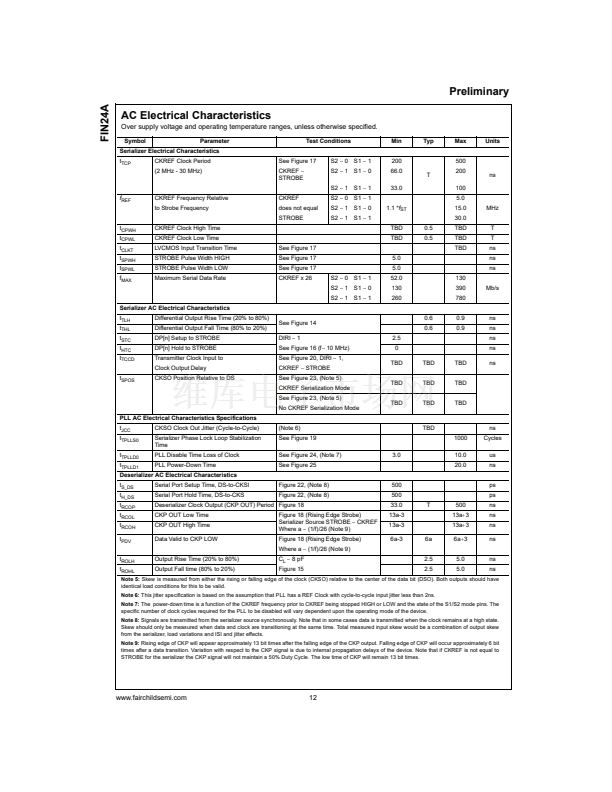

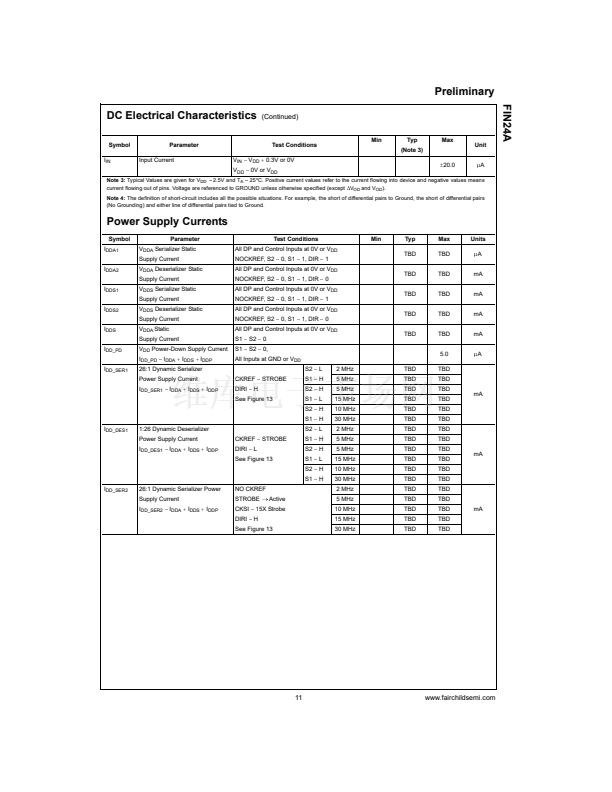

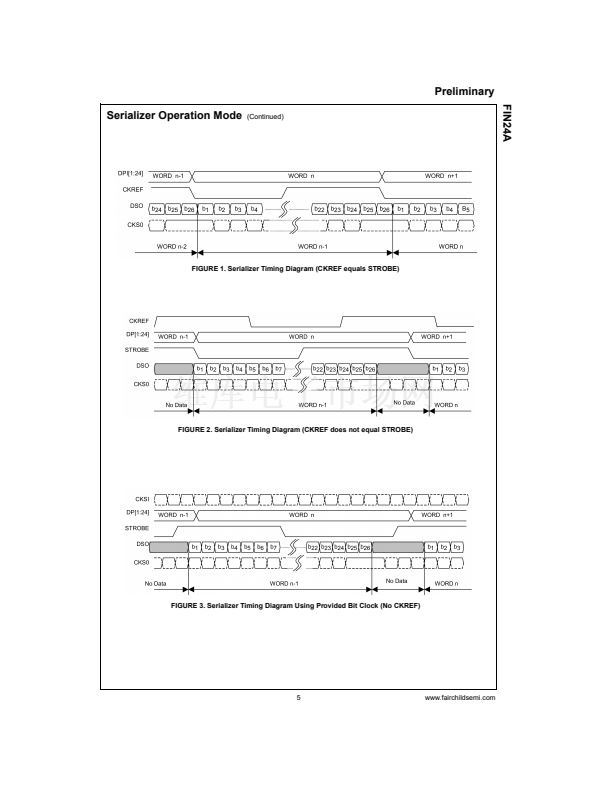

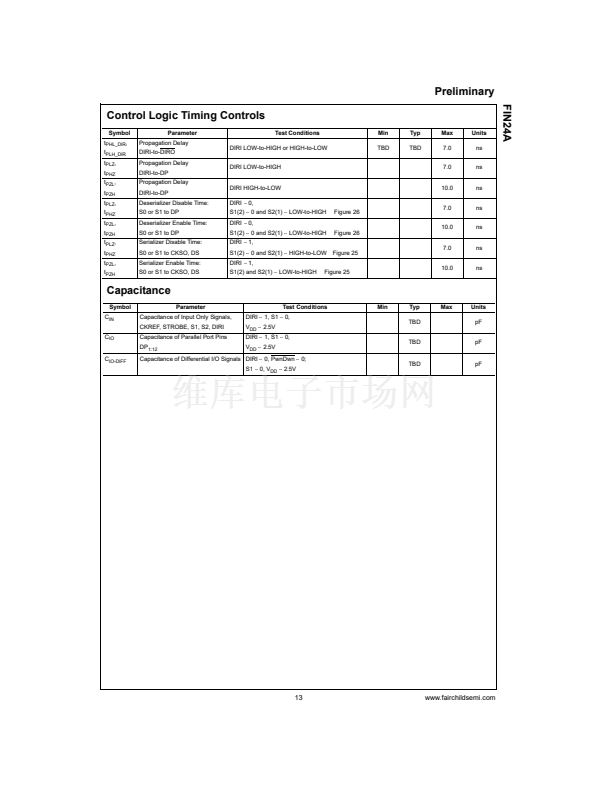

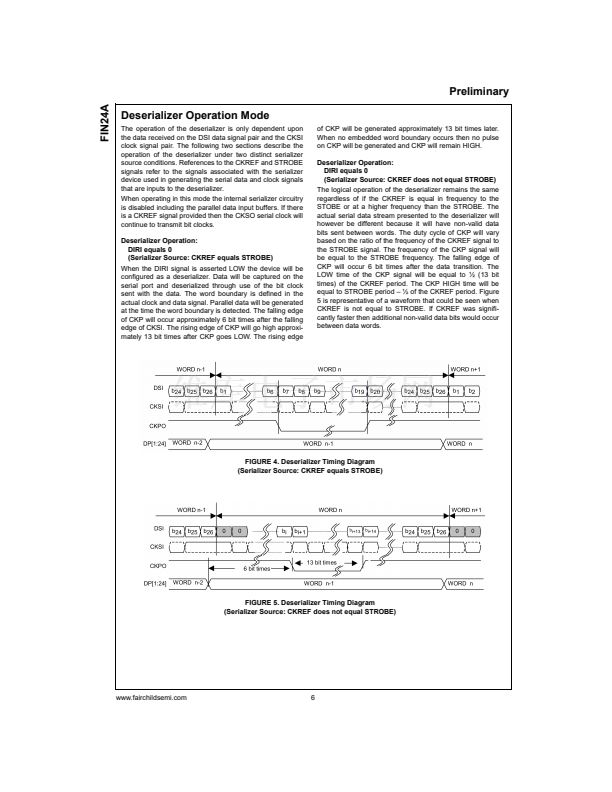

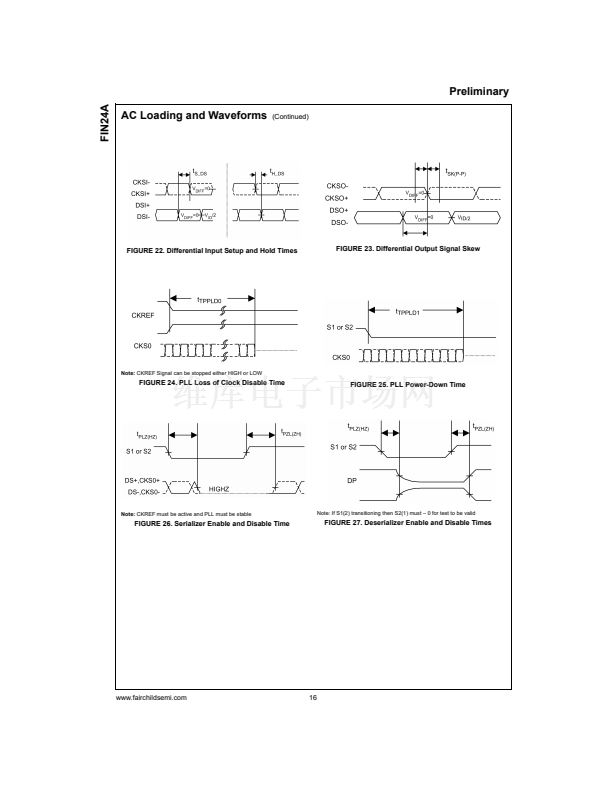

PDF預覽

Preliminary
FIN24A
PSerDes
Low Voltage 24-Bit Bi-Directional Serializer/Deserializer with Multiple Frequency Ranges
(Preliminary)
April 2005
Revised May 2005
FIN24A
PSerDes
Low Voltage 24-Bit Bi-Directional Serializer/Deserializer
with Multiple Frequency Ranges (Preliminary)

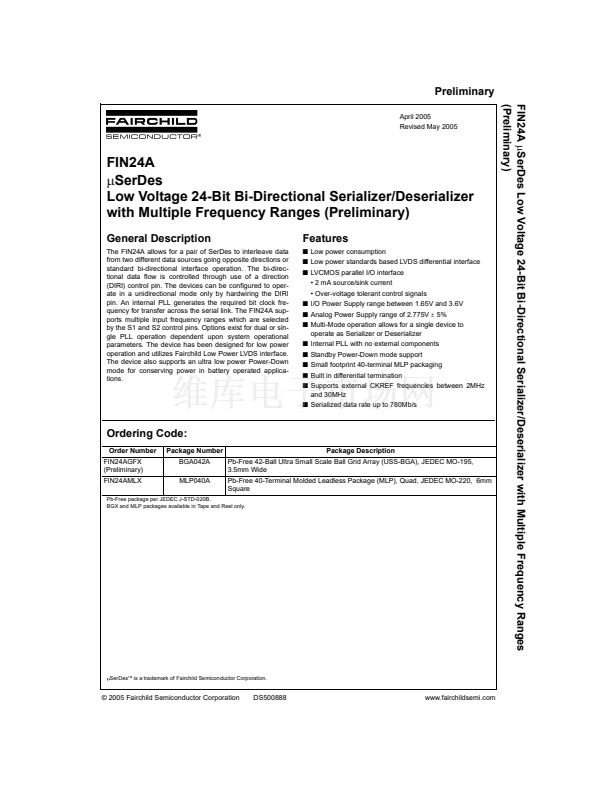

General Description
The FIN24A allows for a pair of SerDes to interleave data
from two different data sources going opposite directions or
standard bi-directional interface operation. The bi-direc-
tional data flow is controlled through use of a direction
(DIRI) control pin. The devices can be configured to oper-
ate in a unidirectional mode only by hardwiring the DIRI
pin. An internal PLL generates the required bit clock fre-
quency for transfer across the serial link. The FIN24A sup-
ports multiple input frequency ranges which are selected
by the S1 and S2 control pins. Options exist for dual or sin-
gle PLL operation dependent upon system operational
parameters. The device has been designed for low power
operation and utilizes Fairchild Low Power LVDS interface.
The device also supports an ultra low power Power-Down
mode for conserving power in battery operated applica-
tions.
Features
s
Low power consumption
s
Low power standards based LVDS differential interface
s
LVCMOS parallel I/O interface
鈥?2 mA source/sink current
鈥?Over-voltage tolerant control signals
s
I/O Power Supply range between 1.65V and 3.6V
s
Analog Power Supply range of 2.775V
r
5%
s
Multi-Mode operation allows for a single device to
operate as Serializer or Deserializer
s
Internal PLL with no external components
s
Standby Power-Down mode support
s
Small footprint 40-terminal MLP packaging
s
Built in differential termination
s
Supports external CKREF frequencies between 2MHz
and 30MHz
s
Serialized data rate up to 780Mb/s
Ordering Code:
Order Number
FIN24AGFX
(Preliminary)
FIN24AMLX
Package Number
BGA042A
MLP040A
Package Description

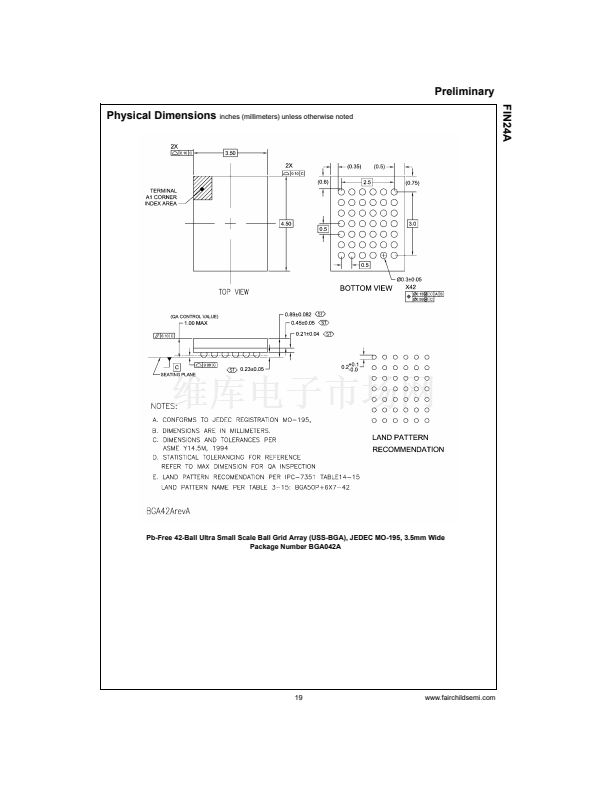

Pb-Free 42-Ball Ultra Small Scale Ball Grid Array (USS-BGA), JEDEC MO-195,
3.5mm Wide

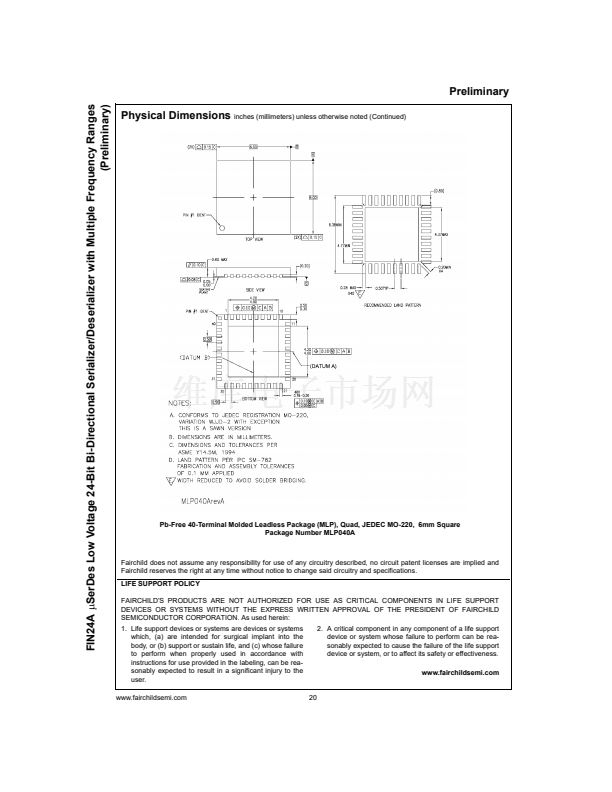

Pb-Free 40-Terminal Molded Leadless Package (MLP), Quad, JEDEC MO-220, 6mm
Square
Pb-Free package per JEDEC J-STD-020B.

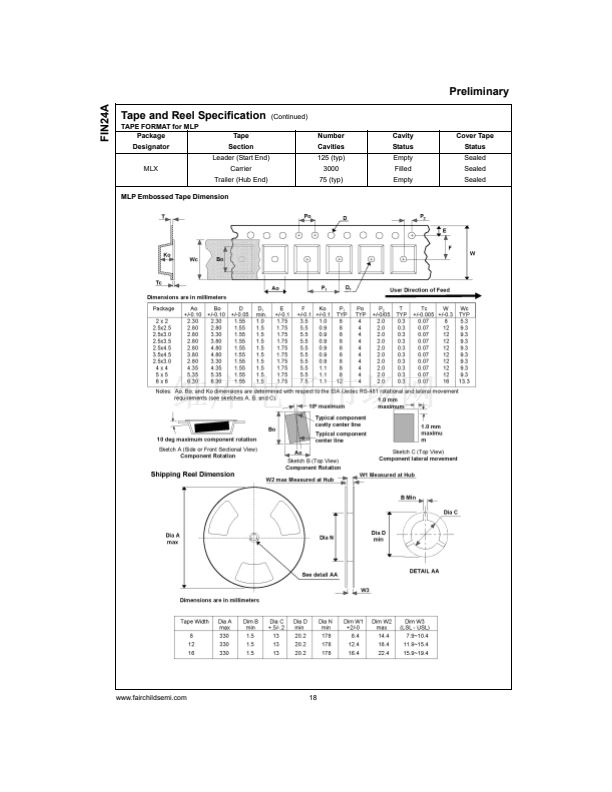

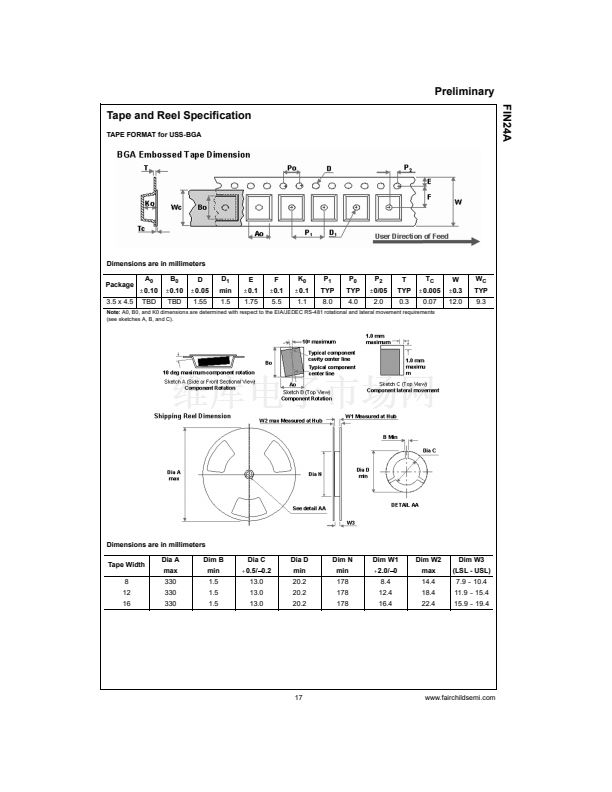

BGX and MLP packages available in Tape and Reel only.
P
SerDes
樓
is a trademark of Fairchild Semiconductor Corporation.
漏 2005 Fairchild Semiconductor Corporation
DS500888
www.fairchildsemi.com
