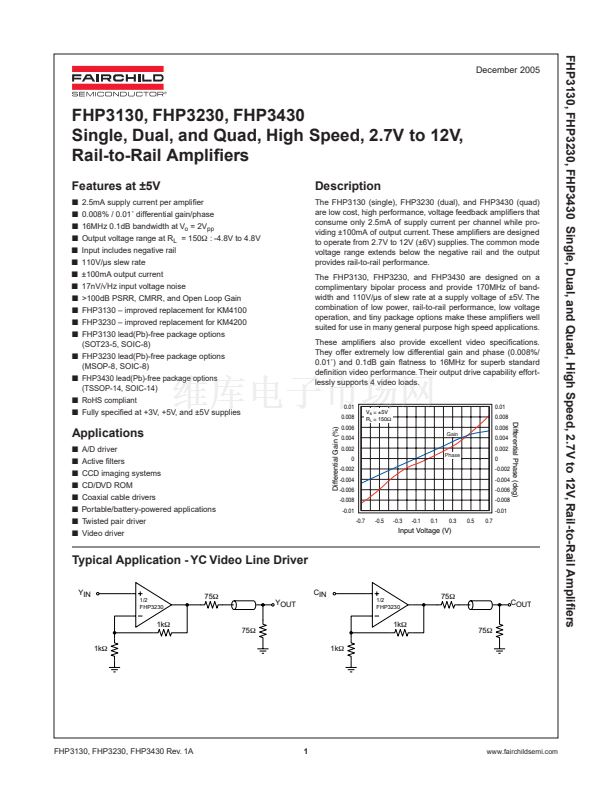

FHP3130, FHP3230, FHP3430 Single, Dual, and Quad, High Speed, 2.7V to 12V, Rail-to-Rail Ampli鏗乪rs
December 2005
FHP3130, FHP3230, FHP3430
Single, Dual, and Quad, High Speed, 2.7V to 12V,
Rail-to-Rail Ampli鏗乪rs
Features at 鹵5V
鈻?/div>
2.5mA supply current per ampli鏗乪r
鈻?/div>
0.008% / 0.01藲 differential gain/phase
鈻?/div>
16MHz 0.1dB bandwidth at V
o
= 2V
pp
鈻?/div>
Output voltage range at R
L
= 150
鈩?/div>
: -4.8V to 4.8V
鈻?/div>
Input includes negative rail
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
110V/碌s slew rate
鹵100mA output current
17nV/
鈭?/div>
Hz input voltage noise
>100dB PSRR, CMRR, and Open Loop Gain
FHP3130 鈥?improved replacement for KM4100
Description
The FHP3130 (single), FHP3230 (dual), and FHP3430 (quad)
are low cost, high performance, voltage feedback ampli鏗乪rs that
consume only 2.5mA of supply current per channel while pro-
viding 鹵100mA of output current. These ampli鏗乪rs are designed
to operate from 2.7V to 12V (鹵6V) supplies. The common mode
voltage range extends below the negative rail and the output
provides rail-to-rail performance.
The FHP3130, FHP3230, and FHP3430 are designed on a
complimentary bipolar process and provide 170MHz of band-
width and 110V/碌s of slew rate at a supply voltage of 鹵5V. The
combination of low power, rail-to-rail performance, low voltage
operation, and tiny package options make these ampli鏗乪rs well
suited for use in many general purpose high speed applications.
These ampli鏗乪rs also provide excellent video speci鏗乧ations.
They offer extremely low differential gain and phase (0.008%/
0.01藲) and 0.1dB gain 鏗俛tness to 16MHz for superb standard
de鏗乶ition video performance. Their output drive capability effort-
lessly supports 4 video loads.
0.01
0.008
0.01
0.008
鈻?/div>
FHP3230 鈥?improved replacement for KM4200
鈻?/div>
FHP3130 lead(Pb)-free package options
(SOT23-5, SOIC-8)
鈻?/div>
FHP3230 lead(Pb)-free package options
(MSOP-8, SOIC-8)
鈻?/div>
FHP3430 lead(Pb)-free package options
(TSSOP-14, SOIC-14)
鈻?/div>
RoHS compliant
鈻?/div>
Fully speci鏗乪d at +3V, +5V, and 鹵5V supplies
V
s
= 鹵5V
R
L
= 150鈩?/div>
Gain
Differential Phase (deg)
Applications
鈻?/div>
A/D driver
鈻?/div>
Active 鏗乴ters
鈻?/div>
CCD imaging systems
鈻?/div>
CD/DVD ROM
鈻?/div>
Coaxial cable drivers
鈻?/div>
Portable/battery-powered applications
鈻?/div>
Twisted pair driver
鈻?/div>
Video driver
Differential Gain (%)
0.006
0.004
0.002
0
-0.002
-0.004
-0.006
-0.008
-0.01
-0.7
-0.5
-0.3
-0.1
0.1
0.3
0.5
0.7
Phase
0.006
0.004
0.002
0
-0.002
-0.004
-0.006
-0.008
-0.01
Input Voltage (V)
Typical Application - YC Video Line Driver
YIN
75鈩?/div>
CIN
YOUT
75鈩?/div>
1/2
FHP3230
1/2
FHP3230
COUT
1k鈩?/div>
1k鈩?/div>
75鈩?/div>
1k鈩?/div>
1k鈩?/div>
75鈩?/div>
FHP3130, FHP3230, FHP3430 Rev. 1A
1
www.fairchildsemi.com
