FH17LR-30S-0.5SH Datasheet

  • FH17LR-30S-0.5SH

  • Low Profile 0.5mm Pitch Connectors For FPC

  • 345.67KB

  • 13頁

  • HRS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Low Profile 0.5mm Pitch Connectors For FPC
FH17 Series
FH17 (on-board type) flip-lock mechanism

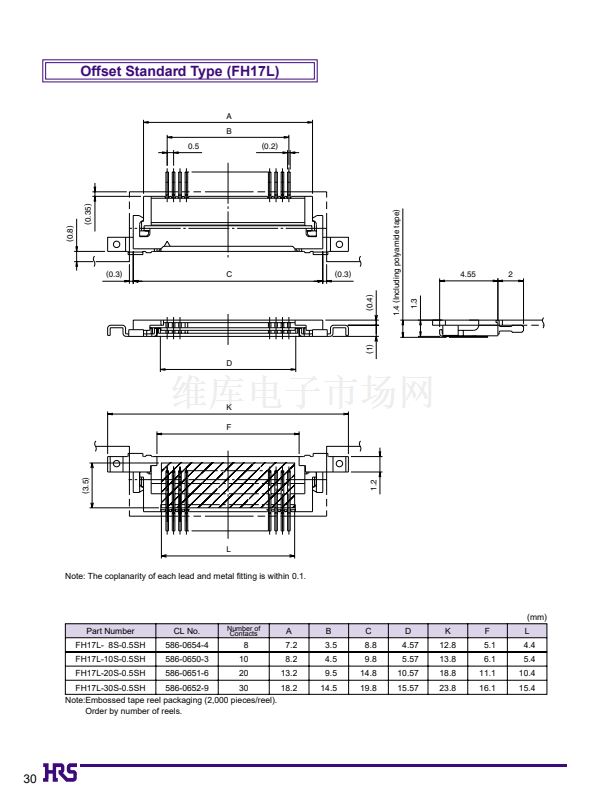

FH17L(board drop-in standard type)flip-lock mechanism

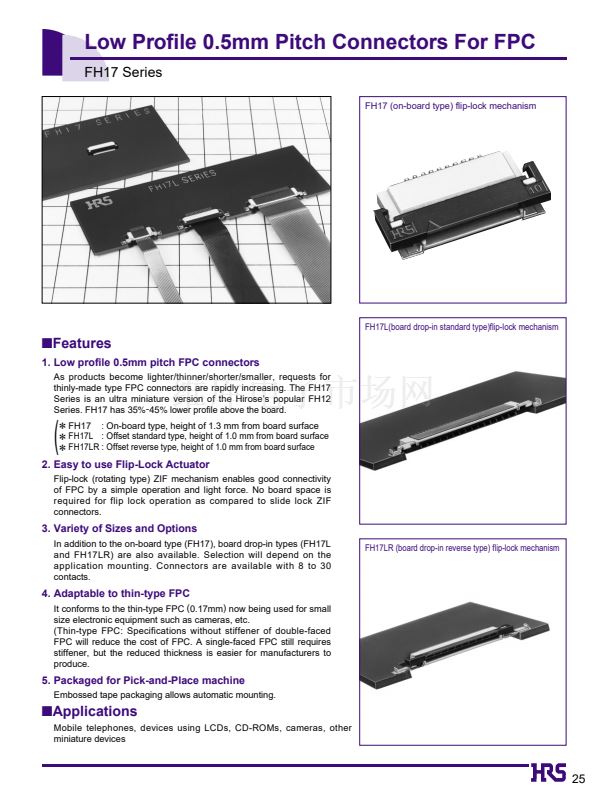

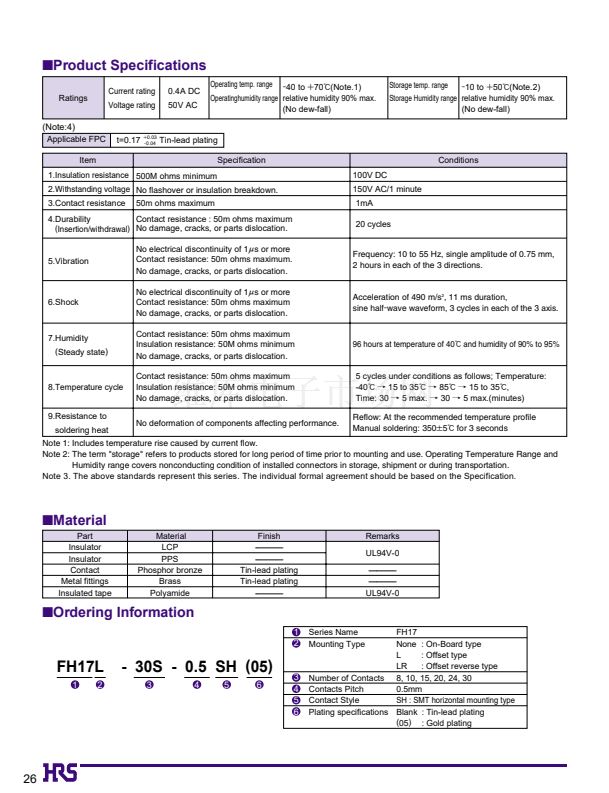

sFeatures
1. Low profile 0.5mm pitch FPC connectors
As products become lighter/thinner/shorter/smaller, requests for
thinly-made type FPC connectors are rapidly increasing. The FH17
Series is an ultra miniature version of the Hirose鈥檚 popular FH12
Series. FH17 has 35%-45% lower profile above the board.
(
*

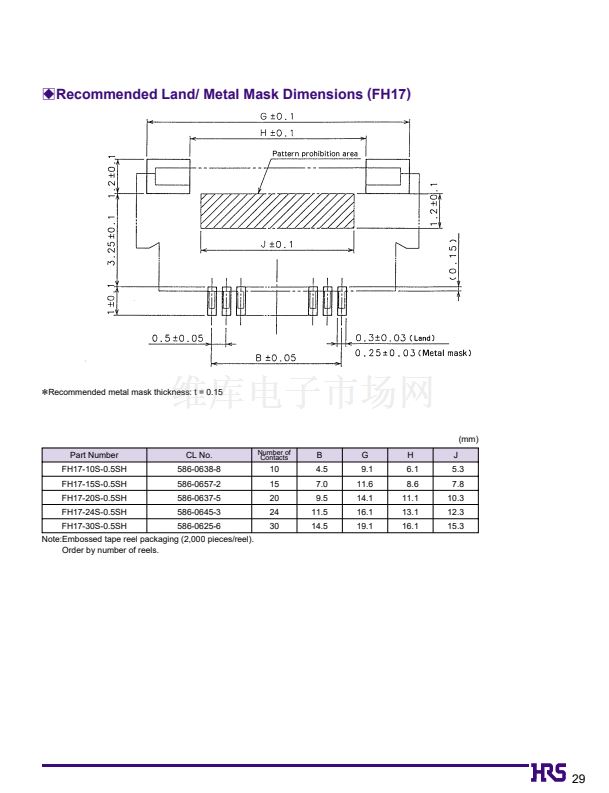

FH17 : On-board type, height of 1.3 mm from board surface
*
FH17L : Offset standard type, height of 1.0 mm from board surface
*

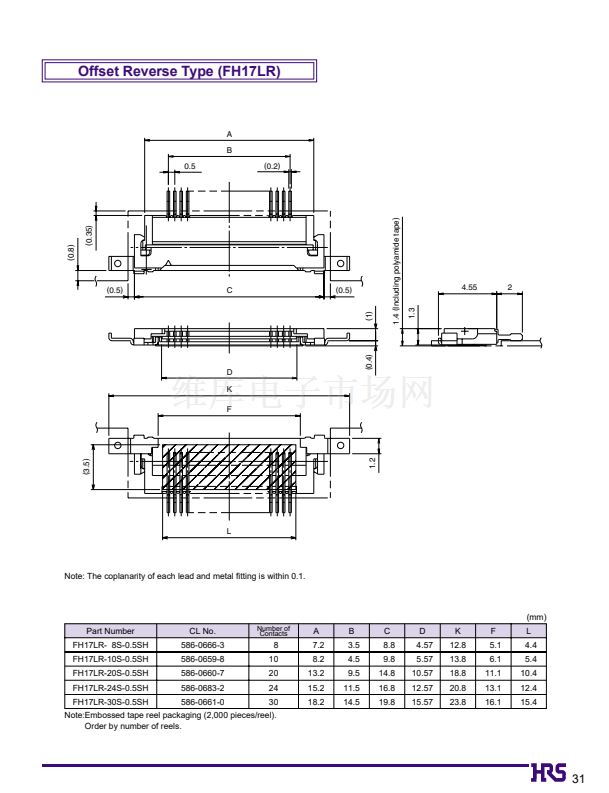

FH17LR : Offset reverse type, height of 1.0 mm from board surface

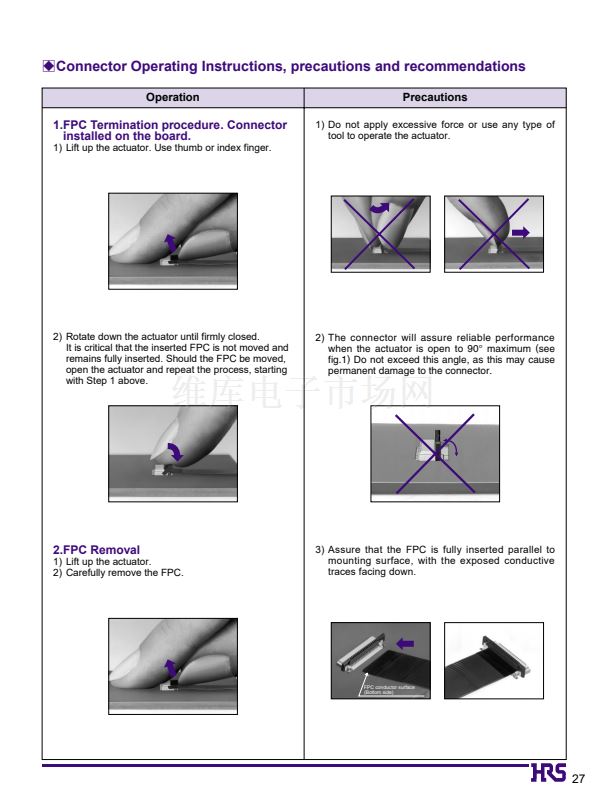

2. Easy to use Flip-Lock Actuator
Flip-lock (rotating type) ZIF mechanism enables good connectivity
of FPC by a simple operation and light force. No board space is
required for flip lock operation as compared to slide lock ZIF
connectors.
3. Variety of Sizes and Options
In addition to the on-board type (FH17), board drop-in types (FH17L
and FH17LR) are also available. Selection will depend on the
application mounting. Connectors are available with 8 to 30
contacts.
FH17LR (board drop-in reverse type) flip-lock mechanism

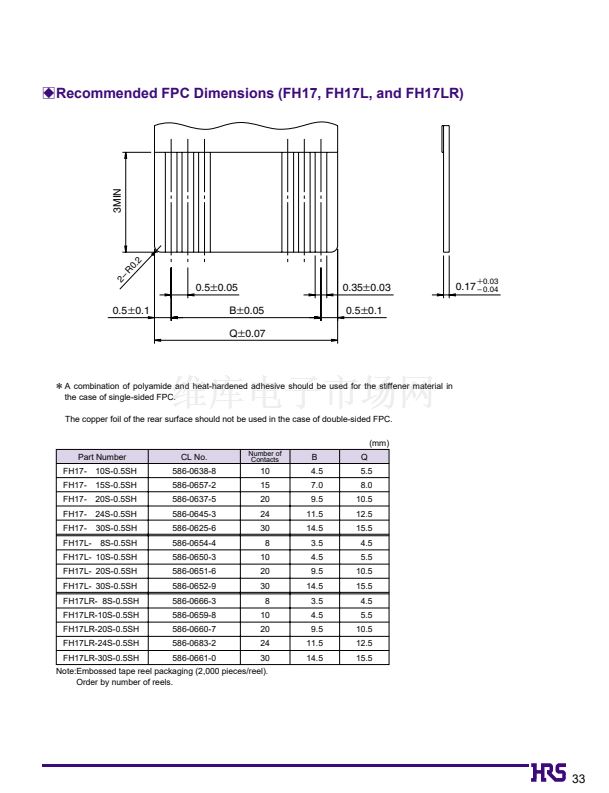

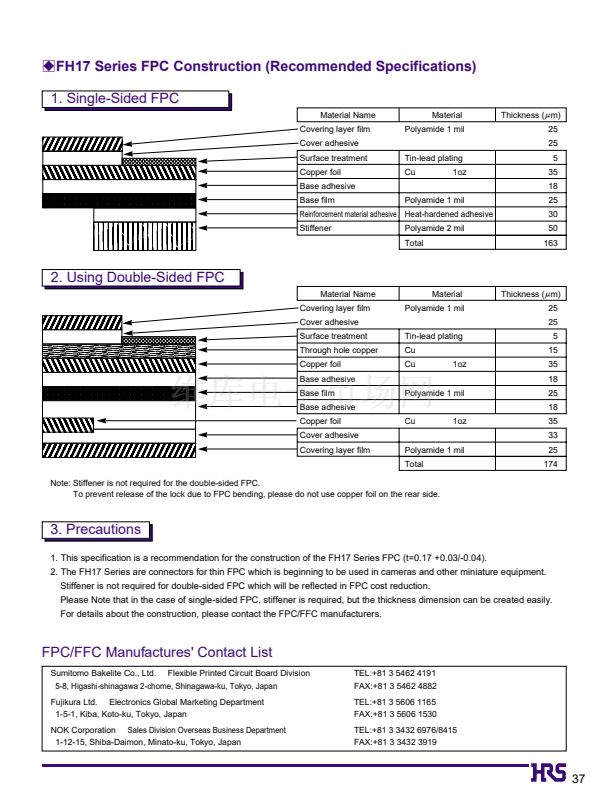

4. Adaptable to thin-type FPC
It conforms to the thin-type FPC (0.17mm) now being used for small
size electronic equipment such as cameras, etc.
(Thin-type FPC: Specifications without stiffener of double-faced
FPC will reduce the cost of FPC. A single-faced FPC still requires
stiffener, but the reduced thickness is easier for manufacturers to
produce.

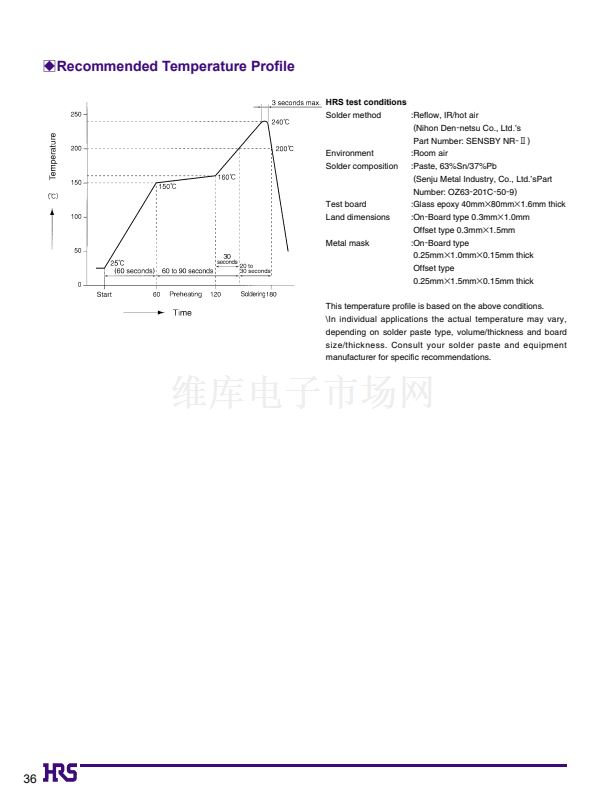

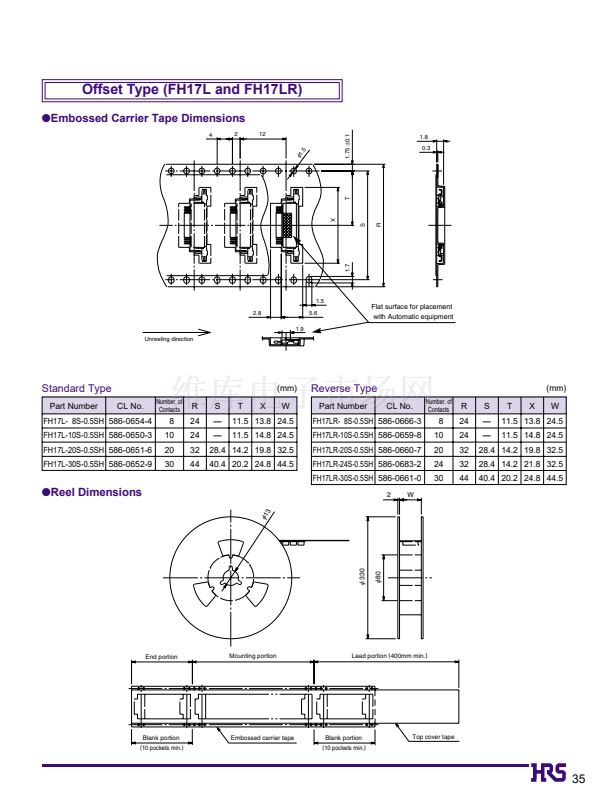

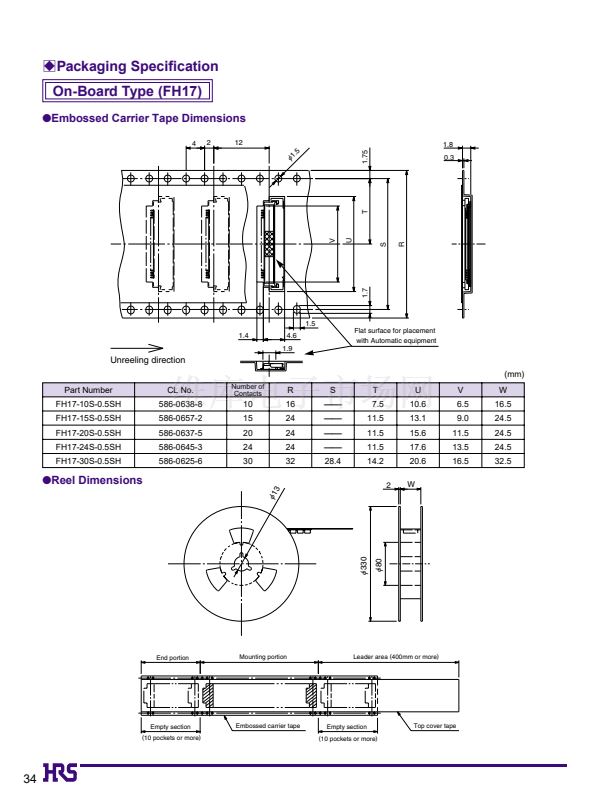

5. Packaged for Pick-and-Place machine
Embossed tape packaging allows automatic mounting.
sApplications
Mobile telephones, devices using LCDs, CD-ROMs, cameras, other
miniature devices
