FH16P-64S-0.5SHW Datasheet

  • FH16P-64S-0.5SHW

  • High Density FPC Connector (0.3mm/0.4mm/0.5mm Pitch)

  • 8頁

  • HRS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

High Density FPC Connector (0.3mm/0.4mm/0.5mm Pitch)
FH16 Series
FH16 Series Variation
0.3mm pitch 60 contact
0.3mm pitch 80 contact
0.3mm pitch 90 contact
0.4mm pitch 80 contact
0.5mm pitch 50 contact
0.5mm pitch 64 contact
sFeatures
1. High Density FPC Connector
[Conventional product (FH12 series)]
0.5mm pitch 30 contact
The FH16 series is a fine pitch, zero insertion force (ZIF), right angle, bottom
contact, connector compatible with flexible printed circuits (FPC) with a pitch
of 0.3mm, 0.4mm, and 0.5mm and a recommended thickness of 0.295mm for
single-sided or 0.306mm for double-sided. The FH16 provides a higher pin
Excellent Serviceability with Flip-Lock Design
count given the same amount of board space than other manufacturers of
similar product. With a large selection in pin density, the FH16 series greatly
improves design flexibility.
FH16 : 0.3mm pitch 60, 80, and 90 contacts
Flip-lock type
FH16M : 0.4mm pitch 80 and 96 contacts
FH16H : 0.5mm pitch 50 contacts
FH16P : 0.5mm pitch 64 contacts
2. Easy mounting on PCB
FH16 supports 0.3mm pitch cable but only requires a 0.6mm pitch pad
layout on the PCB. The FH16鈥檚 staggered pin design allows the
mounting lead area to be twice as wide as the FPC contact area making
it easier to place the connector on the board given the fine pitch of the
contacts.
3. User Friendly Flip-Lock Design
The flip-lock (one-touch rotating type) ZIF structure secures the FPC
connection with a single and light force. This design helps simplify
assembly and repair work. When locking the FPC, the audible click
assures the assembly worker of a steady FPC connection resulting in
improved customer service.
Mechanism to prevent
FPC from escape and oblique
mating
4. Prevents FPC from escape and oblique mating
The FH16 series with its recommended FPC dimensions prevents the
FPC from escape and oblique mating thereby securing a steady
connection.
5. Compatible with Automatic Assembly Tooling
Embossed tape packaging allows for automatic placement onto the PCB.
sApplications
Notebook computers, printers, PDAs, digital cameras and other compact devices for interconnecting the main circuit board with the
LCD,PDP(Plasma Display),HDD or other device.
Hard
Disk-Drive
PCB
PCB
Notebook PC
HDD
PDP
PCB
66

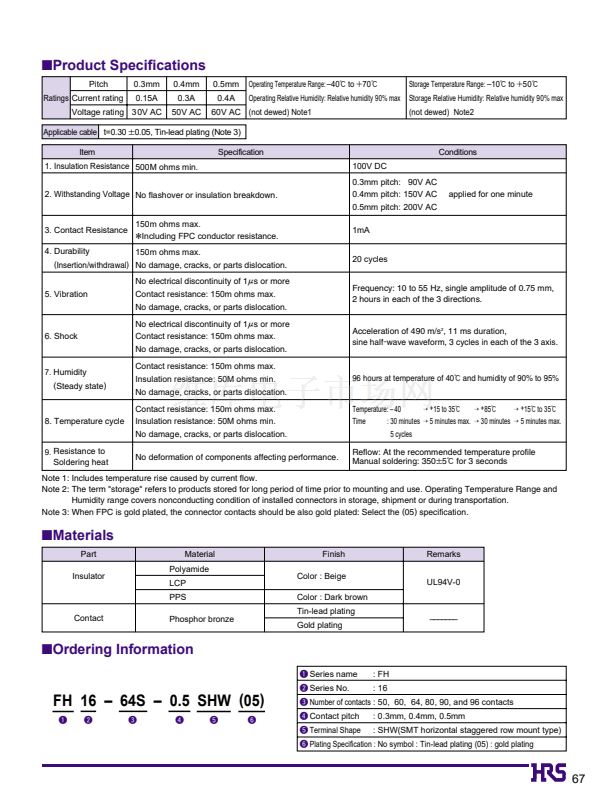

FH16P-64S-0.5SHW 產品屬性

  • 1,000

  • 連接器，互連式

  • FFC，F(xiàn)PC（扁平軟線）- 連接器 - 面板安裝

  • FH16

  • 底部觸點

  • 64

  • 0.020"（0.50mm）

  • 0.30mm

  • 0.118"（3.00mm）

  • 表面貼裝，直角

  • 焊片式

  • 焊接

  • 觸發鎖

  • 零插入力（ZIF）

  • 帶卷 (TR)

  • 錫 - 鉛

  • -

  • -40°C ~ 70°C

  • 0.400A

  • 60V

  • 聚酰胺（PA），尼龍

  • HFP064TR
