FDS7088SN3
August 2004
FDS7088SN3
30V N-Channel PowerTrench
餂?/div>
SyncFET
鈩?/div>

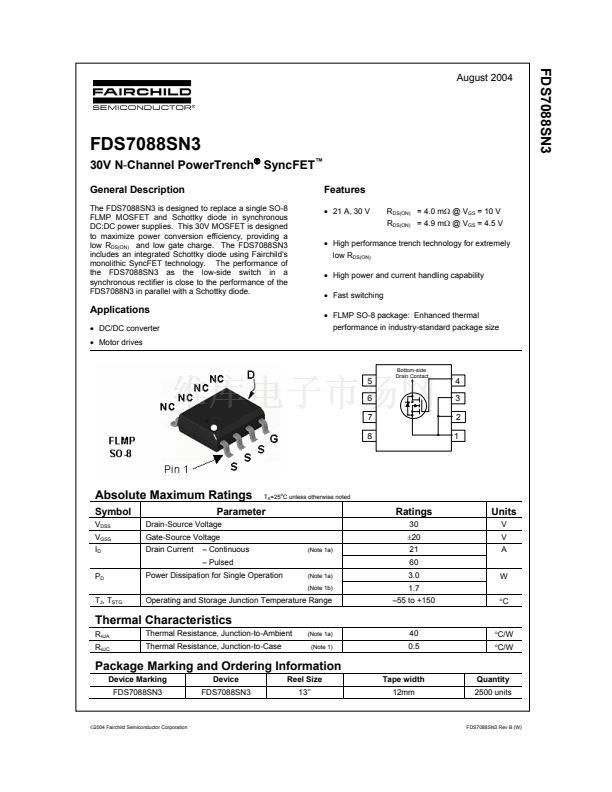

General Description
The FDS7088SN3 is designed to replace a single SO-8
FLMP MOSFET and Schottky diode in synchronous
DC:DC power supplies. This 30V MOSFET is designed
to maximize power conversion efficiency, providing a
low R
DS(ON)
and low gate charge. The FDS7088SN3
includes an integrated Schottky diode using Fairchild鈥檚
monolithic SyncFET technology. The performance of
the FDS7088SN3 as the low-side switch in a
synchronous rectifier is close to the performance of the
FDS7088N3 in parallel with a Schottky diode.
Features
鈥?/div>
21 A, 30 V
R
DS(ON)
= 4.0 m鈩?@ V
GS
= 10 V
R
DS(ON)
= 4.9 m鈩?@ V
GS
= 4.5 V
鈥?/div>
High performance trench technology for extremely
low R
DS(ON)
鈥?/div>
High power and current handling capability
鈥?/div>
Fast switching
鈥?/div>
FLMP SO-8 package: Enhanced thermal
performance in industry-standard package size
Applications
鈥?/div>
DC/DC converter
鈥?/div>
Motor drives
5
6
7
8
Bottom-side
Drain Contact
4
3
2
1
Absolute Maximum Ratings
Symbol
V
DSS
V
GSS
I
D
P
D
T
J
, T
STG
Drain-Source Voltage
Gate-Source Voltage
Drain Current
鈥?Continuous
鈥?Pulsed
T
A
=25 C unless otherwise noted
o
Parameter
Ratings
30
鹵20
(Note 1a)
Units
V
V
A
W
擄C
21
60
3.0
1.7
鈥?5 to +150
Power Dissipation for Single Operation
(Note 1a)
(Note 1b)
Operating and Storage Junction Temperature Range
Thermal Characteristics
R
胃JA
R
胃JC
Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Case
(Note 1a)
(Note 1)
40
0.5
擄C/W
擄C/W
Package Marking and Ordering Information
Device Marking
FDS7088SN3
Device
FDS7088SN3
Reel Size
13鈥欌€?/div>
Tape width
12mm
Quantity
2500 units
餂?004
Fairchild Semiconductor Corporation
FDS7088SN3 Rev B (W)

FDS7088SN3 產品屬性

  • 2,500

  • 分離式半導體產品

  • FET - 單

  • PowerTrench®

  • MOSFET N 通道，金屬氧化物

  • 邏輯電平門

  • 30V

  • 21A

  • 4 毫歐 @ 21A，10V

  • 3V @ 1mA

  • 80nC @ 10V

  • 3230pF @ 15V

  • 1.7W

  • 表面貼裝

  • 8-SOIC（0.154"，3.90mm Width）裸露焊盤

  • 8-SOIC

  • 帶卷 (TR)
