FDS7082N3 Datasheet

  • FDS7082N3

  • 30V N-Channel PowerTrench MOSFET

  • 174.65KB

  • 7頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

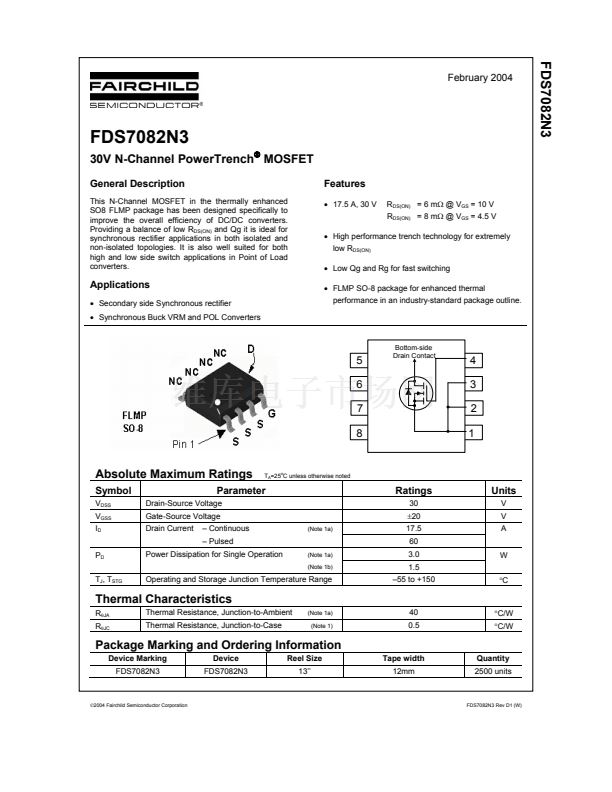

FDS7082N3
February 2004
FDS7082N3
30V N-Channel PowerTrench
餂?/div>
MOSFET
General Description
This N-Channel MOSFET in the thermally enhanced
SO8 FLMP package has been designed specifically to
improve the overall efficiency of DC/DC converters.
Providing a balance of low R
DS(ON)
and Qg it is ideal for
synchronous rectifier applications in both isolated and
non-isolated topologies. It is also well suited for both
high and low side switch applications in Point of Load
converters.
Features
鈥?/div>
17.5 A, 30 V
R
DS(ON)
= 6 m鈩?@ V
GS
= 10 V
R
DS(ON)
= 8 m鈩?@ V
GS
= 4.5 V
鈥?/div>
High performance trench technology for extremely
low R
DS(ON)
鈥?/div>
Low Qg and Rg for fast switching
鈥?/div>
FLMP SO-8 package for enhanced thermal
performance in an industry-standard package outline.
Applications
鈥?/div>
Secondary side Synchronous rectifier
鈥?/div>
Synchronous Buck VRM and POL Converters
5
6
7
8
Bottom-side
Drain Contact
4
3
2
1
Absolute Maximum Ratings
Symbol
V
DSS
V
GSS
I
D
P
D
T
J
, T
STG
Drain-Source Voltage
Gate-Source Voltage
Drain Current
鈥?Continuous
鈥?Pulsed
T
A
=25
o
C unless otherwise noted
Parameter
Ratings
30
鹵20
(Note 1a)
Units
V
V
A
W
擄C
17.5
60
3.0
1.5
鈥?5 to +150
Power Dissipation for Single Operation
(Note 1a)
(Note 1b)
Operating and Storage Junction Temperature Range
Thermal Characteristics
R
胃JA
R
胃JC
Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Case

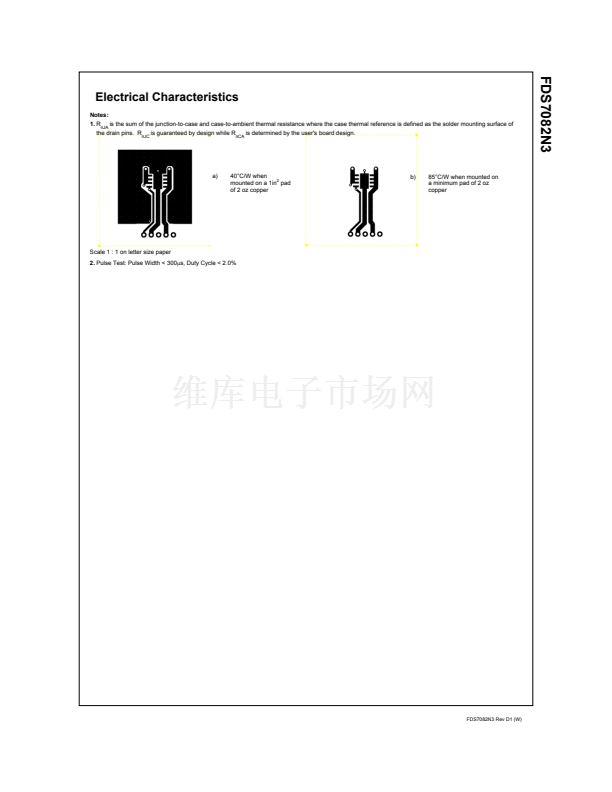

(Note 1a)
(Note 1)
40
0.5
擄C/W
擄C/W
Package Marking and Ordering Information
Device Marking
FDS7082N3
Device
FDS7082N3
Reel Size
13鈥欌€?/div>
Tape width
12mm
Quantity
2500 units
餂?004
Fairchild Semiconductor Corporation
FDS7082N3 Rev D1 (W)

FDS7082N3 產品屬性

  • 2,500

  • 分離式半導體產品

  • FET - 單

  • PowerTrench®

  • MOSFET N 通道，金屬氧化物

  • 邏輯電平門

  • 30V

  • 17.5A

  • 6 毫歐 @ 17.5A，10V

  • 3V @ 250µA

  • 53nC @ 10V

  • 2271pF @ 15V

  • 1.5W

  • 表面貼裝

  • 8-SOIC（0.154"，3.90mm Width）裸露焊盤

  • 8-SOIC

  • 帶卷 (TR)

  • FDS7082N3TRFDS7082N3_NLFDS7082N3_NLTRFDS7082N3_NLTR-ND
