FDP6030BL Datasheet

  • FDP6030BL

  • N-Channel Logic Level PowerTrench MOSFET

  • 383.10KB

  • 10頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

FDP6030BL/FDB6030BL
July 2000
FDP6030BL/FDB6030BL
N-Channel Logic Level PowerTrench
餂?/div>
MOSFET
General Description
This N-Channel Logic Level MOSFET has been designed
specifically to improve the overall efficiency of DC/DC
converters using either synchronous or conventional
switching PWM controllers.
These MOSFETs feature faster switching and lower gate
charge than other MOSFETs with comparable R
DS(on)
specifications resulting in DC/DC power supply designs
with higher overall efficiency.
Features
鈥?40 A, 30 V. R
DS(ON)
= 0.018
鈩?/div>
@ V
GS
= 10 V
R
DS(ON)
= 0.024
鈩?/div>
@ V
GS
= 4.5 V.
鈥?Critical DC electrical parameters specified at elevated
temperature.
鈥?Rugged internal source-drain diode can eliminate the
need for an external Zener diode transient suppressor.
鈥?High performance trench technology for
extremely low R
DS(ON)
.
鈥?175擄C maximum junction temperature rating.
D
D
G
G
D
S
TO-220
FDP Series
G
S
T
C
= 25擄C unless otherwise noted

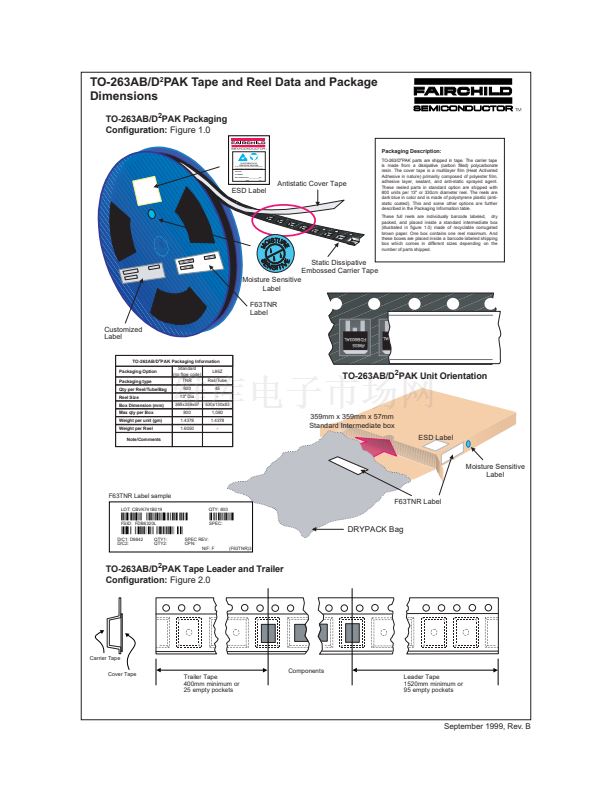

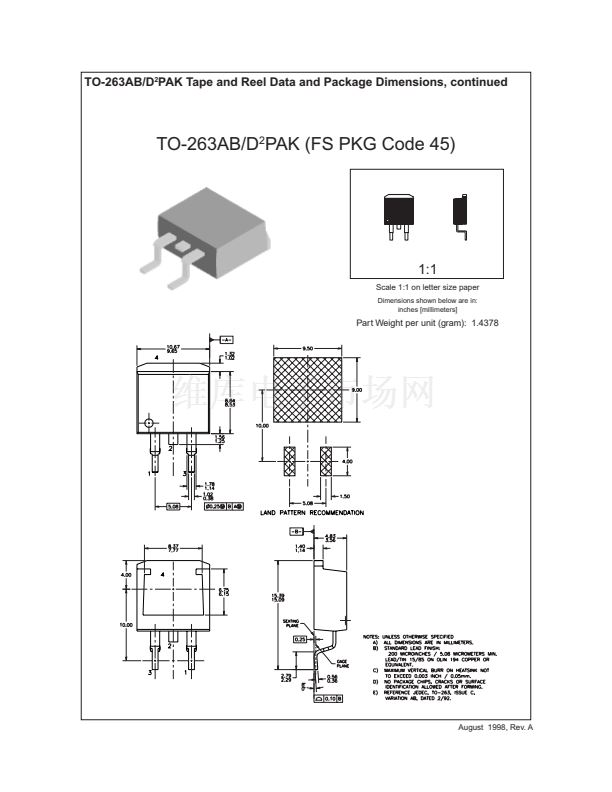

TO-263AB
FDB Series
S
Absolute Maximum Ratings
Symbol
V
DSS
V
GSS
I
D
P
D
T
J
, T
STG
R
胃
JC
R
胃
JA
Drain-Source Voltage
Gate-Source Voltage
Maximum Drain Current
Parameter
FDP6030BL
FDB6030BL
30
鹵
20
Units
V
V
A
W
W/
擄
C
擄
C
擄
C/W
擄
C/W
- Continuous
- Pulsed
(Note 1)
40
120
60
0.36
-65 to +175
Total Power Dissipation @ T
C
= 25
擄
C
Derate above 25
擄
C
Operating and Storage Junction Temperature Range
Thermal Characteristics
Thermal Resistance, Junction-to-Case
Thermal Resistance, Junction-to-Ambient
2.5
62.5
Package Marking and Ordering Information
Device Marking
FDB6030BL
FDP6030BL
Device
FDB6030BL
FDP6030BL
Reel Size
13鈥欌€?/div>
Tube
Tape Width
24mm
N/A
Quantity
800
45
錚?00
Fairchild Semiconductor International
FDP6030BL/FDB6030BL Rev.C

FDP6030BL 產品屬性

  • High Voltage Switches for Power Processing

  • 50

  • 分離式半導體產品

  • FET - 單

  • PowerTrench®

  • MOSFET N 通道，金屬氧化物

  • 邏輯電平門

  • 30V

  • 40A

  • 18 毫歐 @ 20A，10V

  • 3V @ 250µA

  • 17nC @ 5V

  • 1160pF @ 15V

  • 60W

  • 通孔

  • TO-220-3

  • TO-220

  • 管件
