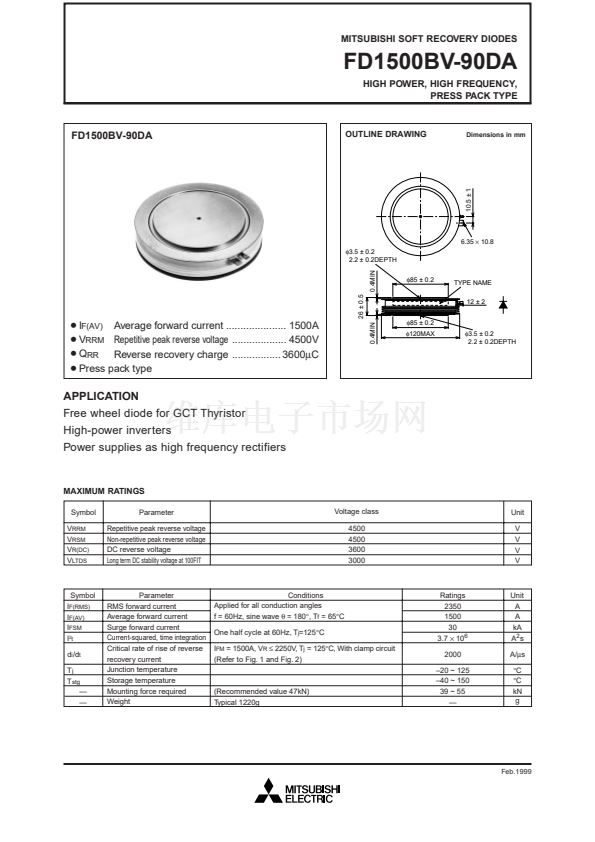

MITSUBISHI SOFT RECOVERY DIODES
FD1500BV-90DA
HIGH POWER, HIGH FREQUENCY,
PRESS PACK TYPE
FD1500BV-90DA
OUTLINE DRAWING
Dimensions in mm
6.35
脳
10.8
蠁3.5
鹵 0.2
2.2 鹵 0.2DEPTH
0.4MIN
蠁85
鹵 0.2
TYPE NAME
12 鹵 2
26 鹵 0.5
隆I
F(AV)
Average forward current ..................... 1500A
隆V
RRM
Repetitive peak reverse voltage ................... 4500V
隆Q
RR
Reverse recovery charge ................. 3600碌C
隆Press
pack type
0.4MIN
蠁85
鹵 0.2
蠁120MAX
蠁3.5
鹵 0.2
2.2 鹵 0.2DEPTH
APPLICATION
Free wheel diode for GCT Thyristor
High-power inverters
Power supplies as high frequency rectifiers
MAXIMUM RATINGS
Symbol
V
RRM
V
RSM
V
R(DC)
V
LTDS
Parameter
Repetitive peak reverse voltage
Non-repetitive peak reverse voltage
DC reverse voltage
Long term DC stability voltage at 100FIT
Voltage class
4500
4500
3600
3000
Unit
V
V
V
V
Symbol
I
F(RMS)
I
F(AV)
I
FSM
I
2
t
d
i
/d
t
T
j
T
stg
鈥?/div>
鈥?/div>
Parameter
RMS forward current
Average forward current
Surge forward current
Current-squared, time integration
Critical rate of rise of reverse
recovery current
Junction temperature
Storage temperature
Mounting force required
Weight
Conditions
Applied for all conduction angles
f = 60Hz, sine wave
胃
= 180擄, T
f
= 65擄C
One half cycle at 60Hz, T
j
=125擄C
I
FM
= 1500A, V
R
鈮?/div>
2250V, T
j
= 125擄C, With clamp circuit

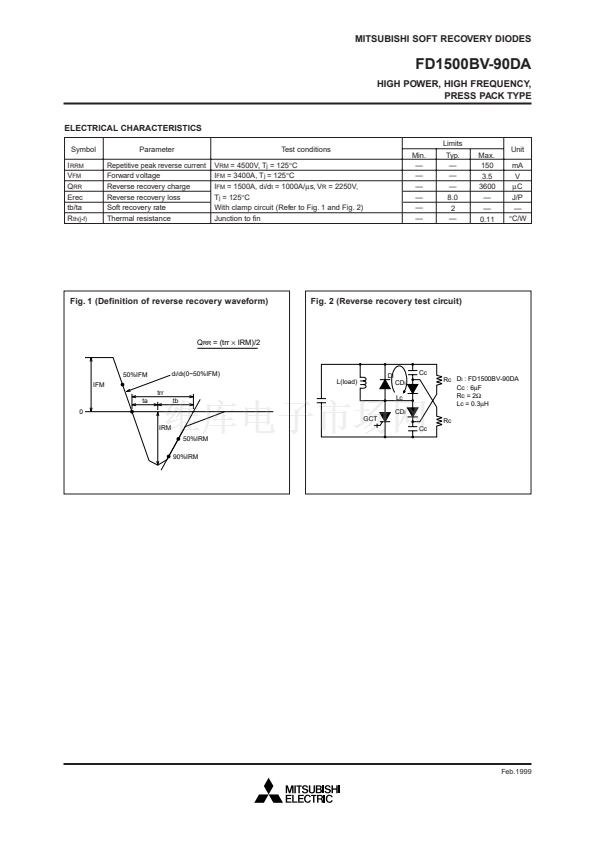

(Refer to Fig. 1 and Fig. 2)
Ratings
2350
1500
30
3.7
脳
10
6
2000
鈥?0 ~ 125
鈥?0 ~ 150
39 ~ 55
鈥?/div>
10.5 鹵 1
Unit
A
A
kA
A
2
s
A/碌s
擄C
擄C
kN
g
(Recommended value 47kN)
Typical 1220g
Feb.1999
