FCPF7N60YDTU Datasheet

  • FCPF7N60YDTU

  • 600V N-Channel MOSFET

  • 413.81KB

  • 11頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

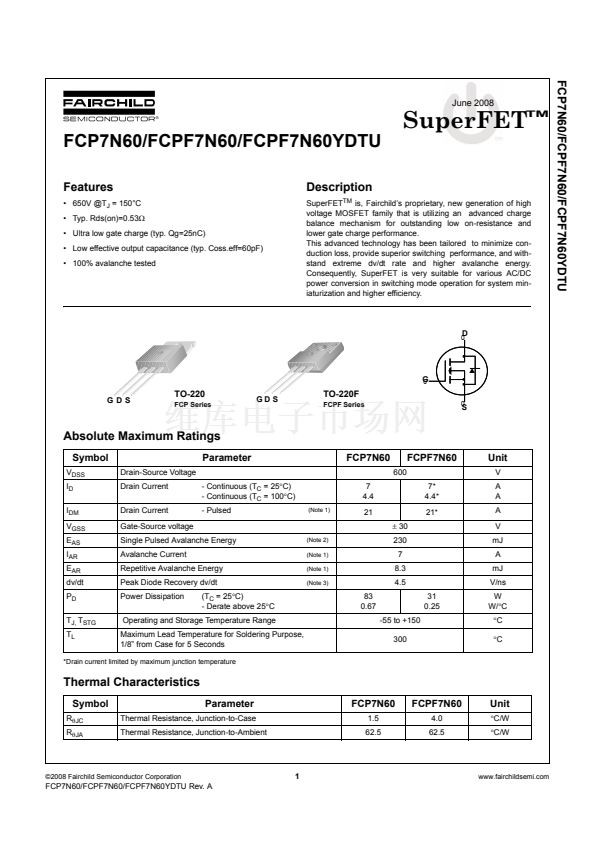

FCP7N60/FCPF7N60/FCPF7N60YDTU
SuperFET
FCP7N60/FCPF7N60/FCPF7N60YDTU
Features
鈥?650V @T
J
= 150擄C
鈥?Typ. Rds(on)=0.53惟
鈥?Ultra low gate charge (typ. Qg=25nC)
鈥?Low effective output capacitance (typ. Coss.eff=60pF)
鈥?100% avalanche tested
June 2008
TM
Description
SuperFET
TM
is, Fairchild鈥檚 proprietary, new generation of high
voltage MOSFET family that is utilizing an advanced charge
balance mechanism for outstanding low on-resistance and
lower gate charge performance.
This advanced technology has been tailored to minimize con-
duction loss, provide superior switching performance, and with-
stand extreme dv/dt rate and higher avalanche energy.
Consequently, SuperFET is very suitable for various AC/DC
power conversion in switching mode operation for system min-
iaturization and higher efficiency.
D
G
G DS

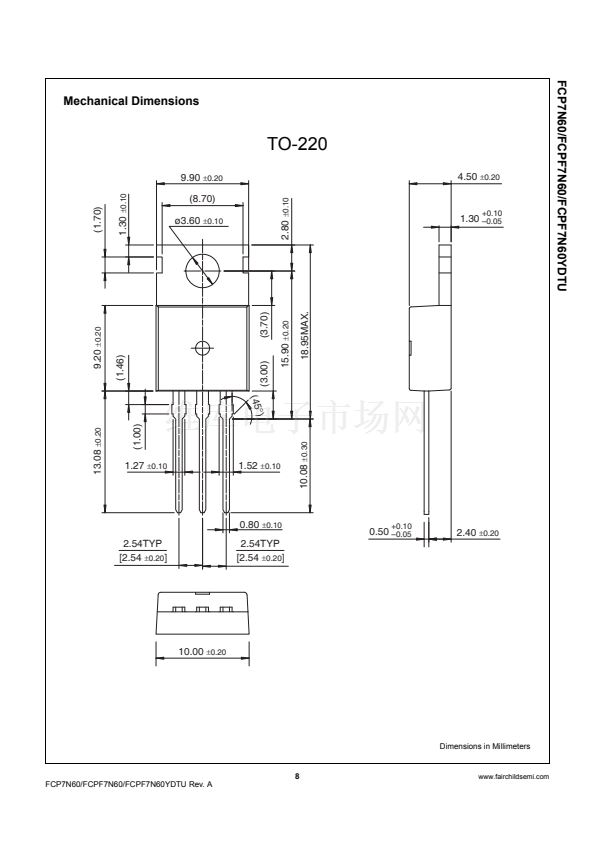

TO-220
FCP Series
GD S

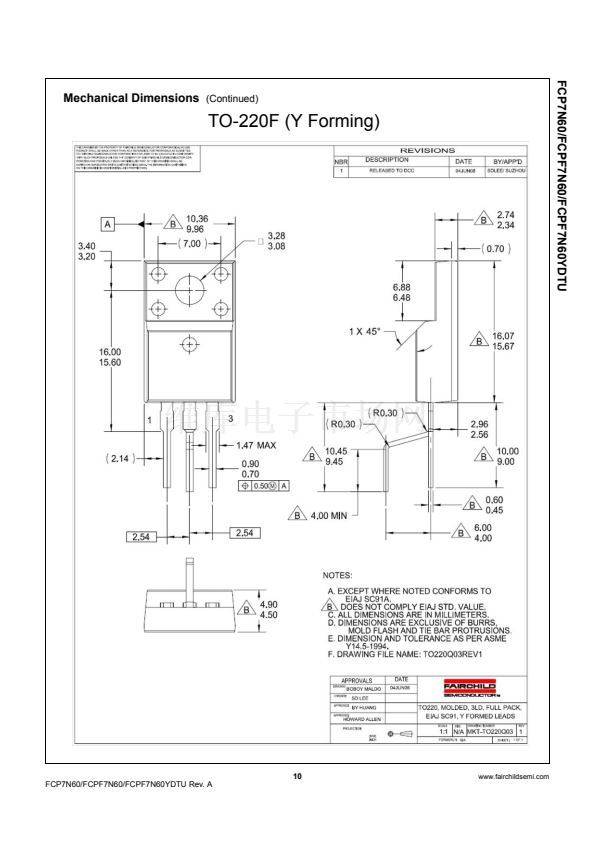

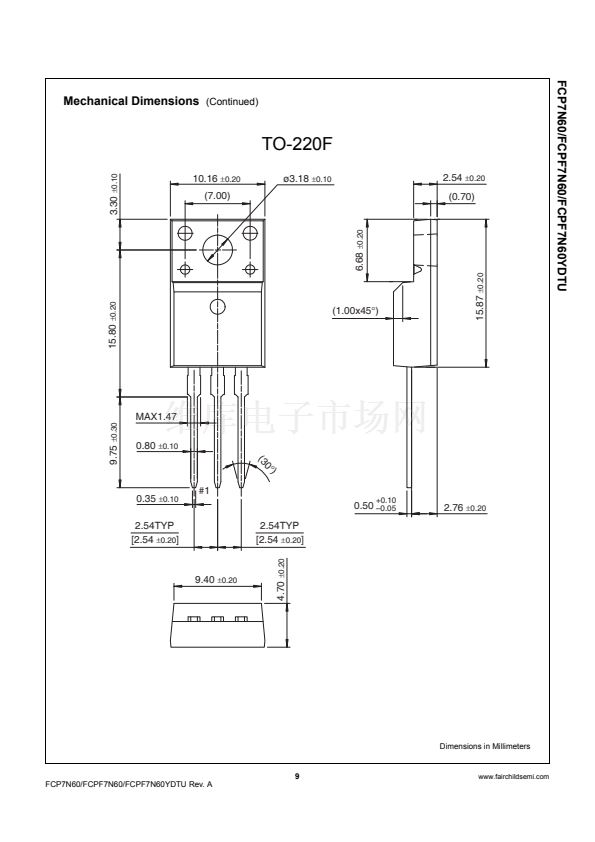

TO-220F
FCPF Series
S
Absolute Maximum Ratings
Symbol
V
DSS
I
D
I
DM
V
GSS
E
AS
I
AR
E
AR
dv/dt
P
D
T
J,
T
STG
T
L
Drain-Source Voltage
Drain Current
Drain Current
Gate-Source voltage
Single Pulsed Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Power Dissipation
(T
C
= 25擄C)
- Derate above 25擄C
(Note 2)
(Note 1)
(Note 1)
(Note 3)
Parameter
- Continuous (T
C
= 25擄C)
- Continuous (T
C
= 100擄C)
- Pulsed
(Note 1)
FCP7N60
600
7
4.4
21
FCPF7N60
7*
4.4*
21*
鹵
30
230
7
8.3
4.5
Unit
V
A
A
A
V
mJ
A
mJ
V/ns
83
0.67
-55 to +150
300
31
0.25
W
W/擄C
擄C
擄C
Operating and Storage Temperature Range
Maximum Lead Temperature for Soldering Purpose,
1/8鈥?from Case for 5 Seconds
*Drain current limited by maximum junction temperature
Thermal Characteristics
Symbol
R
胃JC
R
胃JA
Parameter
Thermal Resistance, Junction-to-Case
Thermal Resistance, Junction-to-Ambient
FCP7N60
1.5
62.5
FCPF7N60
4.0
62.5
Unit
擄C/W
擄C/W
漏2008 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
FCP7N60/FCPF7N60/FCPF7N60YDTU Rev. A

FCPF7N60YDTU 產品屬性

  • 50

  • 分離式半導體產品

  • FET - 單

  • SuperFET™

  • MOSFET N 通道，金屬氧化物

  • 標準型

  • 600V

  • 7A

  • 600 毫歐 @ 3.5A，10V

  • 5V @ 250µA

  • 30nC @ 10V

  • 920pF @ 25V

  • 31W

  • 通孔

  • TO-220-3 整包

  • TO-220F

  • 管件
