www.fairchildsemi.com

FAN7563/FAN7564

Lithium-Ion Charger Controller

Features

鈥?/div>

Constant Voltage & Constant Current Control

Wide Operating Range of 2.5V ~ 16V

Low-Side Source Return Current Sensing

Externally Adjustable Charging Current Control

Charging Current Monitoring

Precision LDO Regulator Drive Ouptut (Adj)

(Only FAN7564)

鈥?Error signals of Output Dropout (LDO)

(Only FAN7564)

鈥?Current Limit (LDO)

( FAN7564 Only)

Description

The FAN7563/FAN7564 is designed for Lithium-ion battery

charger. This controls charging current and voltage of Lith-

ium - ion battery as constant current and constant voltage

control IC and can be used for stand alone charger

(FAN7563) and micom interface charger(FAN7564). In

addition LDO regulator driving output which is integrated

within FAN7564 enables to offer accurate reference voltage

to power supply of micro controller, therefore, it features

increasing stability and efficiency of charger set as well as

minimizing external components of the set. Additionally,

FAN7563/FAN7564 provide the protection functions like

error flag, short circuit protection(LDO), and charging

current control disable.

8-SOP

14-SOP

Internal Block Diagram

14(8)

VCC

13(7)

VSEN

12(6)

IREF

11(5)

MONIT

ERROR

LDODRV

UVLO

Reference

Vref(1.244V)

脳5

Reference

Bias

Internal

Bias

LDO

Drive

8SOP

14SOP

20k鈩?/div>

OUTPUT

ISEN

GND

CHA-

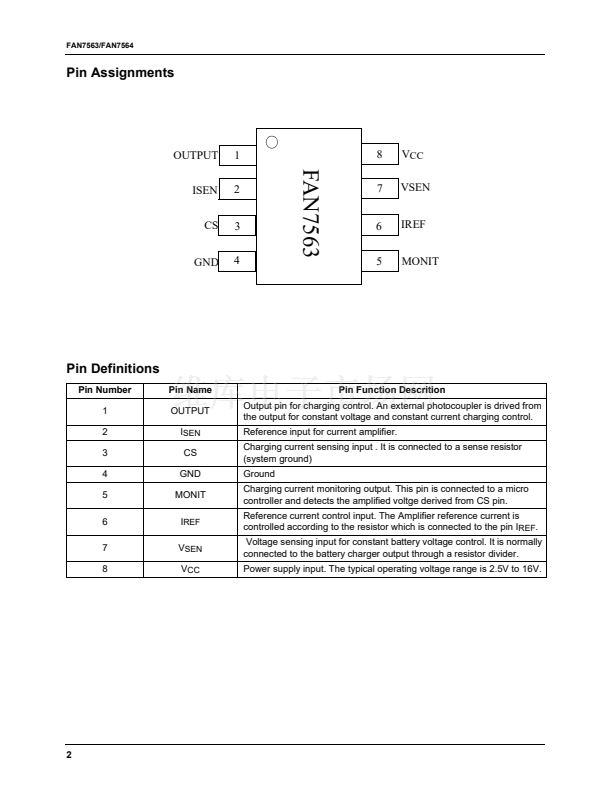

Rev. 1.0.3

漏2001 Fairchild Semiconductor Corporation
