www.fairchildsemi.com

FAN7024

Features

鈥?/div>

675mW CMOS Mono Power Amplifier with

Shutdown

Description

The FAN7024 is a bridge connected audio power amplifier

capable of delivering 675mW of continuous average power

to an 8鈩?load with less than 0.3%(THD) from a 5V power

supply. The FAN7024 requires few external components and

operates on low supply voltage from 2.3V to 5.5V. Since the

FAN7024 does not require output coupling capacitors,

bootstrap capacitors, or snubber networks, it is ideally suited

for low power portable systems that require minimum

volume and weight. The FAN7024 features an externally

controlled gain and low power consumption shutdown mode

(0.1uA,typ.). Additional FAN7024 features include thermal

shutdown protection, unity gain stability, and external gain

set.

8MSOP

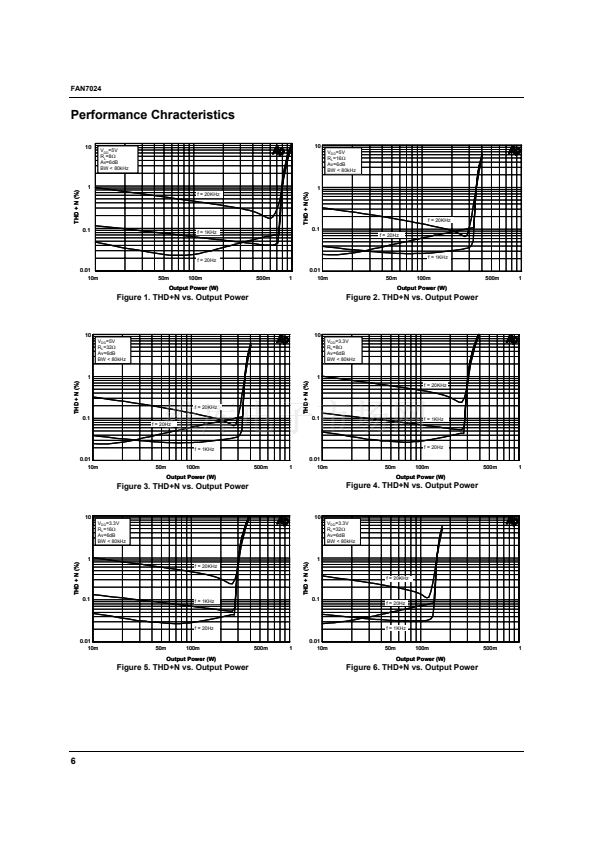

Continuous Average Power is 675mW (8鈩?

Low THD: Typical 0.3% @ Po=500mW

PSRR@217Hz, Input Terminated : 60dB

Do Not Need Output Coupling Capacitor or Bootstrap

Capacitor

Low Shutdown Current: Typical 0.1碌A(chǔ)

Shutdown: High Active

Click & Pop Suppression circuitry

Built in TSD Circuit

Typical Applications

鈥?Cellular Phone

鈥?PDA

鈥?Portable Audio Systems

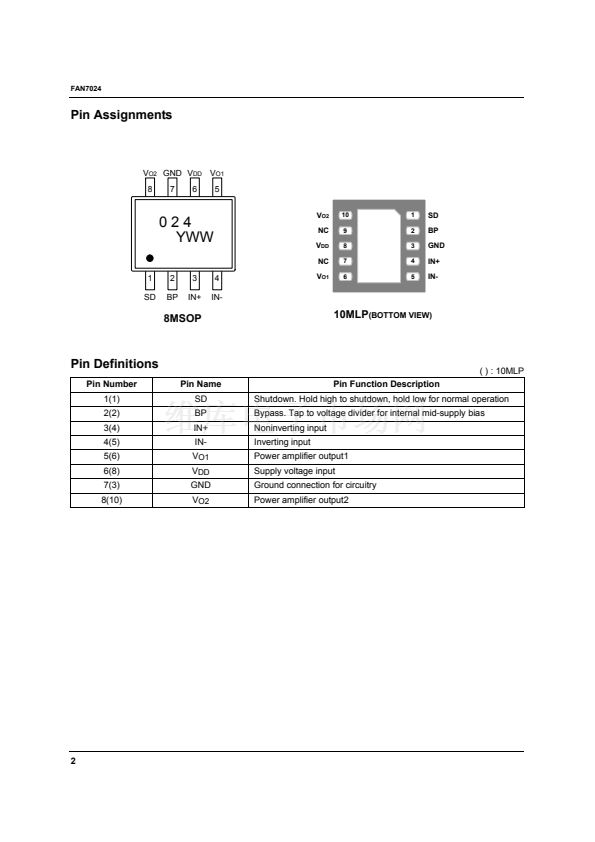

10MLP

BOTTOM VIEW

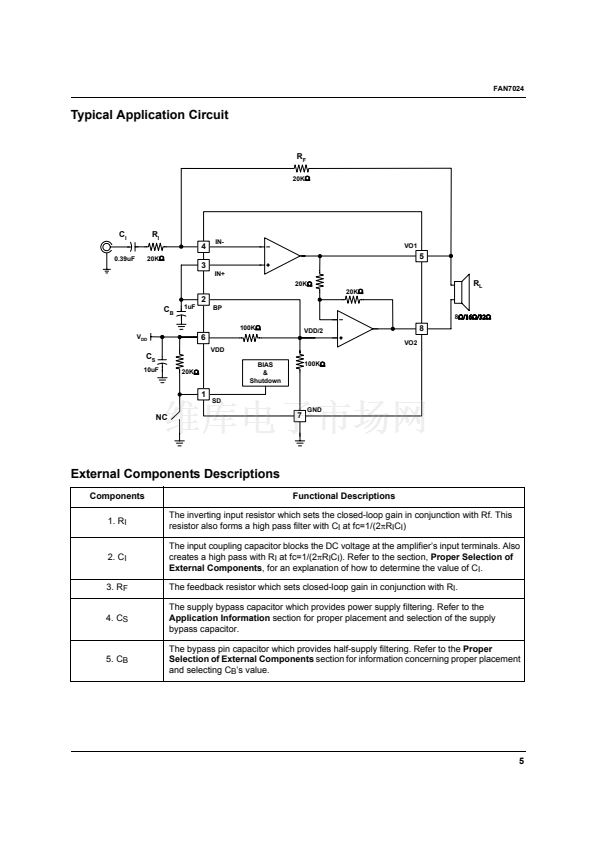

Internal Block Diagram

IN-

VO1

IN+

20K鈩?/div>

100K鈩?/div>

VDD/2

VO2

VDD

BIAS

Shutdown

100K鈩?/div>

GND

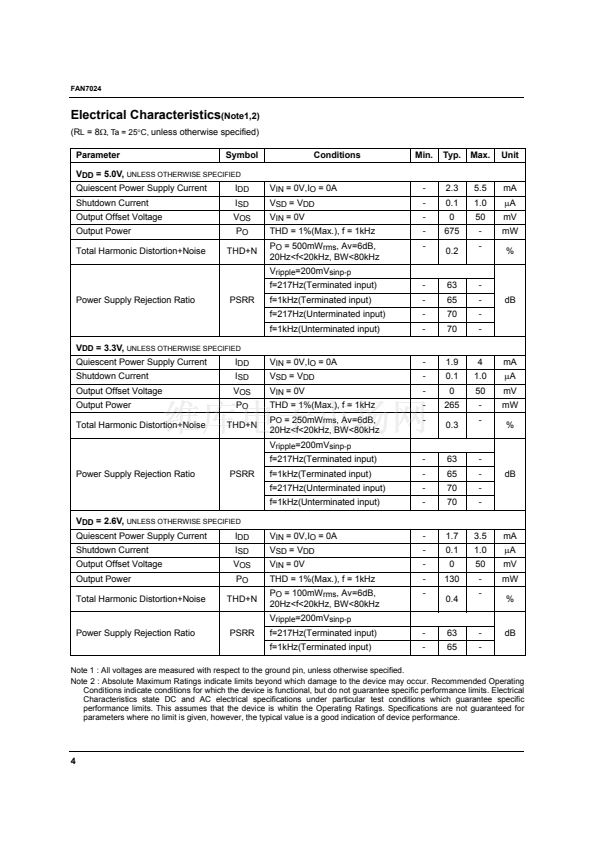

Rev. 1.0.0

漏2003 Fairchild Semiconductor Corporation

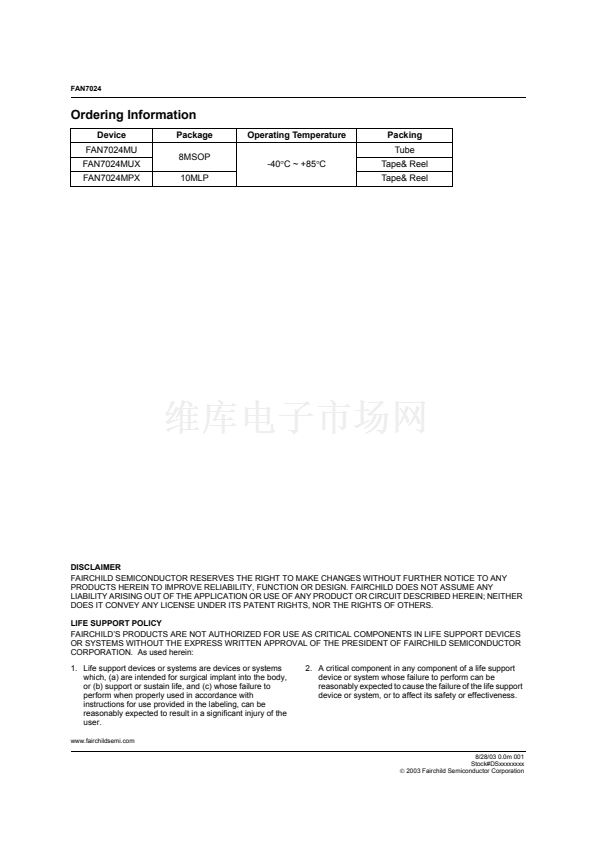

制造商
Fairchild Semiconductor
產品種類
音頻放大器
產品
Class-AB
輸出功率
675 mW
輸出類型
1-Channel Mono
THD + 噪聲
0.2 %
工作電源電壓
3 V, 5 V
最大功率耗散
Internally Limited
最大工作溫度
+ 85 C
安裝風格
SMD/SMT
封裝 / 箱體
MSOP-8
封裝
Reel
音頻負載電阻
8 Ohms
輸入信號類型
Single
最小工作溫度
- 40 C
輸出信號類型
Differential
工廠包裝數量
2500
電源類型
Single
Supply Voltage - Max
5.5 V
Supply Voltage - Min
2.3 V
