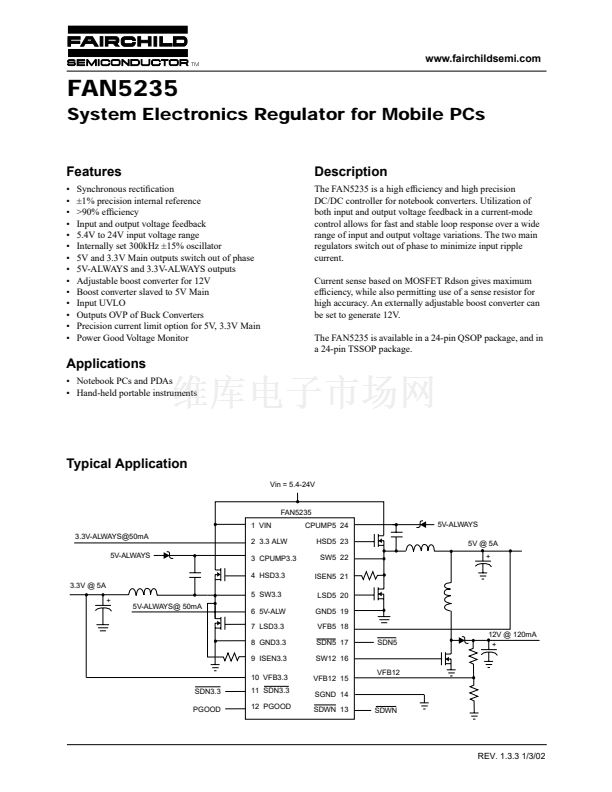

www.fairchildsemi.com

FAN5235

System Electronics Regulator for Mobile PCs

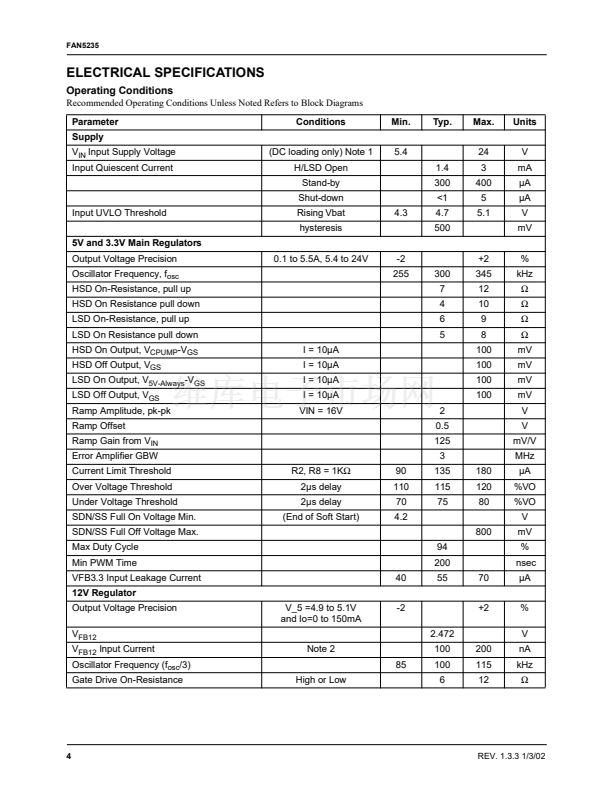

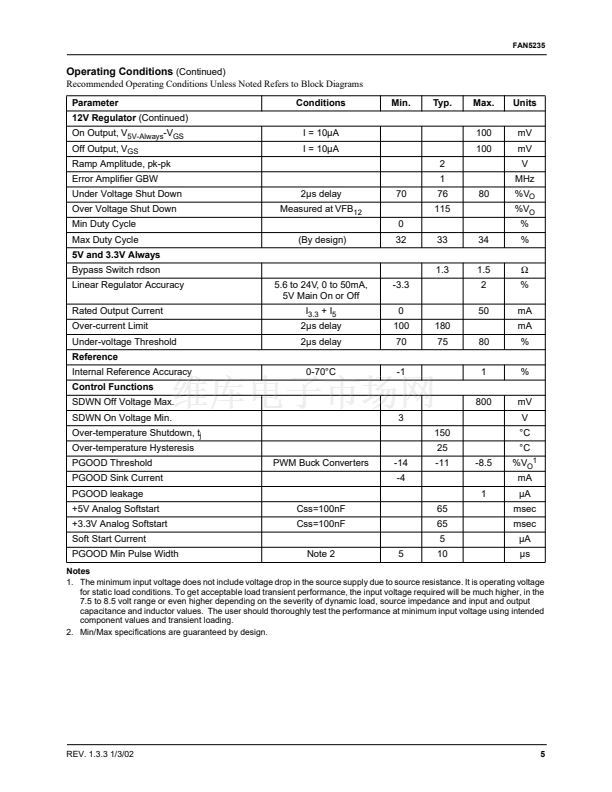

Features

鈥?/div>

Synchronous recti鏗乧ation

鹵1% precision internal reference

>90% ef鏗乧iency

Input and output voltage feedback

5.4V to 24V input voltage range

Internally set 300kHz 鹵15% oscillator

5V and 3.3V Main outputs switch out of phase

5V-ALWAYS and 3.3V-ALWAYS outputs

Adjustable boost converter for 12V

Boost converter slaved to 5V Main

Input UVLO

Outputs OVP of Buck Converters

Precision current limit option for 5V, 3.3V Main

Power Good Voltage Monitor

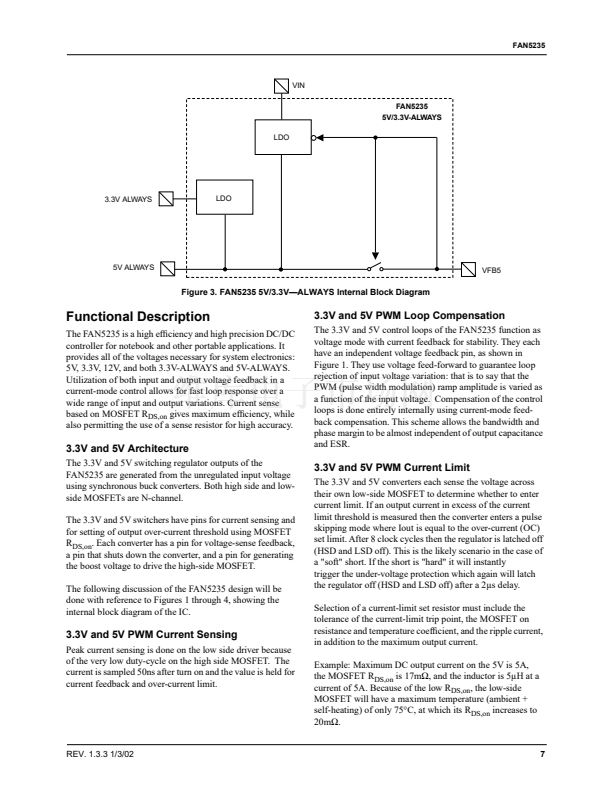

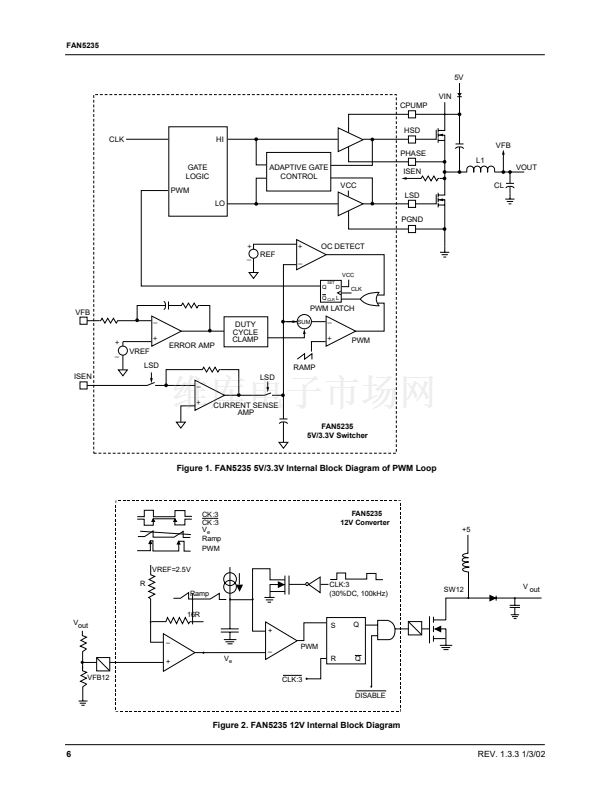

Description

The FAN5235 is a high ef鏗乧iency and high precision

DC/DC controller for notebook converters. Utilization of

both input and output voltage feedback in a current-mode

control allows for fast and stable loop response over a wide

range of input and output voltage variations. The two main

regulators switch out of phase to minimize input ripple

current.

Current sense based on MOSFET Rdson gives maximum

ef鏗乧iency, while also permitting use of a sense resistor for

high accuracy. An externally adjustable boost converter can

be set to generate 12V.

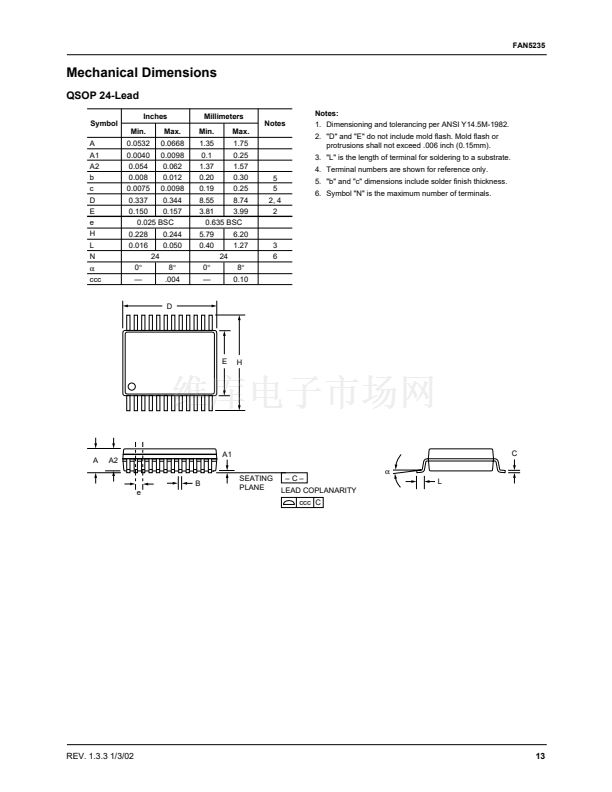

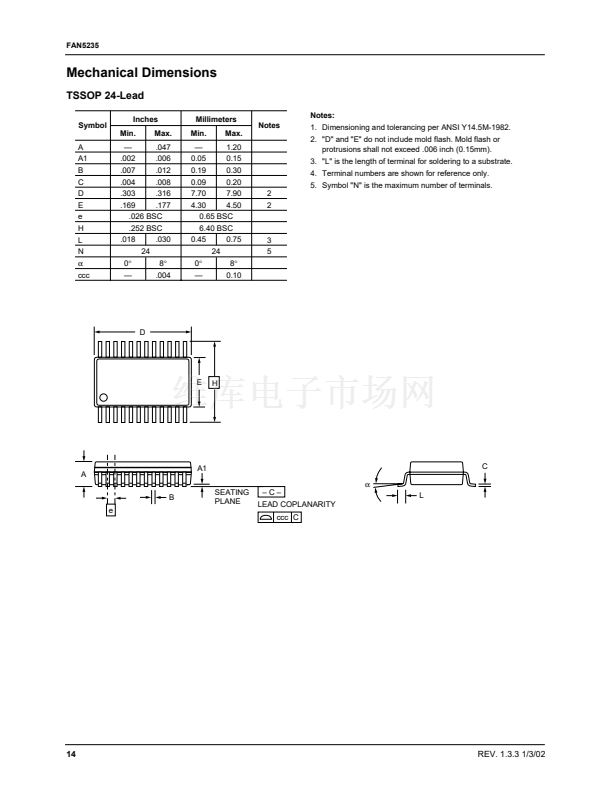

The FAN5235 is available in a 24-pin QSOP package, and in

a 24-pin TSSOP package.

Applications

鈥?Notebook PCs and PDAs

鈥?Hand-held portable instruments

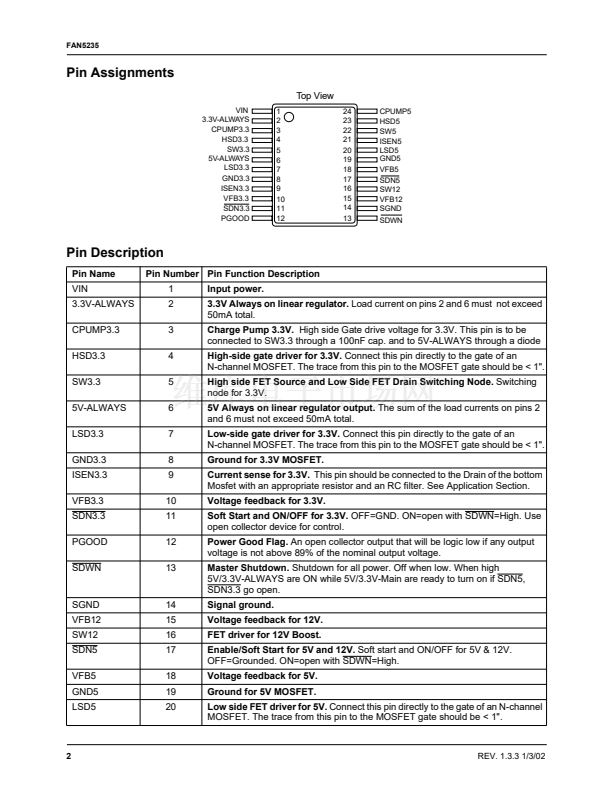

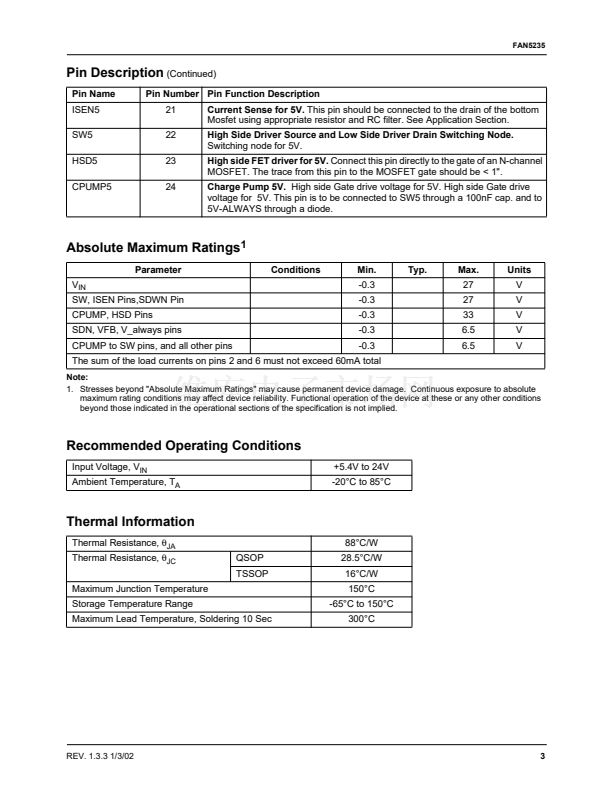

Typical Application

Vin = 5.4-24V

FAN5235

1 VIN

3.3V-ALWAYS@50mA

5V-ALWAYS

2 3.3 ALW

3 CPUMP3.3

4 HSD3.3

3.3V @ 5A

5 SW3.3

5V-ALWAYS@ 50mA

6 5V-ALW

7 LSD3.3

8 GND3.3

9 ISEN3.3

10 VFB3.3

SDN3.3

PGOOD

11 SDN3.3

12 PGOOD

LSD5 20

GND5 19

VFB5 18

SDN5 17

SW12 16

VFB12 15

SGND 14

SDWN 13

SDWN

VFB12

SDN5

12V @ 120mA

CPUMP5 24

HSD5 23

SW5 22

ISEN5 21

5V-ALWAYS

5V @ 5A

REV. 1.3.3 1/3/02
