Precision Supercomponents For Critical Applications

FA4230

ULTRA MINIATURE 400-750 MHZ

SWITCHED FILTER BANK

ABSOLUTE MAXIMUM RATINGS

Storage Temperature.............................-65

擄

C to +150

擄

C

Operating Temperature.........................-55

擄

C to +105

擄

C

Input R.F. Power..........................................+25 dBm Max.

Hermeticity...........................MIL-STD-883, Method 1014

Shock...........................MIL-STD-810, Method 516,Proc. I

OUTLINE DRAWING

1.35"

C1

C2

GND

J1

GND

FEATURES

鈥?/div>

SHARP ATTENTUATION

FAST SWITCHING - 100 NS

FOUR CONTIGUOUS BANDS

HIGH RELIABILITY

MIL-STD-883 SCREENED

0.65 CU IN TOTAL VOLUME

1.40鈥?X 1.35 鈥淴 0.34 鈥?IN SIZE

0.09"

1.22"

0.34"

0.09"

+5V

-5V

GND

J2

GND

1.40"

DESCRIPTION

The Comstron Model FA4230 is a switchable filter mod-

ule containing four filters, with the capability of select-

ing any one of the four filters with a 2 bit TTL control

signal. The FA4230 offers a design having extremely high

frequency selectivity, minimum switching time, and

ultra miniaturized size. The FA4230 is screened to MIL-

STD-883 procedures and operates over the temperature

range of -55

擄

C to +105

擄

C

RF

IN

S

P

4

T

FL1

FL2

FL3

FL4

S

P

4

T

RF

OUT

HP

DRIVER

DECODER

2 Bit TTL Control Input

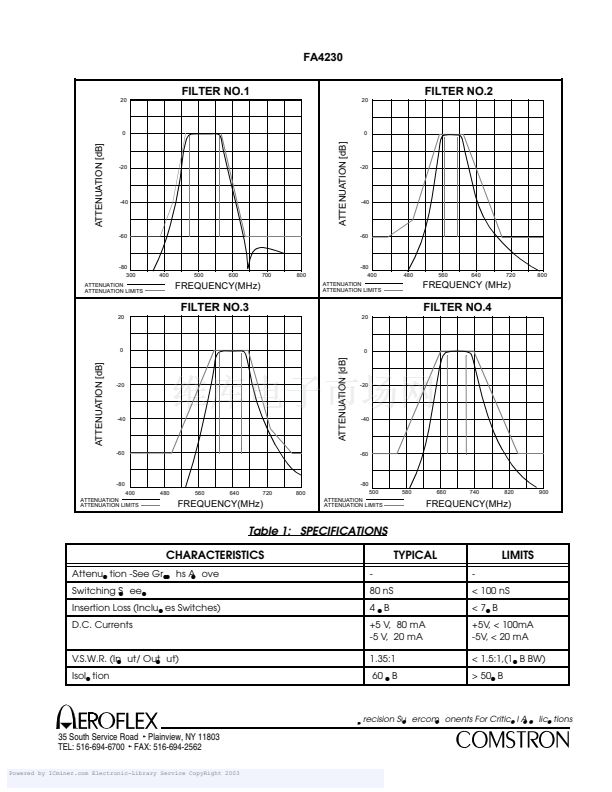

FA4230
