NEW

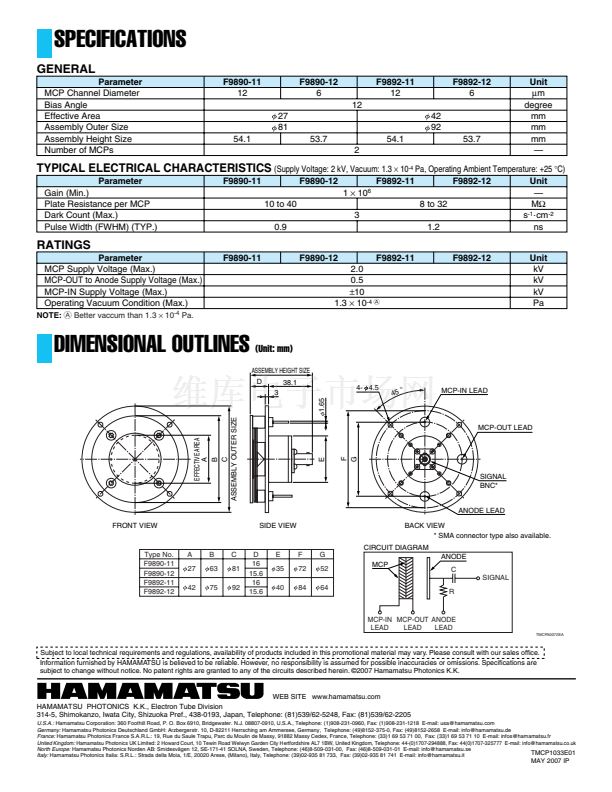

MCP ASSEMBLY

F9890-11/-12, F9892-11/-12

HIGH TIME RESOLUTION TOF-MS DETECTOR

HIGH VOLTAGE FLOATING OPERATION

FEATURES

GHigh

voltage floating operation

GFast

time response

GLarge

effective area

F9890-11/-12

F9892-11/-12

27 mm

42 mm

MCP-IN

鹵

10 kV

GExcellent

MCP flatness

GRobust

MCP

GLess

ringing

GSmall

time jitter

OVERVIEW

The F9890-11/-12 and F9892-11/-12 are ideal detec-

tors with large effective area for TOF-MS (Time of

Flight Mass Spectrometry).

Our own advanced technology in optimizing the as-

sembly design with flat MCP allows excellent time res-

olution of 1.2 ns (FWHM: F9892-11/-12) with negligible

ringing at both

鹵10

kV high voltage floating operation.

Figure 1:

Typical Output Waveform (F9892-12)

20

0

TMCPB0088EB

OUTPUT VOLTAGE (mV)

-20

-40

-60

FWHM: 1.2 ns

-80

-100

-120

FLOATING OPERATION

MCP-IN SUPPLY VOLTAGE

0 kV

-10 kV

+10 kV

RESPONSE TIME (1 ns/div.)
