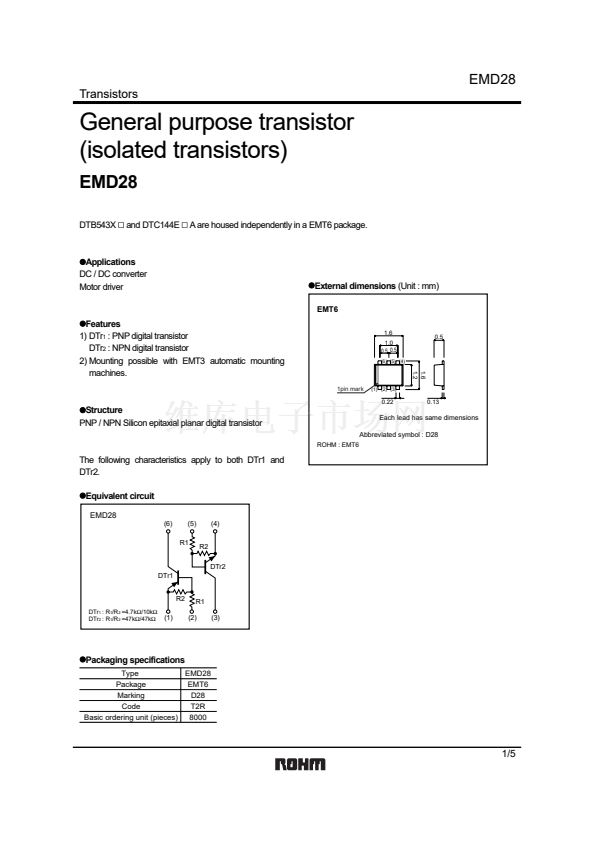

EMD28

Transistors

General purpose transistor

(isolated transistors)

EMD28

DTB543X

and DTC144E

A are housed independently in a EMT6 package.

Applications

DC / DC converter

Motor driver

External dimensions

(Unit : mm)

EMT6

Features

1) DTr

: PNP digital transistor

DTr

: NPN digital transistor

2) Mounting possible with EMT3 automatic mounting

machines.

1pin mark

1.6

1.0

0.5 0.5

(6) (5) (4)

0.5

1.6

1.2

(1) (2) (3)

0.22

0.13

Structure

PNP / NPN Silicon epitaxial planar digital transistor

ROHM : EMT6

Each lead has same dimensions

Abbreviated symbol : D28

The following characteristics apply to both DTr1 and

DTr2.

Equivalent circuit

EMD28

(6)

(5)

DTr2

DTr1

DTr

: R

=4.7k鈩?10k鈩?/div>

DTr

: R

=47k鈩?47k鈩?/div>

(4)

(2)

(3)

(1)

Packaging specifications

Type

EMD28

Package

EMT6

Marking

D28

Code

T2R

Basic ordering unit (pieces)

8000

1/5
