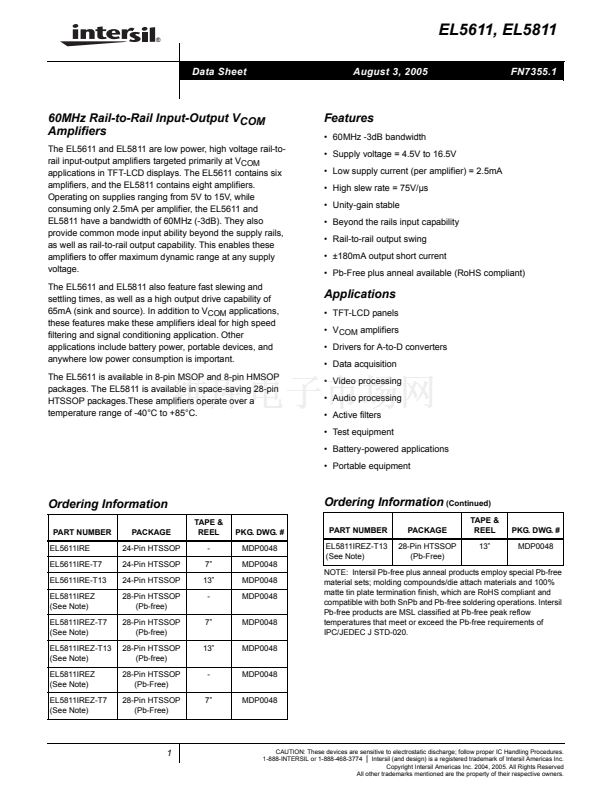

EL5611, EL5811
Data Sheet
August 3, 2005
FN7355.1
60MHz Rail-to-Rail Input-Output V
COM
Amplifiers
The EL5611 and EL5811 are low power, high voltage rail-to-
rail input-output amplifiers targeted primarily at V
COM
applications in TFT-LCD displays. The EL5611 contains six
amplifiers, and the EL5811 contains eight amplifiers.
Operating on supplies ranging from 5V to 15V, while
consuming only 2.5mA per amplifier, the EL5611 and
EL5811 have a bandwidth of 60MHz (-3dB). They also
provide common mode input ability beyond the supply rails,
as well as rail-to-rail output capability. This enables these
amplifiers to offer maximum dynamic range at any supply
voltage.
The EL5611 and EL5811 also feature fast slewing and
settling times, as well as a high output drive capability of
65mA (sink and source). In addition to V
COM
applications,
these features make these amplifiers ideal for high speed
filtering and signal conditioning application. Other
applications include battery power, portable devices, and
anywhere low power consumption is important.
The EL5611 is available in 8-pin MSOP and 8-pin HMSOP
packages. The EL5811 is available in space-saving 28-pin
HTSSOP packages.These amplifiers operate over a
temperature range of -40擄C to +85擄C.
Features
鈥?60MHz -3dB bandwidth
鈥?Supply voltage = 4.5V to 16.5V
鈥?Low supply current (per amplifier) = 2.5mA
鈥?High slew rate = 75V/碌s
鈥?Unity-gain stable
鈥?Beyond the rails input capability
鈥?Rail-to-rail output swing
鈥?鹵180mA output short current
鈥?Pb-Free plus anneal available (RoHS compliant)
Applications
鈥?TFT-LCD panels
鈥?V
COM
amplifiers
鈥?Drivers for A-to-D converters
鈥?Data acquisition
鈥?Video processing
鈥?Audio processing
鈥?Active filters
鈥?Test equipment
鈥?Battery-powered applications
鈥?Portable equipment
Ordering Information
PART NUMBER
EL5611IRE
EL5611IRE-T7
EL5611IRE-T13
EL5811IREZ
(See Note)
EL5811IREZ-T7
(See Note)
EL5811IREZ-T13
(See Note)
EL5811IREZ
(See Note)
EL5811IREZ-T7
(See Note)
PACKAGE
24-Pin HTSSOP
24-Pin HTSSOP
24-Pin HTSSOP
28-Pin HTSSOP
(Pb-free)
28-Pin HTSSOP
(Pb-free)
28-Pin HTSSOP
(Pb-free)
28-Pin HTSSOP
(Pb-Free)
28-Pin HTSSOP
(Pb-Free)
TAPE &
REEL
-
7鈥?/div>
13鈥?/div>
-
7鈥?/div>
13鈥?/div>
-
7鈥?/div>
PKG. DWG. #
MDP0048
MDP0048
MDP0048
MDP0048
MDP0048
MDP0048
MDP0048
MDP0048
Ordering Information
(Continued)
PART NUMBER
EL5811IREZ-T13
(See Note)
PACKAGE
28-Pin HTSSOP
(Pb-Free)
TAPE &
REEL
13鈥?/div>
PKG. DWG. #
MDP0048
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100%
matte tin plate termination finish, which are RoHS compliant and
compatible with both SnPb and Pb-free soldering operations. Intersil
Pb-free products are MSL classified at Pb-free peak reflow
temperatures that meet or exceed the Pb-free requirements of
IPC/JEDEC J STD-020.
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2004, 2005. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
