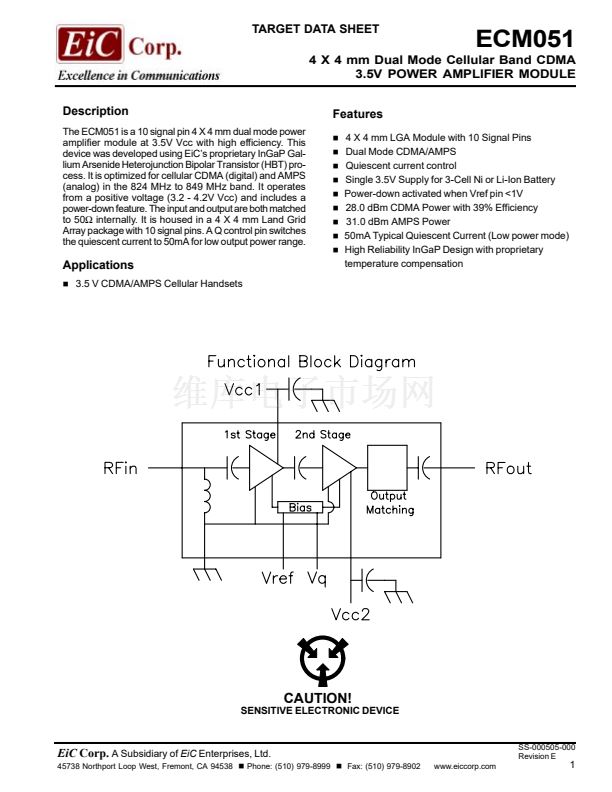

TARGET DATA SHEET
ECM051
4 X 4 mm Dual Mode Cellular Band CDMA
3.5V POWER AMPLIFIER MODULE
Description
The ECM051 is a 10 signal pin 4 X 4 mm dual mode power
amplifier module at 3.5V Vcc with high efficiency. This
device was developed using EiC鈥檚 proprietary InGaP Gal-
lium Arsenide Heterojunction Bipolar Transistor (HBT) pro-
cess. It is optimized for cellular CDMA (digital) and AMPS
(analog) in the 824 MHz to 849 MHz band. It operates
from a positive voltage (3.2 - 4.2V Vcc) and includes a
power-down feature. The input and output are both matched
to 50鈩?internally. It is housed in a 4 X 4 mm Land Grid
Array package with 10 signal pins. A Q control pin switches
the quiescent current to 50mA for low output power range.
Features
4 X 4 mm LGA Module with 10 Signal Pins
Dual Mode CDMA/AMPS
Quiescent current control
Single 3.5V Supply for 3-Cell Ni or Li-Ion Battery
Power-down activated when Vref pin <1V
28.0 dBm CDMA Power with 39% Efficiency
31.0 dBm AMPS Power
50mA Typical Quiescent Current (Low power mode)
High Reliability InGaP Design with proprietary
temperature compensation
Applications
3.5 V CDMA/AMPS Cellular Handsets
CAUTION!
SENSITIVE ELECTRONIC DEVICE
EiC
Corp.
A Subsidiary of
EiC
Enterprises, Ltd.
45738 Northport Loop West, Fremont, CA 94538
Phone: (510) 979-8999
Fax: (510) 979-8902
www.eiccorp.com
SS-000505-000
Revision E
