ECLSOIC8EVB Datasheet

  • ECLSOIC8EVB

  • Evaluation Board Manual for High Frequency SOIC 8

  • 20頁

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

ECLSOIC8EVB
Evaluation Board Manual
for High Frequency SOIC 8
http://onsemi.com
EVALUATION BOARD MANUAL
INTRODUCTION
ON Semiconductor has developed an evaluation board for
the devices in 8鈭抣ead SOIC package. These evaluation
boards are offered as a convenience for the customers
interested in performing their own engineering assessment
on the general performance of the 8鈭抣ead SOIC device
samples. The board provides a high bandwidth 50
W
controlled impedance environment. The pictures in Figure 1
show the top and bottom view of the evaluation board, which
can be configured in several different ways, depending on

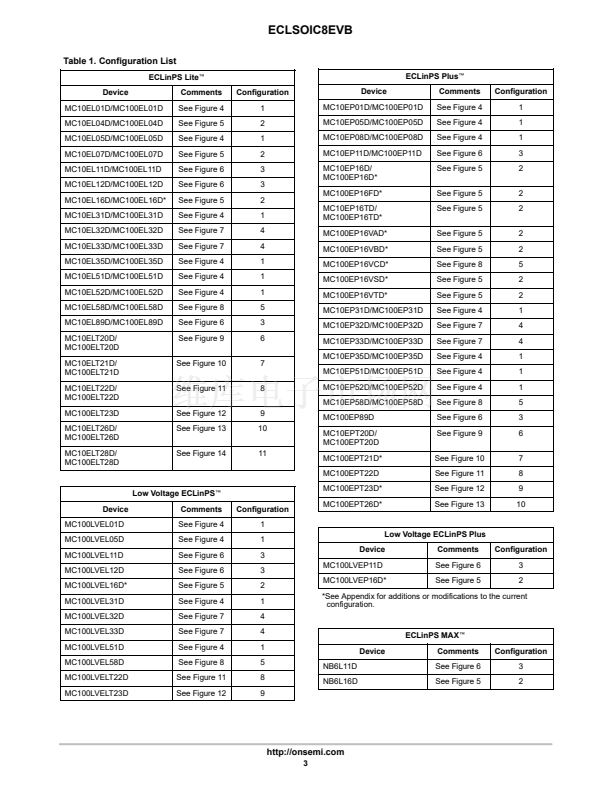

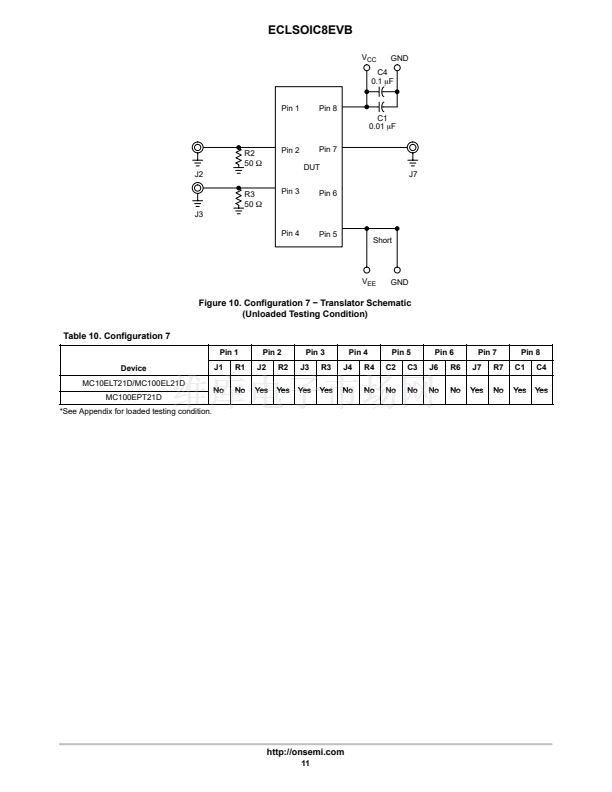

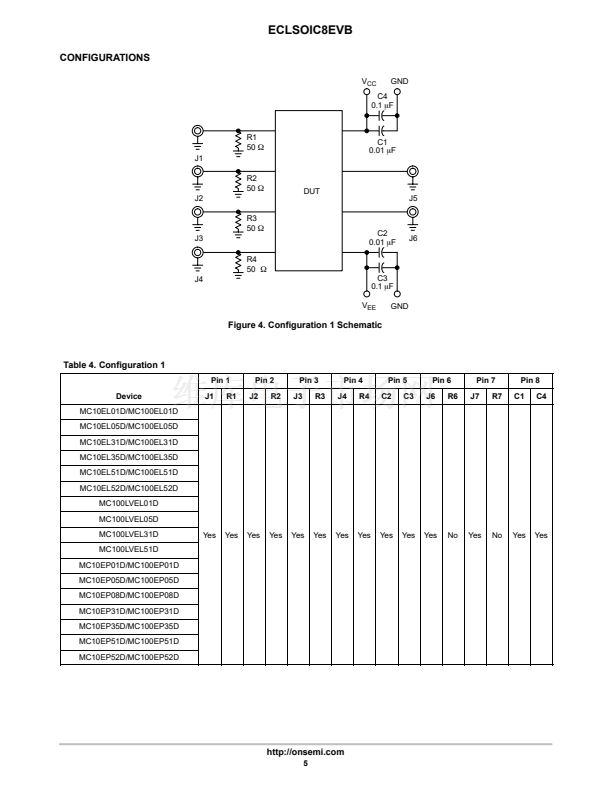

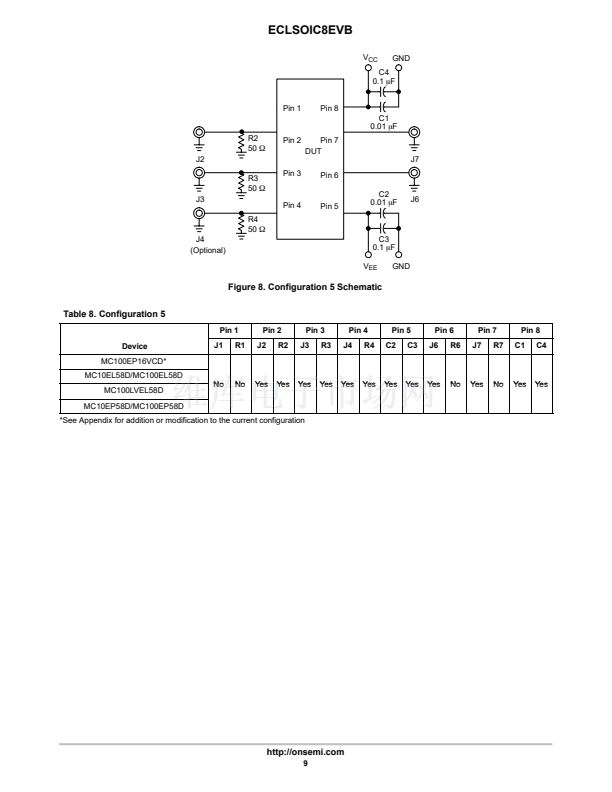

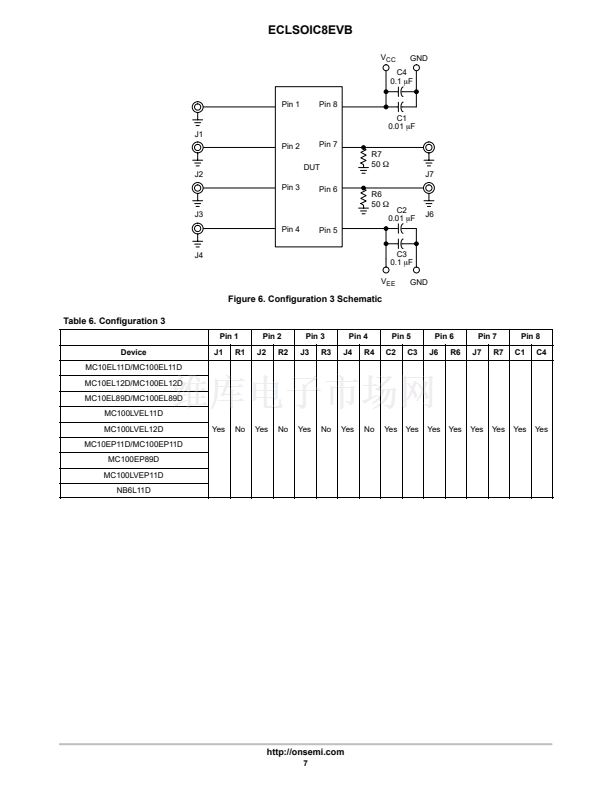

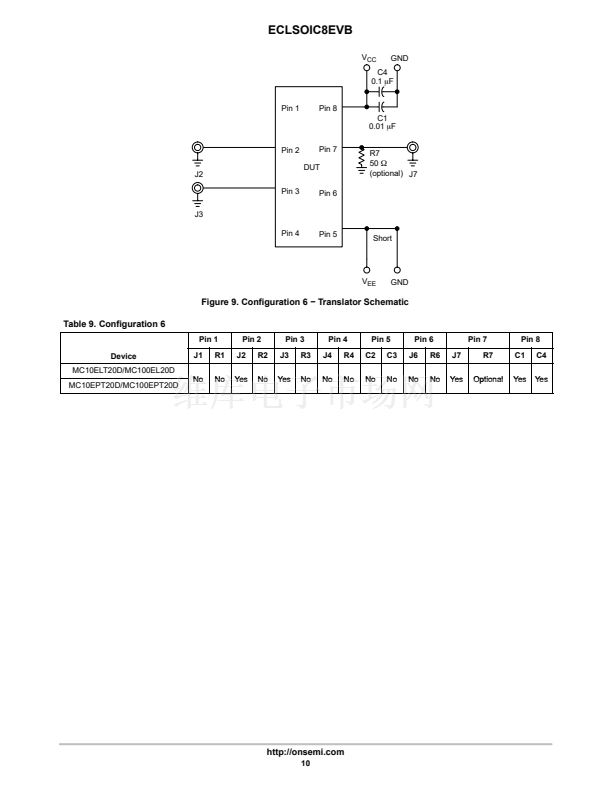

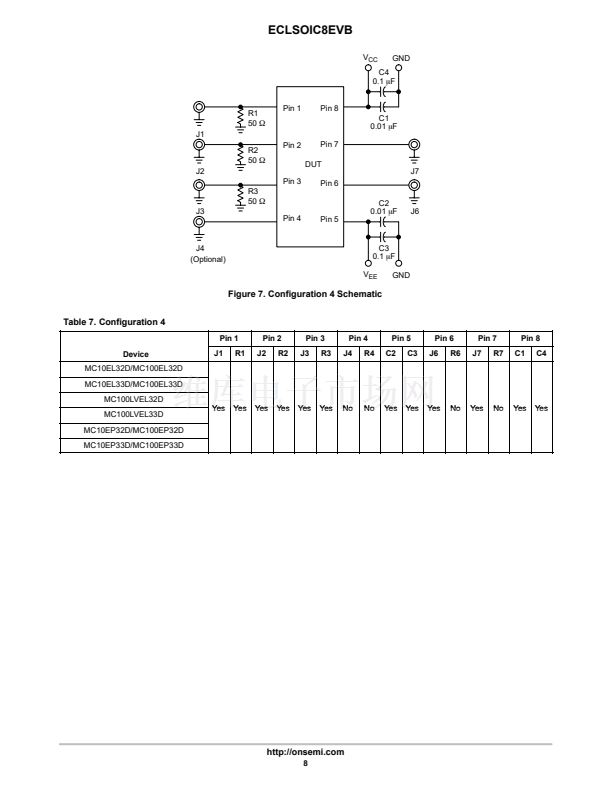

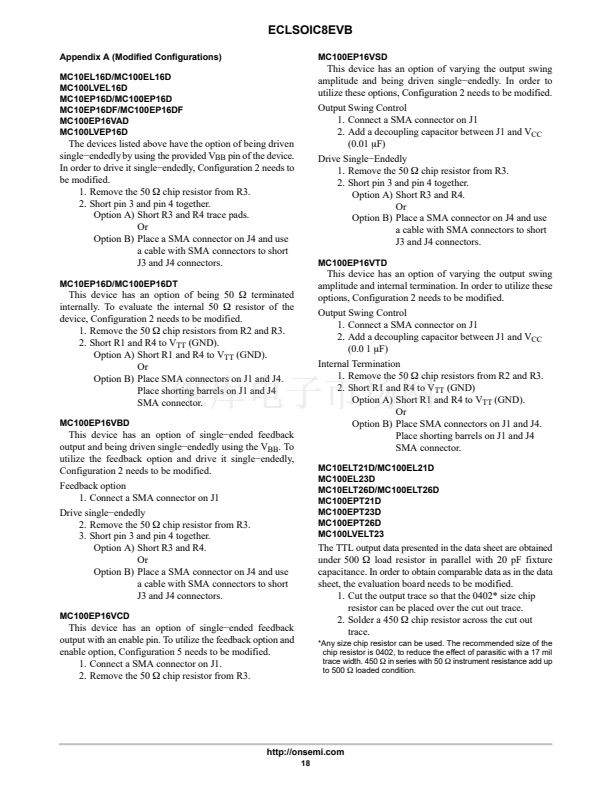

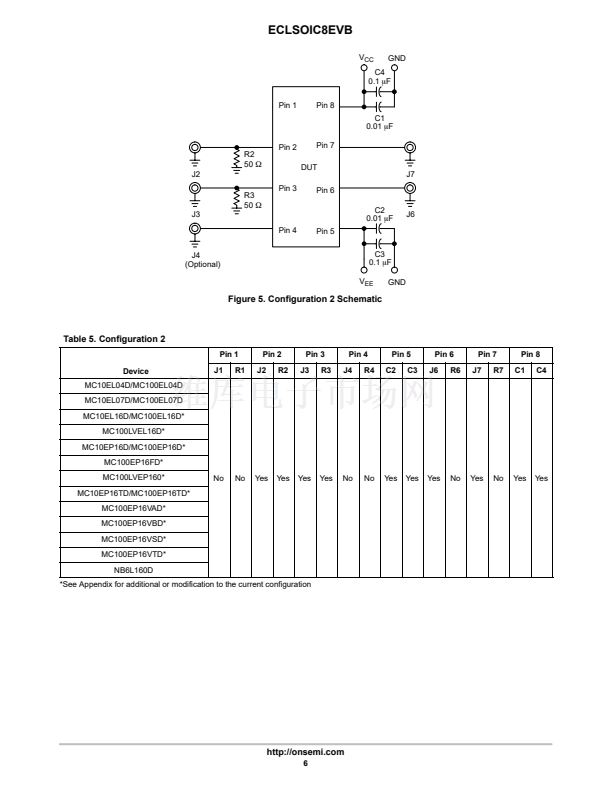

device under test (See Table 1. Configuration List).
This evaluation board manual contains:
鈥?/div>
Information on 8鈭抣ead SOIC Evaluation Board
鈥?/div>
Assembly Instructions
鈥?/div>

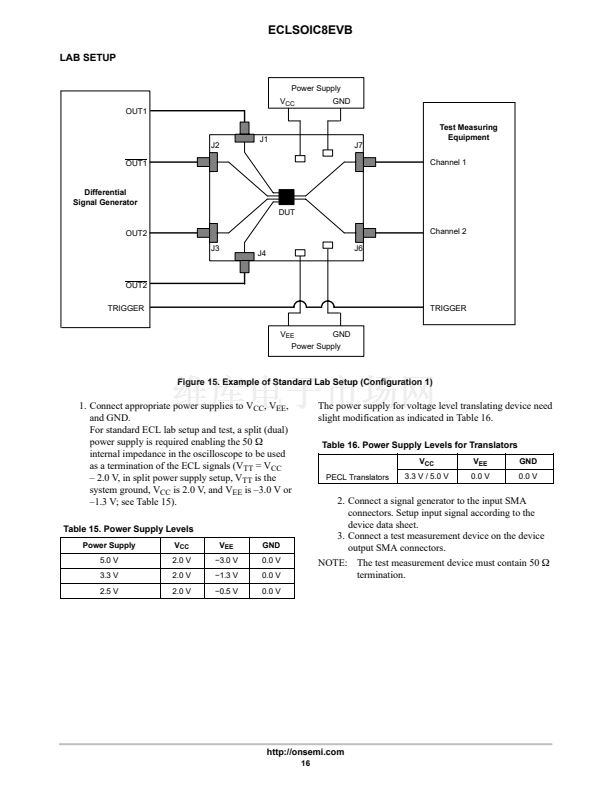

Appropriate Lab Setup
鈥?/div>

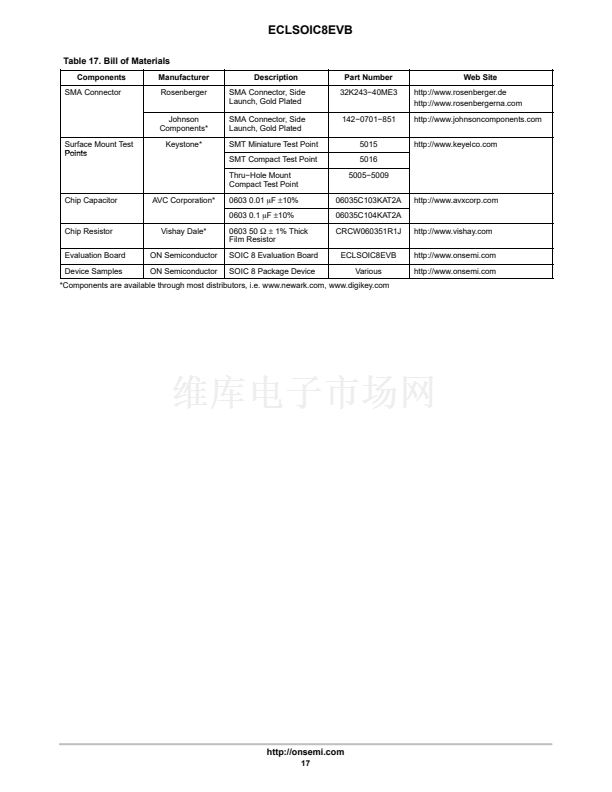

Bill of Materials
This manual should be used in conjunction with the device
data sheet, which contains full technical details on the device
specifications and operation.

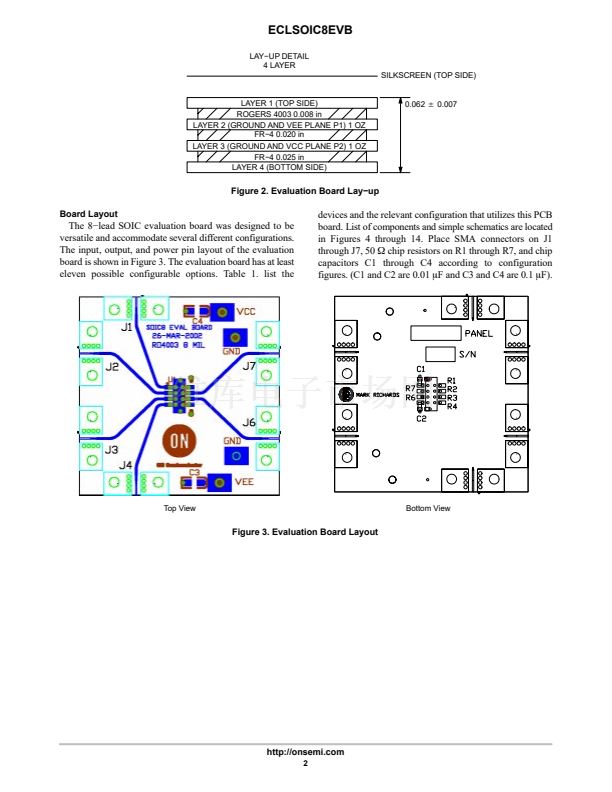

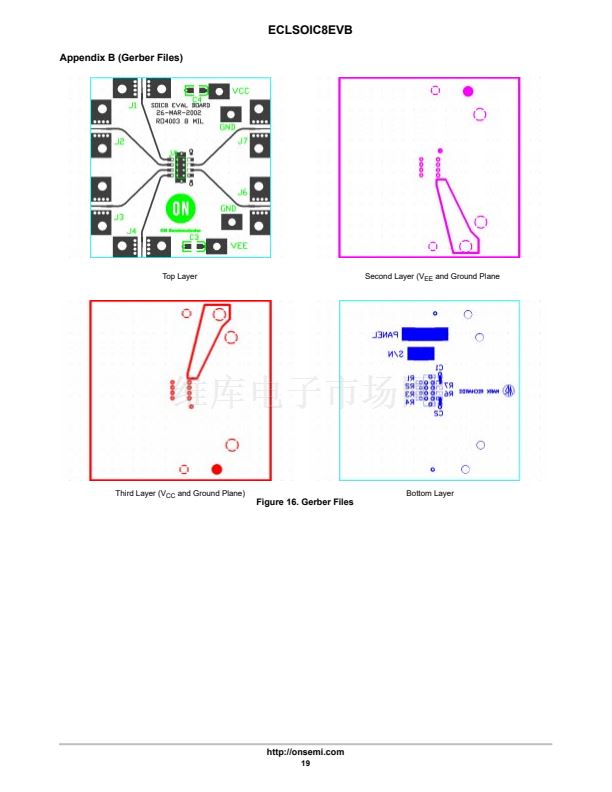

Board Lay鈭扷p
The 8鈭抣ead SOIC evaluation board is implemented in four
layers with split (dual) power supplies (Figure 2.
Evaluation Board Lay鈭抲p). For standard ECL lab setup and
test, a split (dual) power supply is essential to enable the
50
W
internal impedance in the oscilloscope as a termination
for ECL devices. The first layer or primary trace layer is
0.008鈥?thick Rogers RO4003 material, which is designed to
have equal electrical length on all signal traces from the
device under the test (DUT) to the sense output. The second
layer is the 1.0 oz copper ground plane and a portion of the
plane is the V
EE
power plane. The FR4 dielectric material is
placed between second and third layer and between third and
fourth layer. The third layer is also 1.0 oz copper ground
plane and a portion of this layer is V
CC
power plane. The
fourth layer is the secondary trace layer.

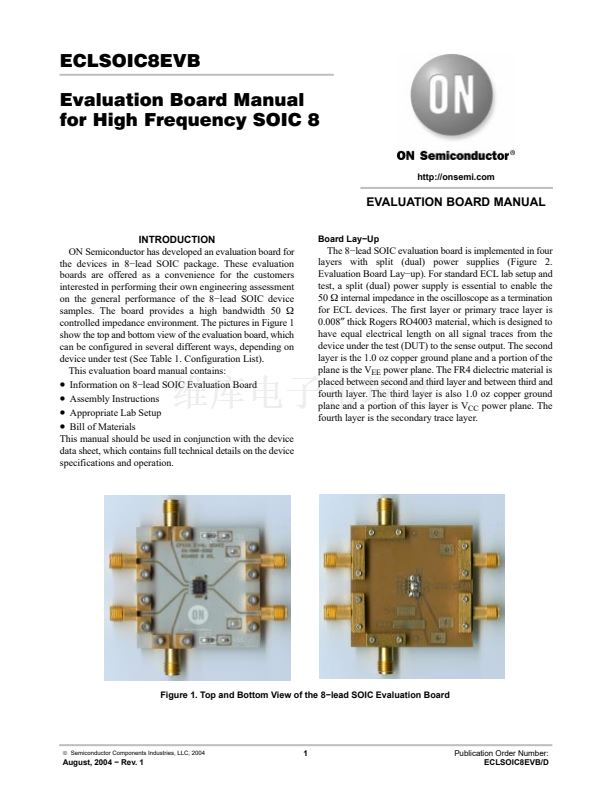

Figure 1. Top and Bottom View of the 8鈭抣ead SOIC Evaluation Board
漏
Semiconductor Components Industries, LLC, 2004
1
August, 2004 鈭?Rev. 1
Publication Order Number:
ECLSOIC8EVB/D
