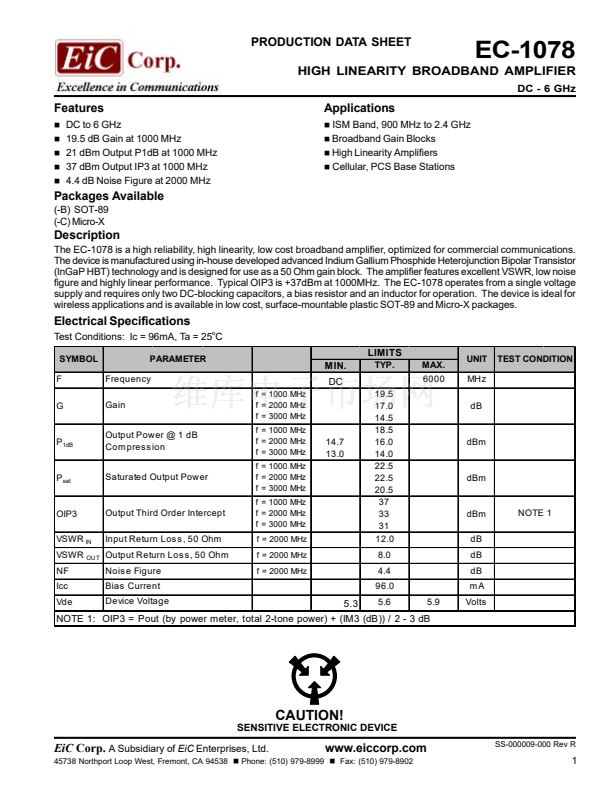

PRODUCTION DATA SHEET
EC-1078
DC - 6 GHz
HIGH LINEARITY BROADBAND AMPLIFIER
Features
DC to 6 GHz
19.5 dB Gain at 1000 MHz
21 dBm Output P1dB at 1000 MHz
37 dBm Output IP3 at 1000 MHz
4.4 dB Noise Figure at 2000 MHz
Applications
ISM Band, 900 MHz to 2.4 GHz
Broadband Gain Blocks
High Linearity Amplifiers
Cellular, PCS Base Stations
Packages Available

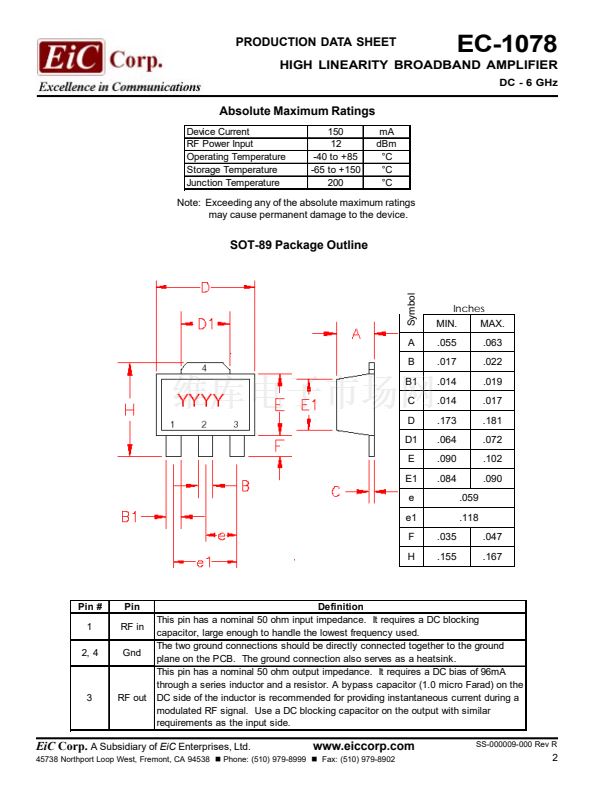

(-B) SOT-89

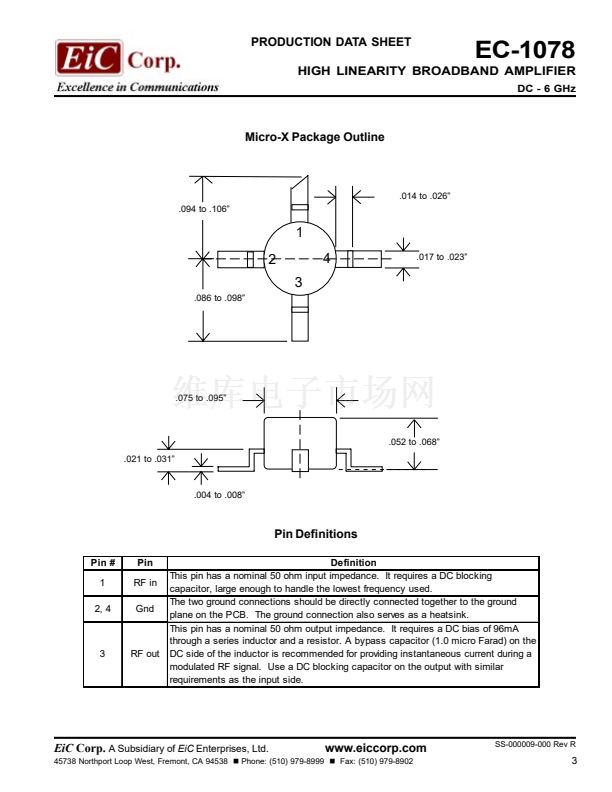

(-C) Micro-X
Description
The EC-1078 is a high reliability, high linearity, low cost broadband amplifier, optimized for commercial communications.
The device is manufactured using in-house developed advanced Indium Gallium Phosphide Heterojunction Bipolar Transistor
(InGaP HBT) technology and is designed for use as a 50 Ohm gain block. The amplifier features excellent VSWR, low noise
figure and highly linear performance. Typical OIP3 is +37dBm at 1000MHz. The EC-1078 operates from a single voltage

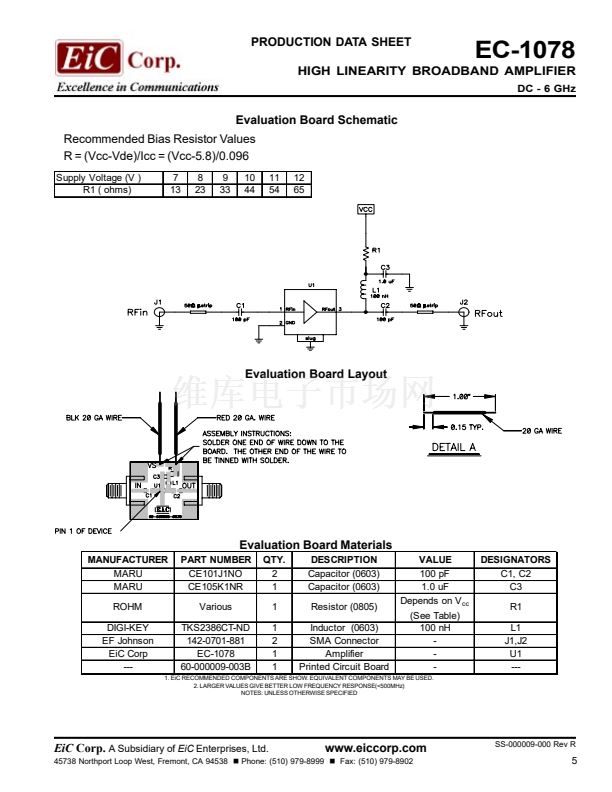

supply and requires only two DC-blocking capacitors, a bias resistor and an inductor for operation. The device is ideal for
wireless applications and is available in low cost, surface-mountable plastic SOT-89 and Micro-X packages.
Electrical Specifications
Test Conditions: Ic = 96mA, Ta = 25
o
C
SYMBOL
F
G
PARAMETER
Frequency
Gain
Output Power @ 1 dB
Com pres s ion
Saturated Output Power
f = 1000 MHz
f = 2000 MHz
f = 3000 MHz
f = 1000 MHz
f = 2000 MHz
f = 3000 MHz
f = 1000 MHz
f = 2000 MHz
f = 3000 MHz
f = 1000 MHz
f = 2000 MHz
f = 3000 MHz
f = 2000 MHz
f = 2000 MHz
f = 2000 MHz
LIMITS
MIN.
DC
19.5
17.0
14.5
18.5
16.0
14.0
22.5
22.5
20.5
37
33
31
12.0
8.0
4.4
96.0
TYP.
MAX.
6000
UNIT
MHz
dB
TEST CONDITION
P
1dB
14.7
13.0
dBm
P
sat
dBm
OIP3
VSWR
IN
VSWR
NF
Icc
Vde
OUT
Output Third Order Intercept
Input Return Los s , 50 Ohm
Output Return Los s , 50 Ohm
Nois e Figure
Bias Current
Device Voltage
dBm
dB
dB
dB
mA
5.9
Volts
NOTE 1
5.3
5.6
NOTE 1: OIP3 = Pout (by power meter, total 2-tone power) + (IM3 (dB)) / 2 - 3 dB
