SBD
Type :
EA30QS04
EA30QS04

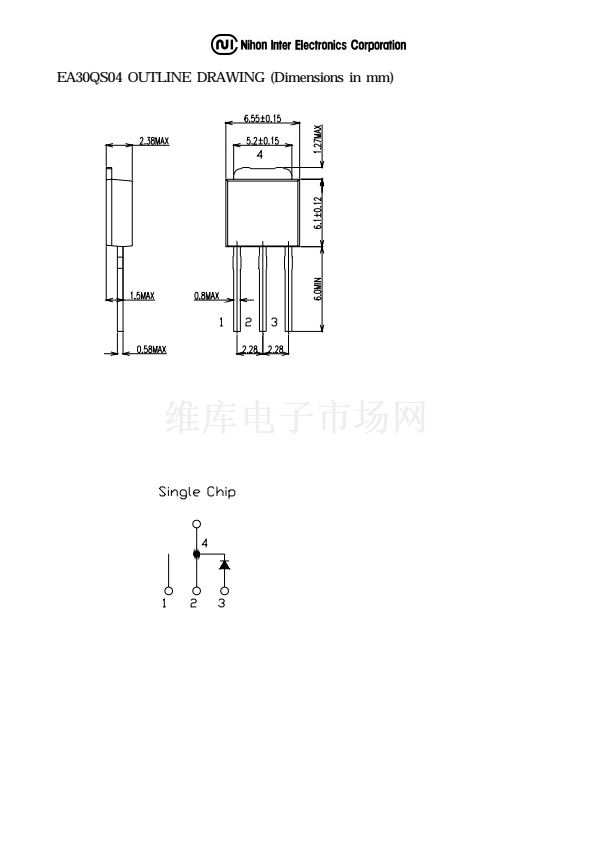

OUTLINE DRAWING
FEATURES
* TO-251AA Case
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available
Maximum Ratings
Rating
Repetitive Peak Reverse Voltage
Non-repetitive Peak Reverse Voltage
P.C.Board
Average Rectified
mounted *
Output Current
-
RMS Forward Current
Surge Forward Current
Operating JunctionTemperature Range
Storage Temperature Range
Symbol
V
RRM
V
RSM
I
O
I
F(RMS)
I
FSM
Tjw
Tstg
45
1.8
3.0
Ta=24擄C
Tc=131擄C
Approx Net Weight:0.35g
EA30QS04
40
45
50Hz Half Sine Wave
Resistive Load
Unit
V
V
A
A
A
擄C
擄C
4.71
50Hz Half Sine Wave,1cycle,
Non-repetitive
- 40 to + 150
- 40 to + 150
Electrical
鈥?/div>
Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Junction to Ambient
Thermal
Resistance
Junction to Case
* Print Land = 20x20 mm
Symbol
Conditions
Min Typ Max
-
-
-
-
-
-
-
-
3.0
0.55
80
6
Unit
mA
V
擄C/W
擄C/W
I
RM
Tj=25擄C,V
RM
=V
RRM
V
FM
Tj=25擄C,I
FM
= 3 A
Rth(j-a) P.C.Board mounted *
Rth(j-c)
-
1
2
