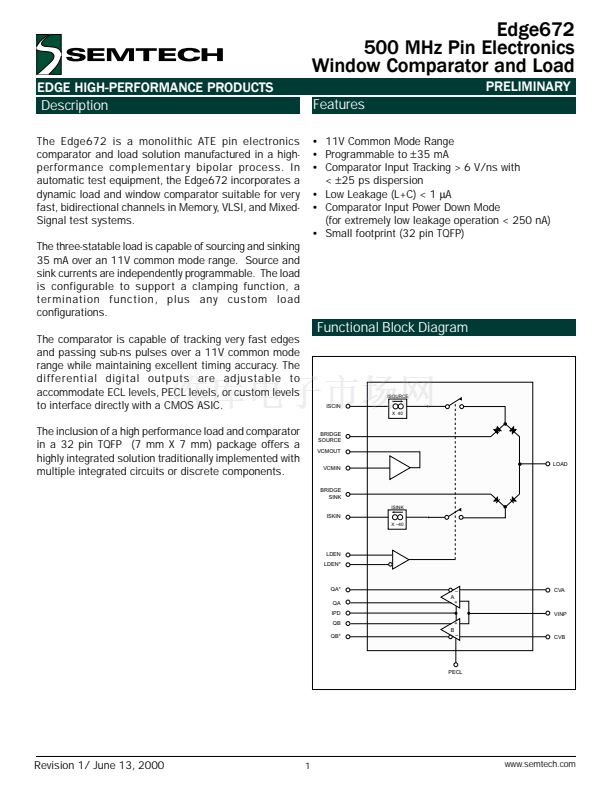

Edge672

500 MHz Pin Electronics

Window Comparator and Load

EDGE HIGH-PERFORMANCE PRODUCTS

Description

The Edge672 is a monolithic ATE pin electronics

comparator and load solution manufactured in a high-

performance complementary bipolar process. In

automatic test equipment, the Edge672 incorporates a

dynamic load and window comparator suitable for very

fast, bidirectional channels in Memory, VLSI, and Mixed-

Signal test systems.

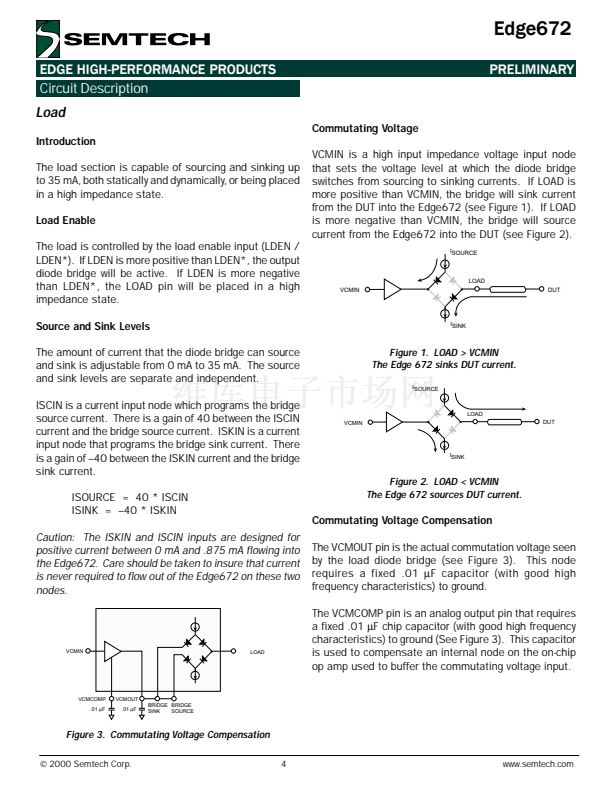

The three-statable load is capable of sourcing and sinking

35 mA over an 11V common mode range. Source and

sink currents are independently programmable. The load

is configurable to support a clamping function, a

termination function, plus any custom load

configurations.

PRELIMINARY

Features

鈥?11V Common Mode Range

鈥?Programmable to

鹵35

鈥?Comparator Input Tracking > 6 V/ns with

鹵25

ps dispersion

鈥?Low Leakage (L+C) < 1

碌A

鈥?Comparator Input Power Down Mode

(for extremely low leakage operation < 250 nA)

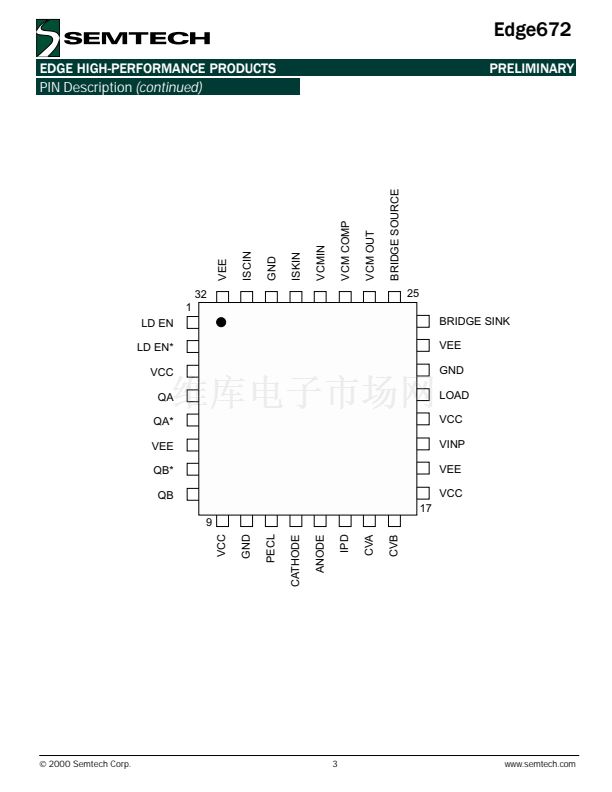

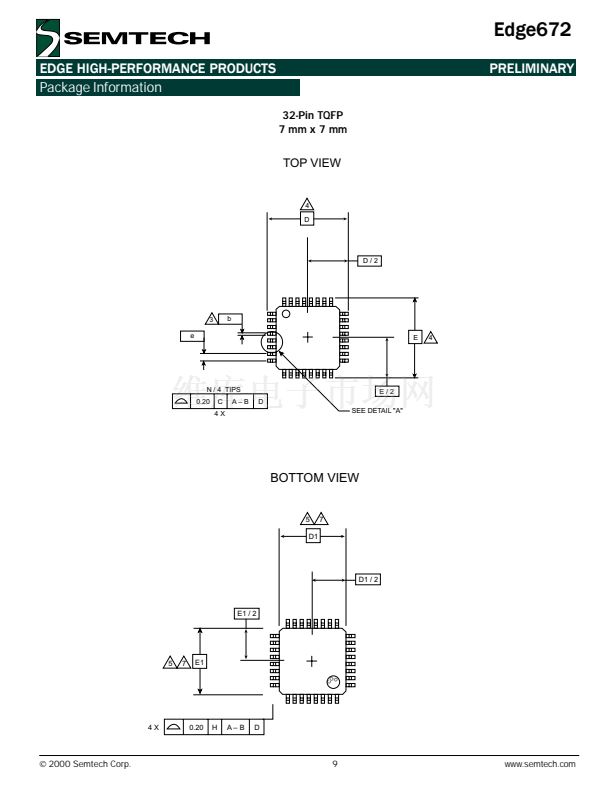

鈥?Small footprint (32 pin TQFP)

Functional Block Diagram

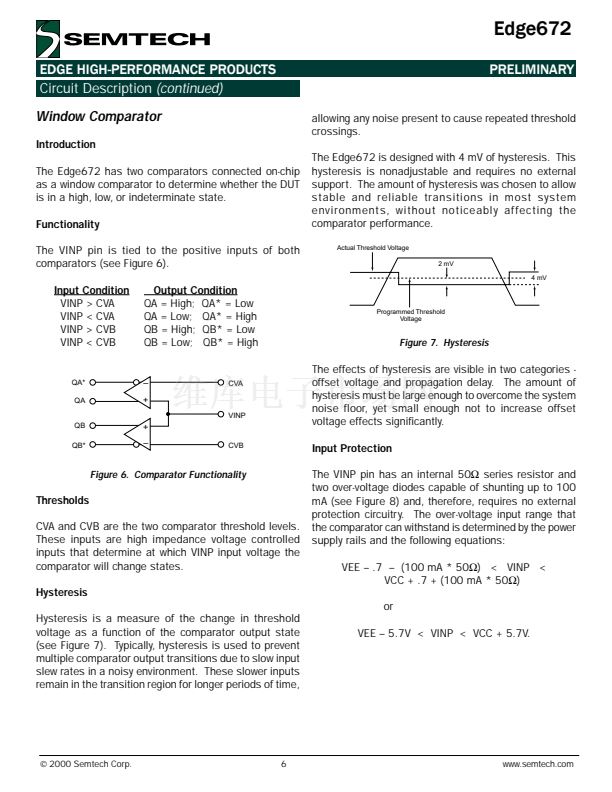

The comparator is capable of tracking very fast edges

and passing sub-ns pulses over a 11V common mode

range while maintaining excellent timing accuracy. The

differential digital outputs are adjustable to

accommodate ECL levels, PECL levels, or custom levels

to interface directly with a CMOS ASIC.

The inclusion of a high performance load and comparator

in a 32 pin TQFP (7 mm X 7 mm) package offers a

highly integrated solution traditionally implemented with

multiple integrated circuits or discrete components.

ISOURCE

ISCIN

X 40

BRIDGE

SOURCE

VCMOUT

VCMIN

LOAD

BRIDGE

SINK

ISINK

ISKIN

X 鈥?0

LDEN

LDEN*

QA*

IPD

QB*

鈥?/div>

CVA

VINP

鈥?/div>

CVB

PECL

Revision 1/ June 13, 2000

www.semtech.com
