E4707B-EDGE4707B Datasheet

  • E4707B-EDGE4707B

  • Quad Channel Per-Pin Precision Measurement Unit

  • 194.72KB

  • 25頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

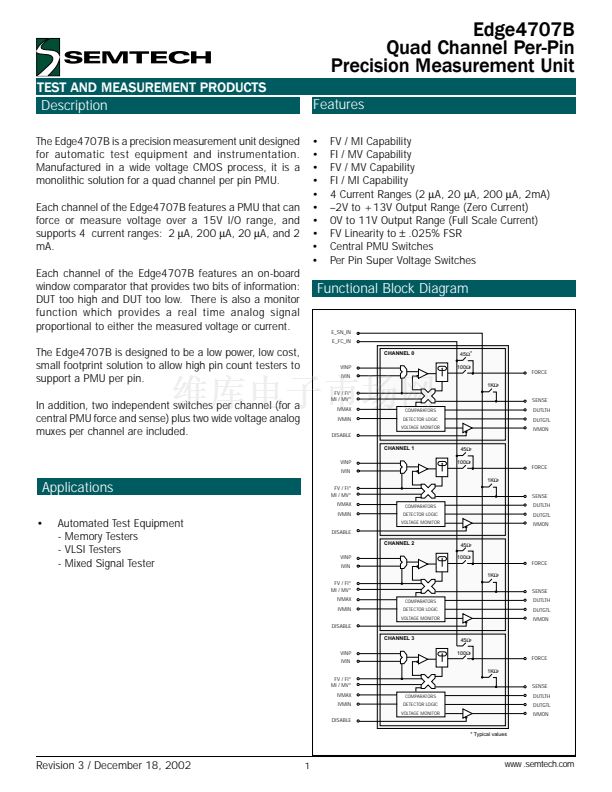

Edge4707B
Quad Channel Per-Pin
Precision Measurement Unit
TEST AND MEASUREMENT PRODUCTS
Description
The Edge4707B is a precision measurement unit designed
for automatic test equipment and instrumentation.
Manufactured in a wide voltage CMOS process, it is a
monolithic solution for a quad channel per pin PMU.
Each channel of the Edge4707B features a PMU that can
force or measure voltage over a 15V I/O range, and
supports 4 current ranges: 2
碌A(chǔ),
200
碌A(chǔ),
20
碌A(chǔ),
and 2
mA.
Each channel of the Edge4707B features an on-board
window comparator that provides two bits of information:
DUT too high and DUT too low. There is also a monitor
function which provides a real time analog signal
proportional to either the measured voltage or current.
The Edge4707B is designed to be a low power, low cost,
small footprint solution to allow high pin count testers to
support a PMU per pin.
In addition, two independent switches per channel (for a
central PMU force and sense) plus two wide voltage analog
muxes per channel are included.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
FV / MI Capability
FI / MV Capability
FV / MV Capability
FI / MI Capability
4 Current Ranges (2
碌A(chǔ),
20
碌A(chǔ),
200
碌A(chǔ),
2mA)
鈥?V to +13V Output Range (Zero Current)
0V to 11V Output Range (Full Scale Current)
FV Linearity to
鹵
.025% FSR
Central PMU Switches
Per Pin Super Voltage Switches
Functional Block Diagram
E_SN_IN
E_FC_IN
CHANNEL 0
VINP
IVIN
1K鈩︹垪
FV / FI*
MI / MV*
IVMAX
IVMIN
DISABLE
CHANNEL 1
VINP
IVIN
45鈩︹垪
100鈩︹垪
FORCE
1K鈩︹垪
FV / FI*
MI / MV*
IVMAX
IVMIN
COMPARATORS
DETECTOR LOGIC
VOLTAGE MONITOR
COMPARATORS
DETECTOR LOGIC
VOLTAGE MONITOR
45鈩?
100鈩︹垪
FORCE
SENSE
DUTLTH
DUTGTL
IVMON
Applications
鈥?/div>
Automated Test Equipment
- Memory Testers
- VLSI Testers
- Mixed Signal Tester
SENSE
DUTLTH
DUTGTL
IVMON
DISABLE
CHANNEL 2
VINP
IVIN
1K鈩︹垪
FV / FI*
MI / MV*
IVMAX
IVMIN
DISABLE
CHANNEL 3
VINP
IVIN
1K鈩︹垪
FV / FI*
MI / MV*
IVMAX
IVMIN
DISABLE
* Typical values
COMPARATORS
DETECTOR LOGIC
VOLTAGE MONITOR
COMPARATORS
DETECTOR LOGIC
VOLTAGE MONITOR
45鈩︹垪
100鈩︹垪
FORCE
SENSE
DUTLTH
DUTGTL
IVMON
45鈩︹垪
100鈩︹垪
FORCE
SENSE
DUTLTH
DUTGTL
IVMON
Revision 3 / December 18, 2002
1
www .semtech.com
