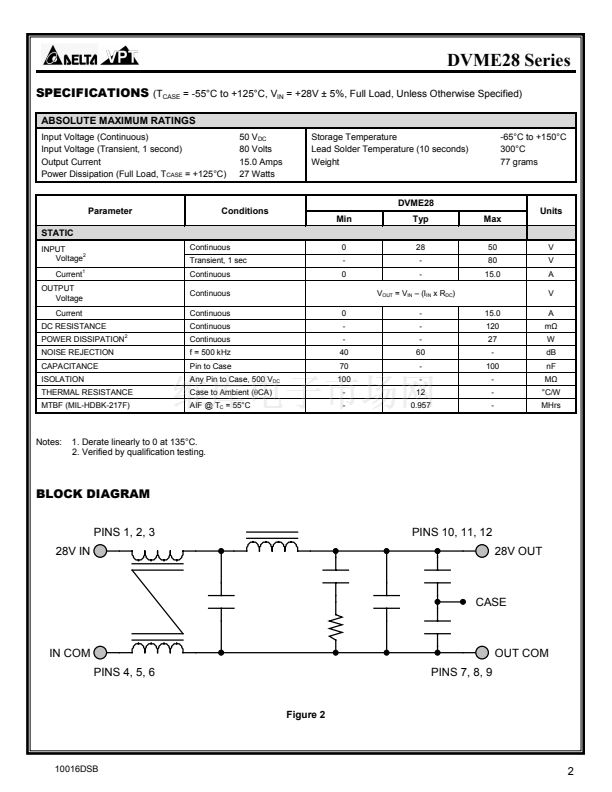

DVME28 Series

HIGH RELIABILITY HYBRID

EMI FILTERS

DESCRIPTION

The DVME series of hybrid EMI filters is operable

over the full military (-55 擄C to +125 擄C) temperature

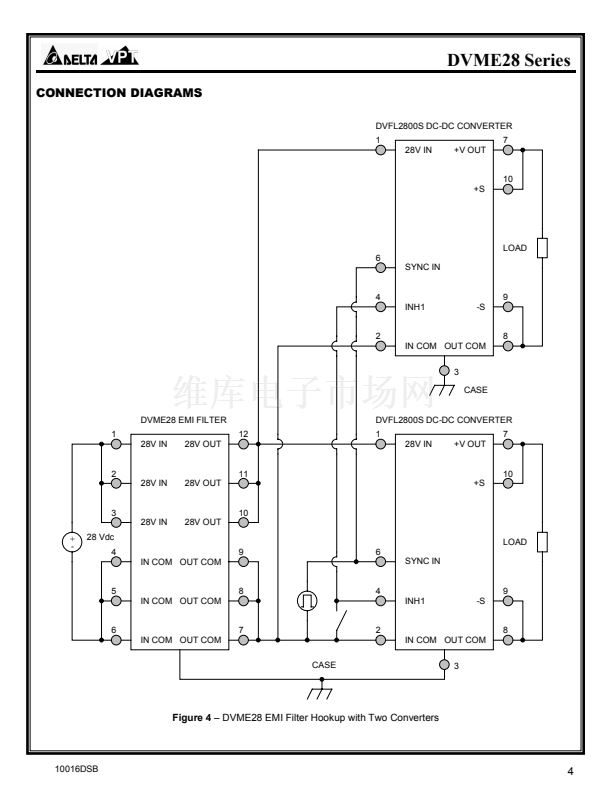

range with no power derating. The DVME EMI filter

is designed to filter conducted emissions of two

DVFL series DC-DC converters.

These filters are designed and manufactured in a

facility qualified to ISO9001, compliant to AS9000,

and certified to MIL-PRF-38534 and MIL-STD-883.

FEATURES

路

路

路

路

路

路

路

路

路

路

路

路

High Reliability

Wide Input Voltage Range: 0 to 50 Volts per

MIL-STD-704

Up to 15.0 Amps Maximum Current

40 dB Minimum Attenuation at 500 kHz

Industry Standard Pinout

High Input Transient Voltage: 80 Volts for 1 sec

per MIL-STD-704A

Precision Seam Welded Hermetic Package

Custom Versions Available

Additional Environmental Screening Available

Meets MIL-STD-461C and MIL-STD-461D EMC

Requirements

Protects Against Conducted Susceptibility

Specified in MIL-STD-461C, CS01 and CS02

MIL-PRF-38534 Element Evaluated

Components

Figure 1

鈥?DVME28 EMI Filter

(Not

To Scale)

10016DSB
