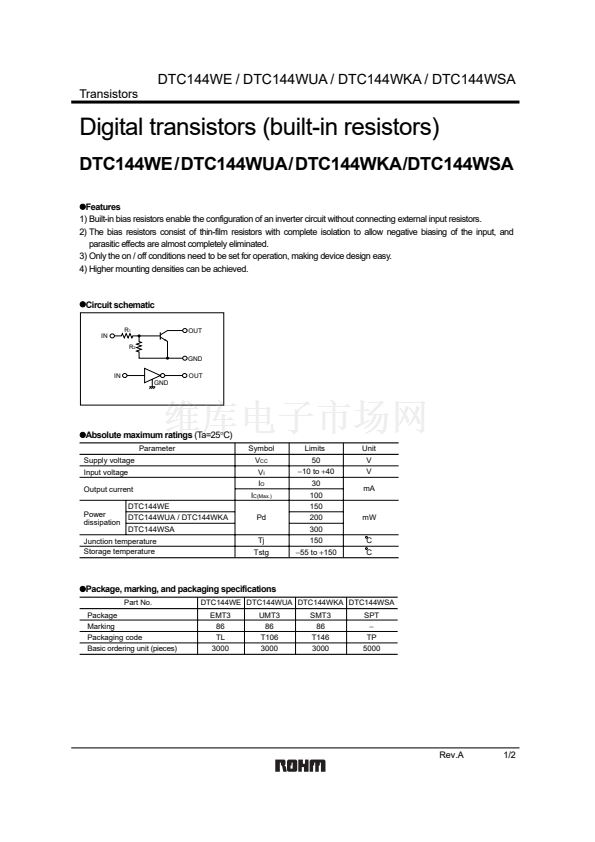

DTC144WE / DTC144WUA / DTC144WKA / DTC144WSA
Transistors
Digital transistors (built-in resistors)
DTC144WE / DTC144WUA / DTC144WKA /DTC144WSA
Features
1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors.
2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input, and
parasitic effects are almost completely eliminated.
3) Only the on / off conditions need to be set for operation, making device design easy.
4) Higher mounting densities can be achieved.
Circuit schematic
R
1
R
2
IN
OUT
GND
IN
GND
OUT
Absolute maximum ratings
(Ta=25擄C)
Parameter
Supply voltage
Input voltage
Output current
Power
dissipation
DTC144WE
DTC144WUA / DTC144WKA
DTC144WSA
Tj
Tstg
Symbol
V
CC
V
I
I
O
I
C(Max.)
Limits
50
鈭?0
to
+40
30
100
150
200
300
150
鈭?5
to
+150
Unit
V
V
mA
Pd
mW
C
C
Junction temperature
Storage temperature
Package, marking, and packaging specifications
Part No.
DTC144WE DTC144WUA DTC144WKA DTC144WSA
Package
Marking
Packaging code
Basic ordering unit (pieces)
EMT3
86
TL
3000
UMT3
86
T106
3000
SMT3
86
T146
3000
SPT
