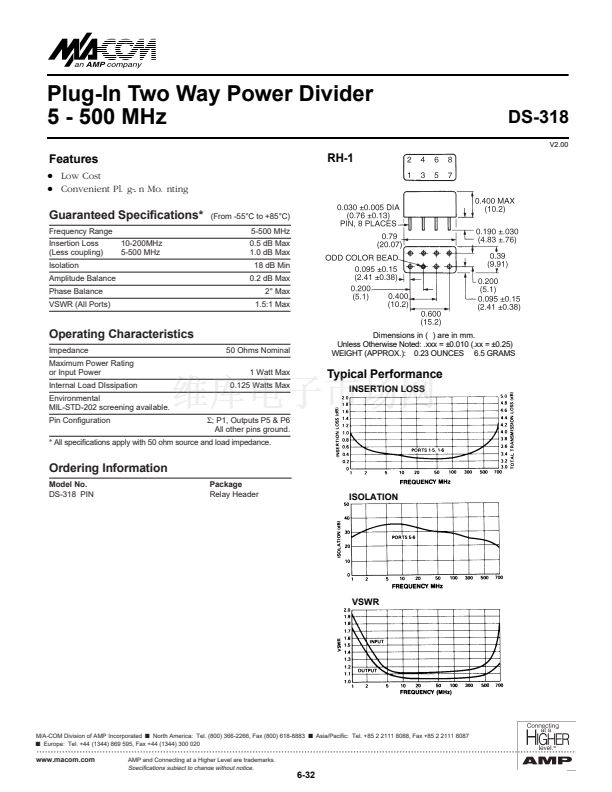

Plug-In Two Way Power Divider
5 - 500 MHz
Features
q
q
DS-318
V2.00
RH-1
Low Cost
Convenient Plug-In Mounting
(From -55擄C to +85擄C)
5-500 MHz
10-200MHz
5-500 MHz
0.5 dB Max
1.0 dB Max
18 dB Min
0.2 dB Max
2擄 Max
1.5:1 Max
Guaranteed Speci鏗乧ations*
Frequency Range
Insertion Loss
(Less coupling)
Isolation
Amplitude Balance
Phase Balance
VSWR (All Ports)
Operating Characteristics
Impedance
Maximum Power Rating
or Input Power
Internal Load DIssipation
Environmental
MIL-STD-202 screening available.
Pin Con鏗乬uration
危;
P1, Outputs P5 & P6
All other pins ground.
50 Ohms Nominal
1 Watt Max
0.125 Watts Max
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .xxx = 鹵0.010 (.xx = 鹵0.25)
WEIGHT (APPROX.): 0.23 OUNCES 6.5 GRAMS
Typical Performance
INSERTION LOSS
* All speci鏗乧ations apply with 50 ohm source and load impedance.
Ordering Information
Model No.
DS-318 PIN
Package
Relay Header
ISOLATION
VSWR
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Paci鏗乧: Tel. +85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Speci鏗乧ations subject to change without notice.
6-32
