DS90LV047A 3V LVDS Quad CMOS Differential Line Driver
July 1999
DS90LV047A
3V LVDS Quad CMOS Differential Line Driver
General Description
The DS90LV047A is a quad CMOS flow-through differential
line driver designed for applications requiring ultra low power
dissipation and high data rates. The device is designed to
support data rates in excess of 400 Mbps (200 MHz) utilizing
Low Voltage Differential Signaling (LVDS) technology.
The DS90LV047A accepts low voltage TTL/CMOS input lev-
els and translates them to low voltage (350 mV) differential
output signals. In addition, the driver supports a TRI-STATE
廬
function that may be used to disable the output stage, dis-
abling the load current, and thus dropping the device to an
ultra low idle power state of 13 mW typical. The
DS90LV047A has a flow-through pinout for easy PCB layout.
The EN and EN* inputs are ANDed together and control the
TRI-STATE outputs. The enables are common to all four
drivers. The DS90LV047A and companion line receiver
(DS90LV048A) provide a new alternative to high power
psuedo-ECL devices for high speed point-to-point interface
applications.
Features
n
n
n
n
n
n
n
n
n
n
n
n
n
>
400 Mbps (200 MHz) switching rates
Flow-through pinout simplifies PCB layout
300 ps typical differential skew
400 ps maximum differential skew
1.7 ns maximum propagation delay
3.3V power supply design
鹵
350 mV differential signaling
Low power dissipation (13mW at 3.3V static)
Interoperable with existing 5V LVDS receivers
High impedance on LVDS outputs on power down
Conforms to TIA/EIA-644 LVDS Standard
Industrial operating temperature range (鈭?0藲C to +85藲C)
Available in surface mount (SOIC) and low profile
TSSOP package
Connection Diagram
Dual-In-Line
Functional Diagram
DS100887-1
Order Number DS90LV047ATM, DS90LV047ATMTC
See NS Package Number M16A, MTC16
DS100887-2
Truth Table
ENABLES
EN
H
EN
*
L or Open
INPUT
D
IN
L
H
All other combinations of ENABLE inputs
X
OUTPUTS
D
OUT+
L
H
Z
D
OUT鈭?/div>
H
L
Z
TRI-STATE
廬
is a registered trademark of National Semiconductor Corporation.
漏 1999 National Semiconductor Corporation
DS100887
www.national.com

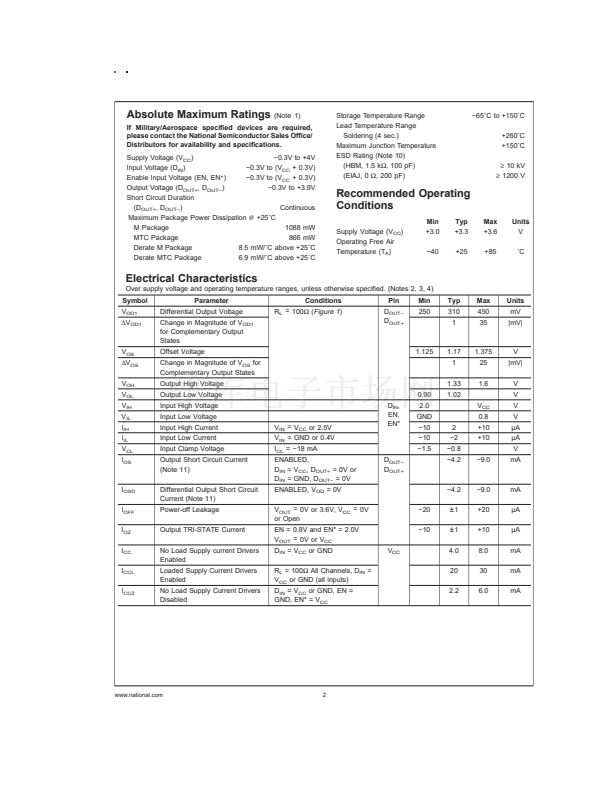

DS90LV047ATMTC 產品屬性

  • National Semiconductor (TI)

  • 4

  • 4

  • 400 Mbps

  • 3.3 V

  • 866 mW

  • + 85 C

  • TSSOP-16

  • Tube

  • - 40 C

  • SMD/SMT

  • 1.7 ns

  • 92

  • 3.6 V

  • 3 V

  • LVDS
