DS3153DK Datasheet

  • DS3153DK

  • Triple DS3/E3/STS-1 LIU Demo Kit

  • 11頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DS3153DK
Triple DS3/E3/STS-1 LIU Demo Kit
www.maxim-ic.com

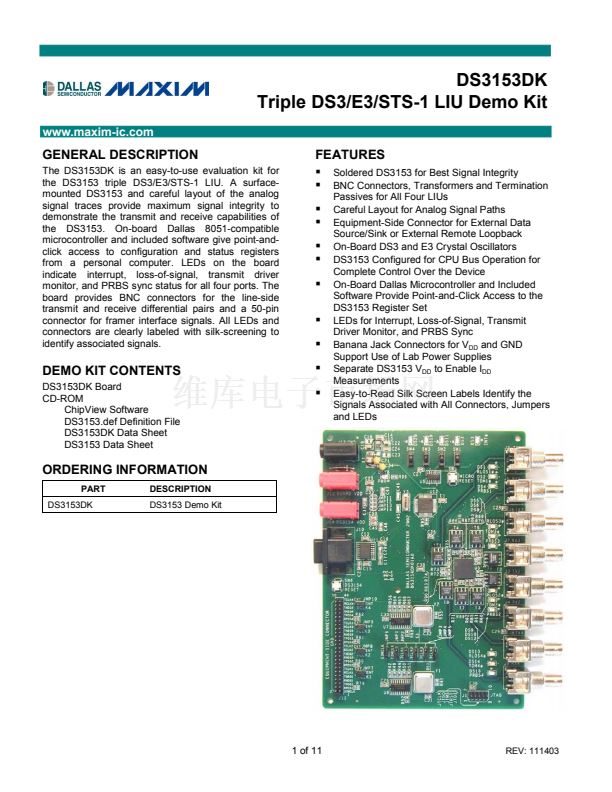

GENERAL DESCRIPTION
The DS3153DK is an easy-to-use evaluation kit for
the DS3153 triple DS3/E3/STS-1 LIU. A surface-
mounted DS3153 and careful layout of the analog
signal traces provide maximum signal integrity to
demonstrate the transmit and receive capabilities of
the DS3153. On-board Dallas 8051-compatible
microcontroller and included software give point-and-
click access to configuration and status registers
from a personal computer. LEDs on the board
indicate interrupt, loss-of-signal, transmit driver
monitor, and PRBS sync status for all four ports. The
board provides BNC connectors for the line-side
transmit and receive differential pairs and a 50-pin
connector for framer interface signals. All LEDs and
connectors are clearly labeled with silk-screening to
identify associated signals.
FEATURES
摟
摟
摟
摟
摟
摟
摟
摟
摟
摟
摟
Soldered DS3153 for Best Signal Integrity
BNC Connectors, Transformers and Termination
Passives for All Four LIUs
Careful Layout for Analog Signal Paths
Equipment-Side Connector for External Data
Source/Sink or External Remote Loopback
On-Board DS3 and E3 Crystal Oscillators
DS3153 Configured for CPU Bus Operation for
Complete Control Over the Device
On-Board Dallas Microcontroller and Included
Software Provide Point-and-Click Access to the
DS3153 Register Set
LEDs for Interrupt, Loss-of-Signal, Transmit
Driver Monitor, and PRBS Sync
Banana Jack Connectors for V
DD
and GND
Support Use of Lab Power Supplies
Separate DS3153 V
DD
to Enable I
DD
Measurements
Easy-to-Read Silk Screen Labels Identify the
Signals Associated with All Connectors, Jumpers
and LEDs
DEMO KIT CONTENTS
DS3153DK Board
CD-ROM
ChipView Software
DS3153.def Definition File
DS3153DK Data Sheet
DS3153 Data Sheet
ORDERING INFORMATION
PART
DS3153DK
DESCRIPTION
DS3153 Demo Kit
1 of 11
REV: 111403
