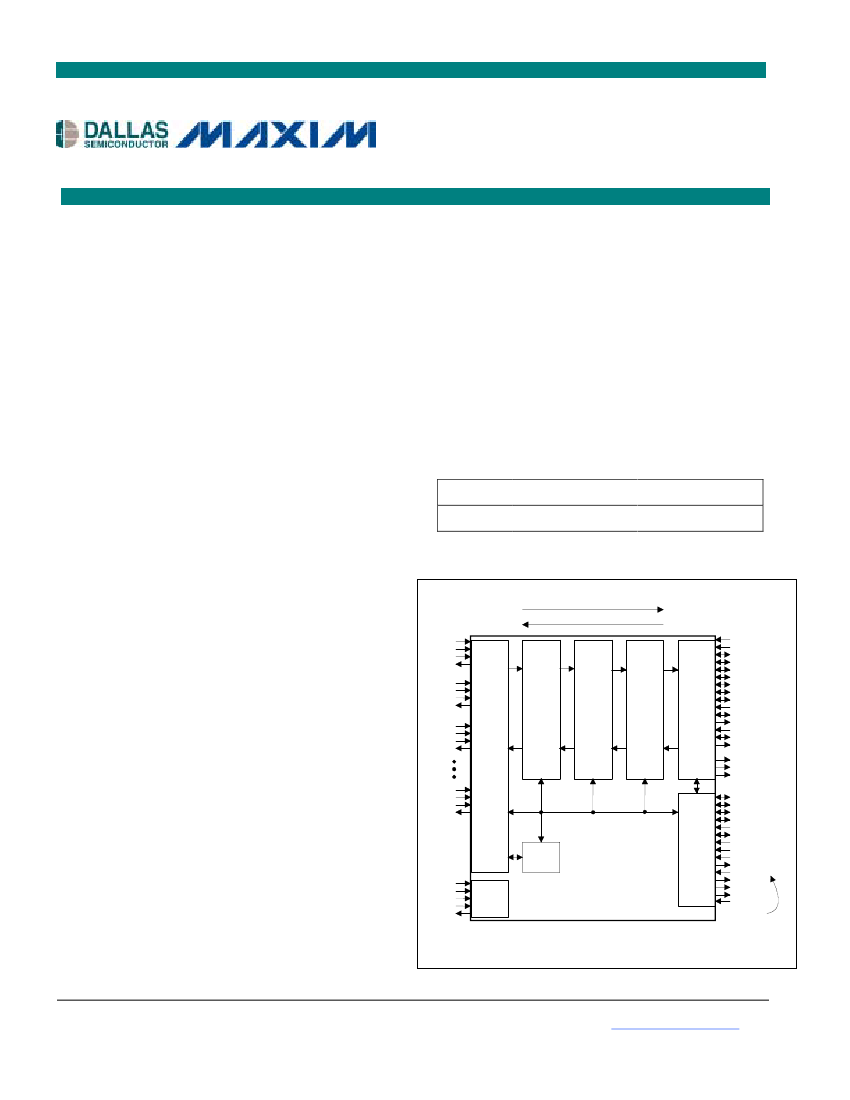

DS3131DK

Bit-SynchronouS (BoSS)

HDLC Controller Demo Kit

www.maxim-ic.com

GENERAL DESCRIPTION

The DS3131 bit-synchronous (BoSS) HDLC

controller can handle up to 40 channels of high-

speed, unchannelized, bit-synchronous HDLC.

The on-board DMA has been optimized for

maximum flexibility and PCI bus efficiency to

minimize host processor intervention in the data

path. Diagnostic loopbacks and an on-board

BERT remove the need for external components.

FEATURES

摟

摟

摟

摟

摟

摟

摟

摟

摟

40 Timing Independent Ports

40 Bidirectional HDLC Channels

Each Port Can Operate Up to 52Mbps

Up to 132Mbps Full-Duplex Throughput

On-Board Bit Error-Rate Tester (BERT)

Diagnostic Loopbacks in Both Directions

Local Bus Supports PCI Bridging

33MHz 32-Bit PCI Interface

Full Suite of Driver Code

APPLICATIONS

Routers

xDSL Access Multiplexers (DSLAMs)

Clear-Channel (unchannelized) T1/E1

Clear-Channel (unchannelized) T3/E3

SONET/SDH Path Overhead Termination

High-Density V.35 Terminations

High-Speed Links such as HSSI

ORDERING INFORMATION

PART

DS3131

TEMP RANGE

0擄C to +70擄C

PIN-PACKAGE

272 PBGA

FUNCTIONAL DIAGRAM

RECEIVE DIRECTION

TRANSMIT DIRECTION

RC0

RD0

TC0

TD0

RC1

RD1

TC1

TD1

RC2

RD2

TC2

TD2

40-BIT SYNCHRONOUS

HDLC CONTROLLERS

PCLK

PRST

PAD[31:0]

PCBE[3:0]

PPAR

PFRAME

PIRDY

PTRDY

PSTOP

PIDSEL

PDEVSEL

PREQ

PGNT

PPERR

PSERR

PXAS

PXDS

PXBLAST

DMA BLOCK

RC39

RD39

TC39

TD39

LAYER 1 BLOCK

FIFO BLOCK

PCI BLOCK

LOCAL BUS BLOCK

INTERNAL CONTROL BUS

LA[19:0]

LD[15:0]

LWR(

LR

/W)

LRD(LDS)

LIM

BERT

DS3131

JTRST

JTDI

JTMS

JTCLK

JTDO

JTAG TEST

ACCESS

LINT

LRDY

LMS

LCS

LHOLD(LBR)

LHLDA(

LBG

)

LBGACK

LCLK

LBHE

LBPXS

PIN NAMES IN ( )

ARE ACTIVE WHEN

THE DEVICE IS IN

THE MOT MODE

(i.e., LIM = 1).

Note:

Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device

may be simultaneously available through various sales channels. For information about device errata, click here:

www.maxim-ic.com/errata.

1 of 33

111802
