DS2740K
www.maxim-ic.com
High-Precision Coulomb Counter IC
Evaluation Kit
FEATURES
摟
Demonstrates the Capabilities of the DS2740
High-Precision Coulomb Counting IC
Including:
-
Real-Time Current Measurements
-
High-Precision Current Accumulation
-
Identification
-
Programmable I/O Operation
Interfaces to the Serial Port of a PC Running
Windows 95 or Newer
摟
PD122402*
DS2740K TSSOP
INDEX
Evaluation Kit Contents
Equipment Needed
Introduction

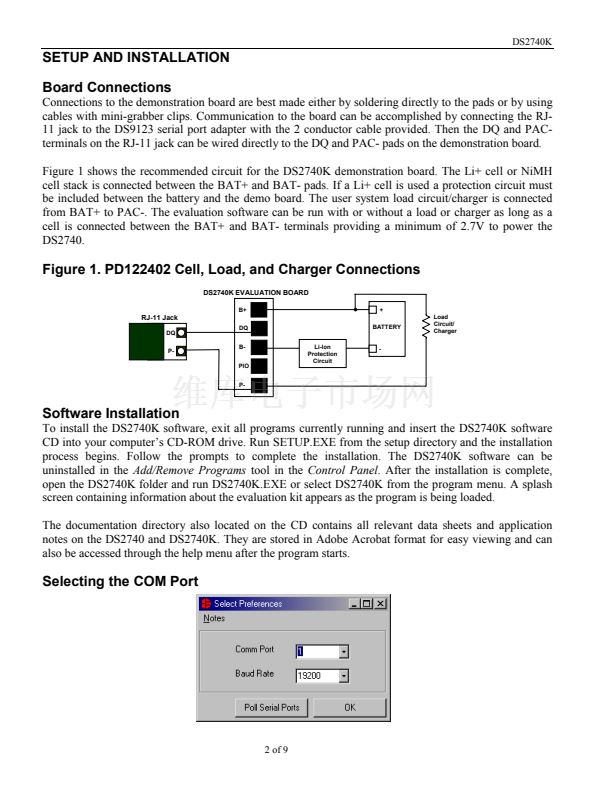

Setup and Installation
Board Connections
Software Installation

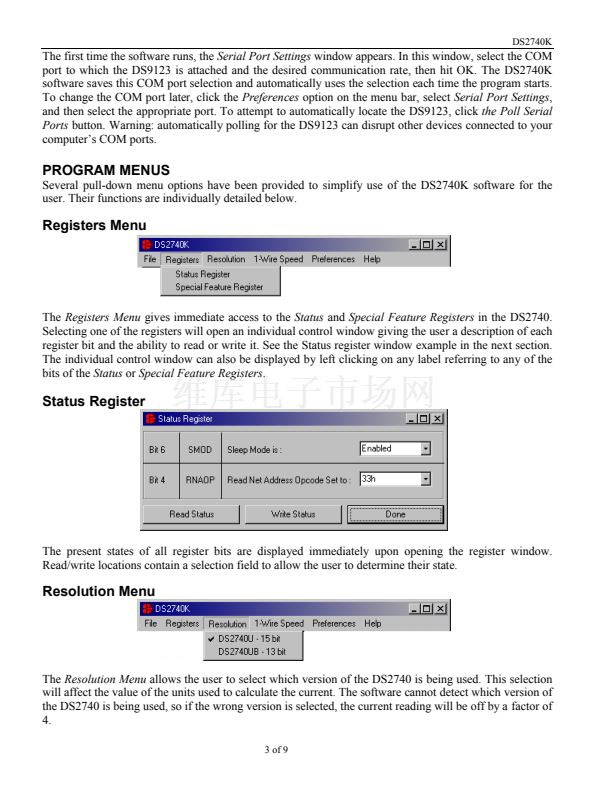

Selecting the COM Port

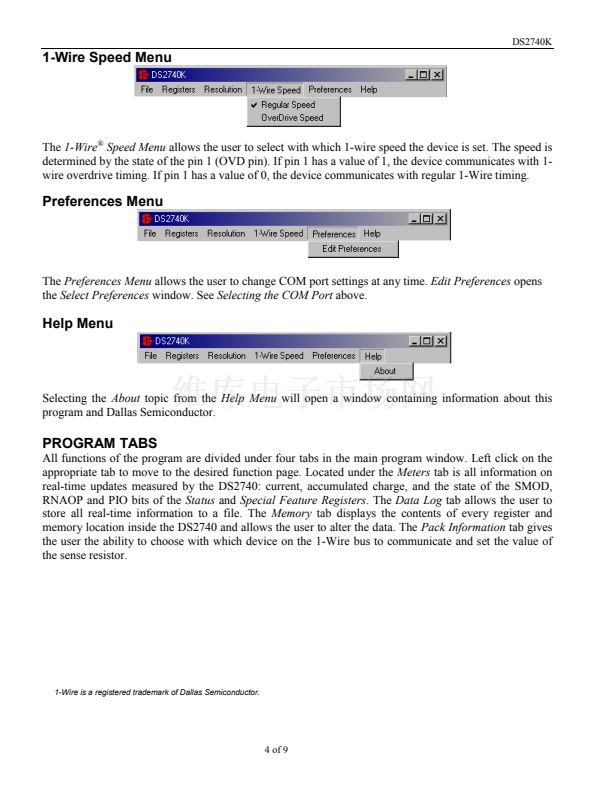

Program Menus
Program Tabs
Meters Tab
Data Log Tab
Memory Tab
Pack Information Tab
EVALUATION KIT CONTENTS
1 pc. TSSOP Evaluation Board
1 pc. DS9123 Serial Port Adapter
1 pc. RJ-11 Phone Cable
1 pc. DS2740K CD containing:
DS2740K Evaluation Software
DS2740 Related Documentation
EQUIPMENT NEEDED
1) A PC running Windows 95 or newer with a
CD-ROM drive and an available serial port.
2) Cables with mini-grabber style clips or the
ability to solder directly to connection pads.
3) A Lithium-Ion (Li+) battery or 3-cell NiMH
stack and a power supply and/or load circuit.
INTRODUCTION
The DS2740K evaluation kit makes performance evaluation, software development, and prototyping with
the DS2740 high-precision coulomb counting IC easy. The evaluation board interfaces to a PC running
Windows 95 or newer through a DS9123 serial port adapter and RJ-11 cable connection. The CD-ROM
provided contains all related data sheets along with the evaluation software.
The DS2740K evaluation software gives the user complete control of all functions of the DS2740.
Separate control tabs allow the user access to all memory locations, all status registers, and real-time
updates of all monitored parameters. The software also incorporates a data-logging feature to monitor a
battery over time.
The evaluation board circuit is designed to provide the DS2740 with accurate parameter measurements
and protect the DS2740 from ESD damage.
*Kit demonstration boards will vary as they are improved upon over time. For information on the
demonstration board circuits refer to the documentation directory on the DS2740K CD-ROM.
1 of 9
040803
