DS2720K
Li+ Battery Protector Evaluation Kit
www.maxim-ic.com
FEATURES
摟
Demonstrates the Capabilities of the DS2720
Li+ Battery Monitor, Including:
-
Information Storage
-
Identification
-
Overvoltage/Undervoltage Protection
-
Overcurrent/Short-Circuit Protection
-
Overtemperature Protection
-
Multiple Pack Management
-
Depleted Cell Recovery
Interfaces to the Serial Port of a PC Running
Windows 95, 98, 2000, NT, or XP
PD060601

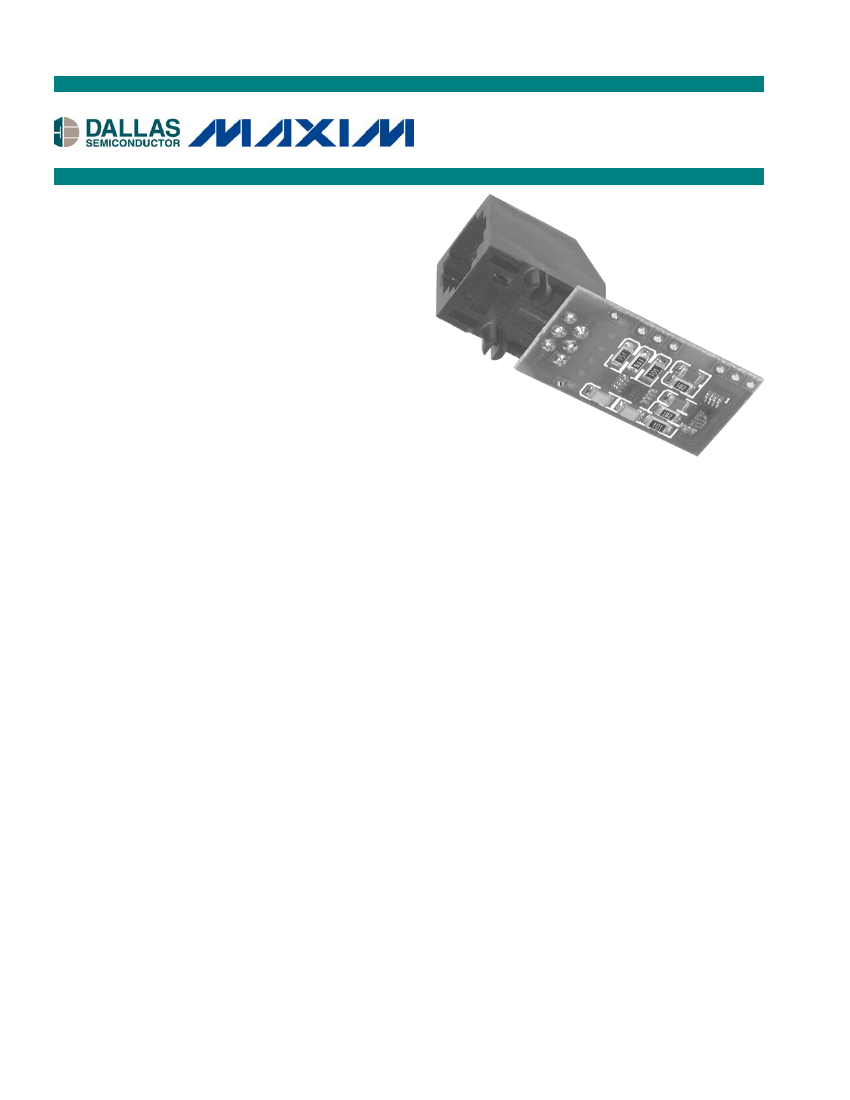

DS2720K 碌SOP
摟
INDEX
Evaluation Kit Contents
Equipment Needed
Introduction
Setup and Installation
Board Connections
Software Installation
Selecting the COM Port
Program Menus
Register Windows
Program Tabs
User Memory
Pack Information
EVALUATION KIT CONTENTS
1 pc. 碌SOP Evaluation Board
1 pc. DS9123 Serial Port Adapter
1 pc. RJ-11 Phone Cable
1 pc. DS2720K CD containing:
DS2720K Evaluation Software
DS2720 Related Documentation
EQUIPMENT NEEDED
1. An IBM-compatible PC running Windows 95,
98, 2000, NT, or XP with a CD-ROM drive
and an available serial port.
2. Cables with mini-grabber style clips or the
ability to solder directly to connection pads.
3. A Li+ or Li-polymer battery and a power
supply and/or load circuit.
INTRODUCTION
The DS2720K evaluation kit makes performance evaluation, software development, and prototyping with
the DS2720 Li+ battery protector easy. The evaluation board interfaces to an IBM-compatible PC through
a DS9123 serial port adapter and RJ-11 cable connection. The provided CD-ROM contains all related
data sheets along with the evaluation software, which can be run under any Windows environment. The
DS2720K evaluation software gives the user complete control of all functions of the DS2720. Separate
control tabs allow the user access to all EEPROM memory and register locations. The evaluation board
circuit is designed to provide the user with a complete cell pack circuit and protect the DS2720 from ESD
damage. Kit demonstration boards will vary as they are improved upon over time. For information on the
demonstration board circuits refer to the documentation directory on the DS2720K CD-ROM.
