DS21Q55DK Datasheet

  • DS21Q55DK

  • Quad T1/E1/J1 Transceiver Design Kit Daughter Card

  • 31頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

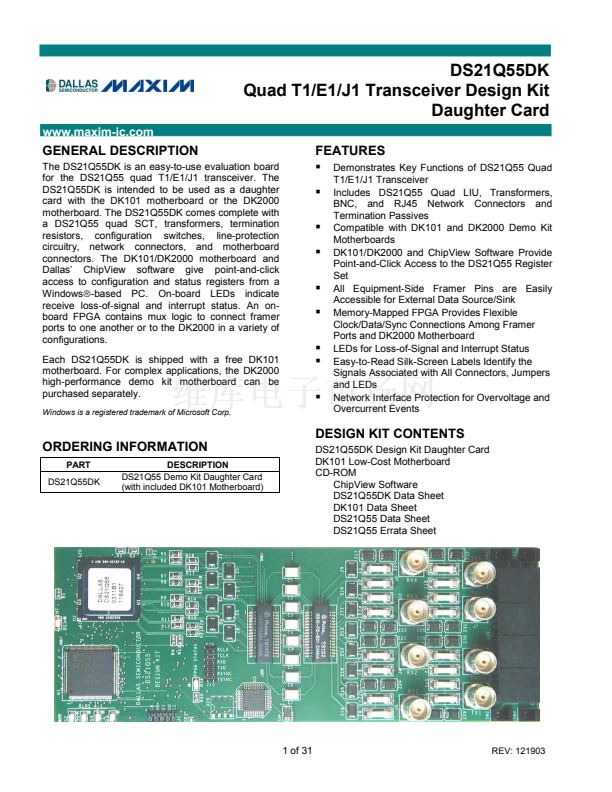

DS21Q55DK
Quad T1/E1/J1 Transceiver Design Kit
Daughter Card
www.maxim-ic.com
GENERAL DESCRIPTION

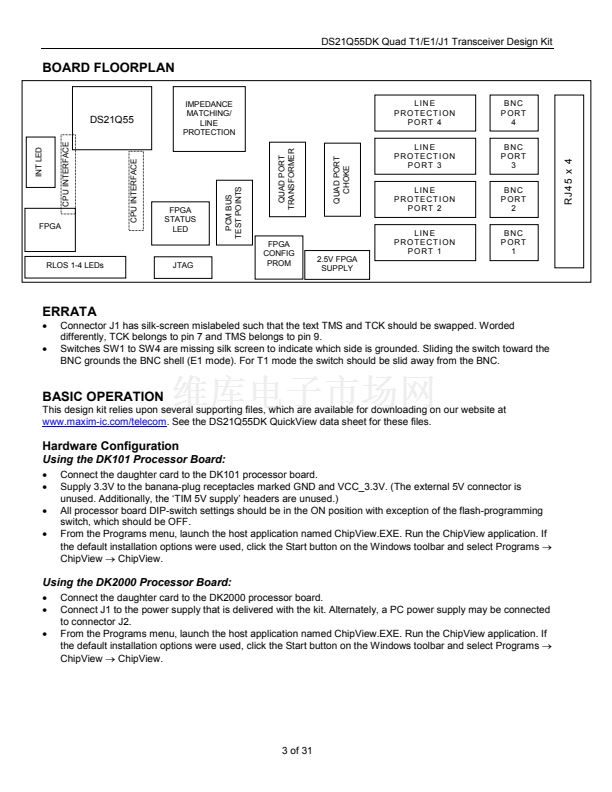

The DS21Q55DK is an easy-to-use evaluation board
for the DS21Q55 quad T1/E1/J1 transceiver. The
DS21Q55DK is intended to be used as a daughter
card with the DK101 motherboard or the DK2000
motherboard. The DS21Q55DK comes complete with

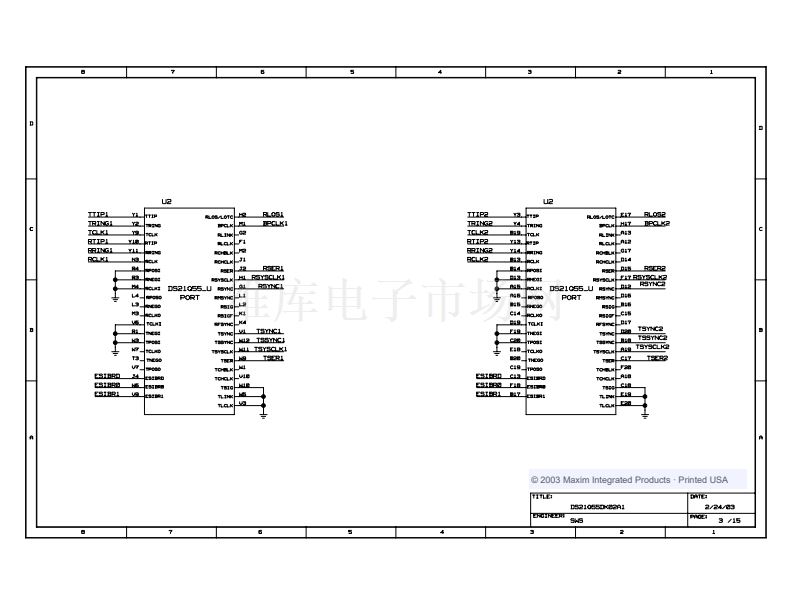

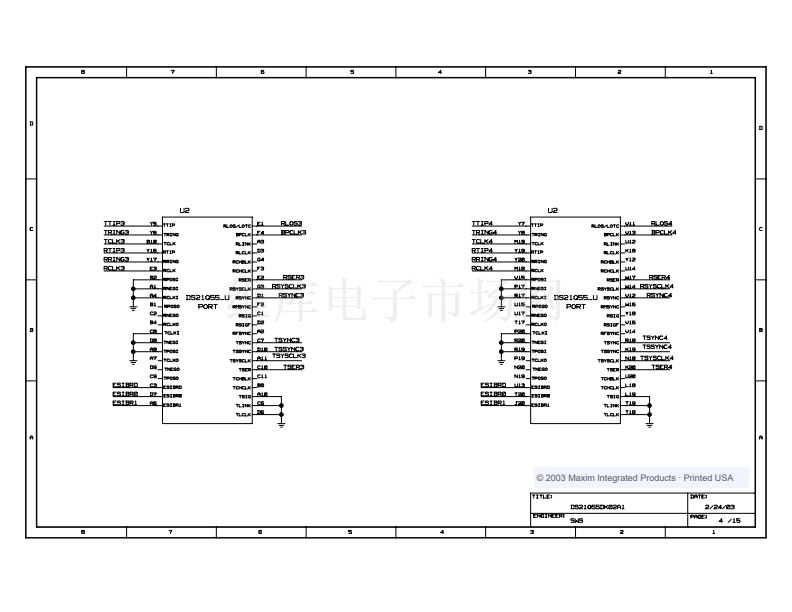

a DS21Q55 quad SCT, transformers, termination
resistors, configuration switches, line-protection
circuitry, network connectors, and motherboard
connectors. The DK101/DK2000 motherboard and
Dallas鈥?ChipView software give point-and-click
access to configuration and status registers from a
Windows芒-based PC. On-board LEDs indicate

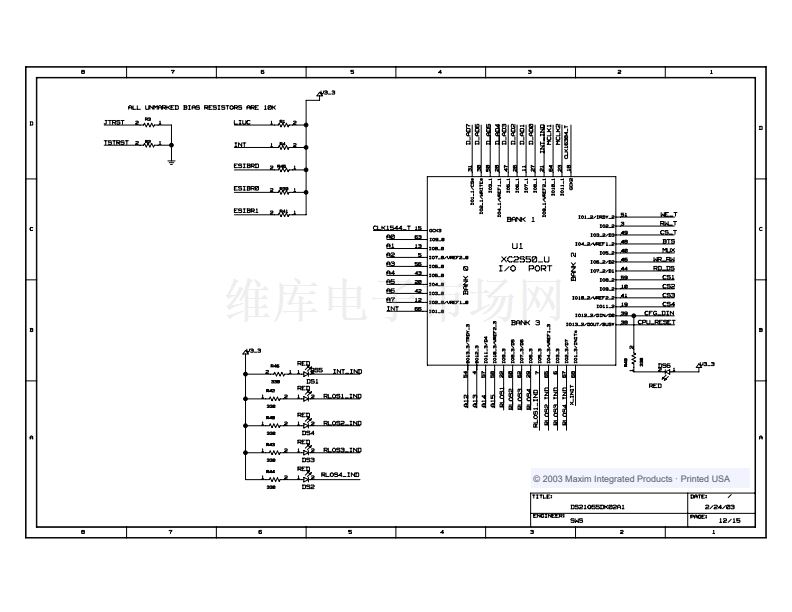

receive loss-of-signal and interrupt status. An on-

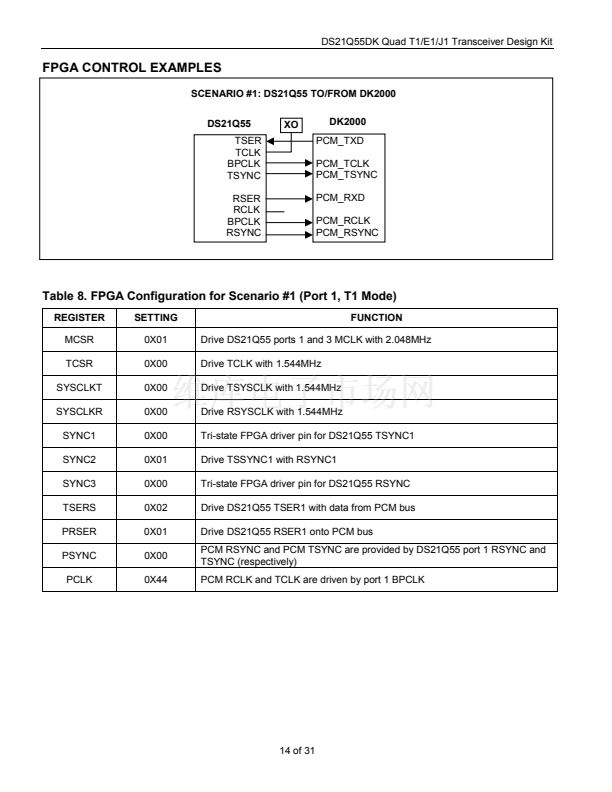

board FPGA contains mux logic to connect framer
ports to one another or to the DK2000 in a variety of
configurations.
Each DS21Q55DK is shipped with a free DK101
motherboard. For complex applications, the DK2000
high-performance demo kit motherboard can be
purchased separately.
Windows is a registered trademark of Microsoft Corp.
FEATURES
摟
摟
摟
摟
摟
摟
摟
摟
摟
Demonstrates Key Functions of DS21Q55 Quad
T1/E1/J1 Transceiver
Includes DS21Q55 Quad LIU, Transformers,
BNC, and RJ45 Network Connectors and
Termination Passives
Compatible with DK101 and DK2000 Demo Kit
Motherboards
DK101/DK2000 and ChipView Software Provide
Point-and-Click Access to the DS21Q55 Register
Set
All Equipment-Side Framer Pins are Easily
Accessible for External Data Source/Sink

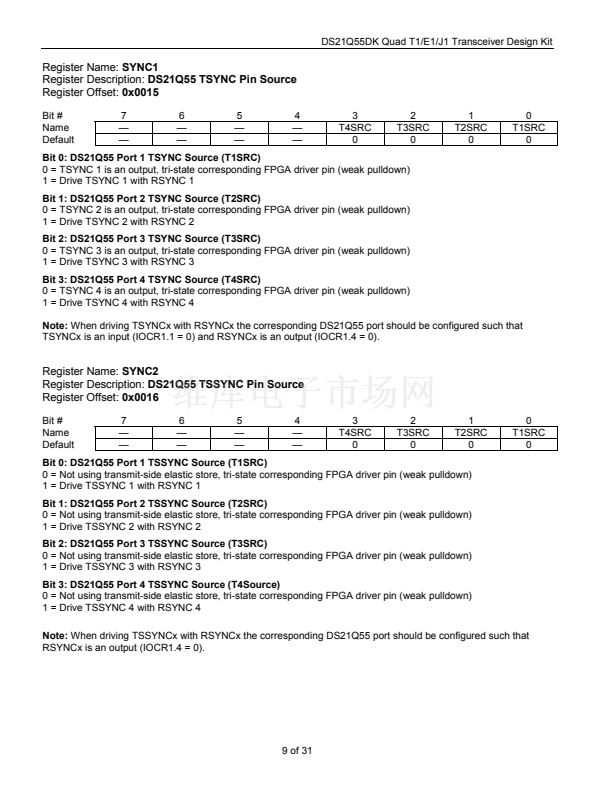

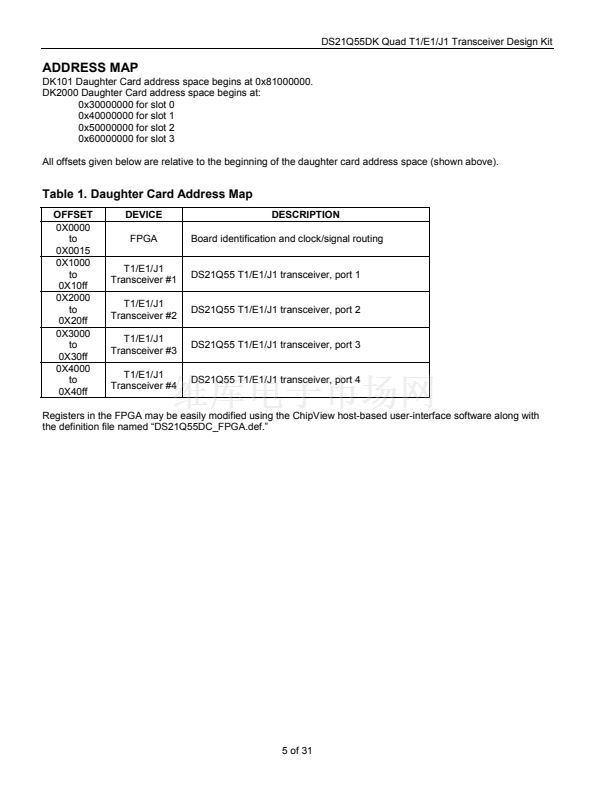

Memory-Mapped FPGA Provides Flexible
Clock/Data/Sync Connections Among Framer
Ports and DK2000 Motherboard
LEDs for Loss-of-Signal and Interrupt Status
Easy-to-Read Silk-Screen Labels Identify the
Signals Associated with All Connectors, Jumpers
and LEDs

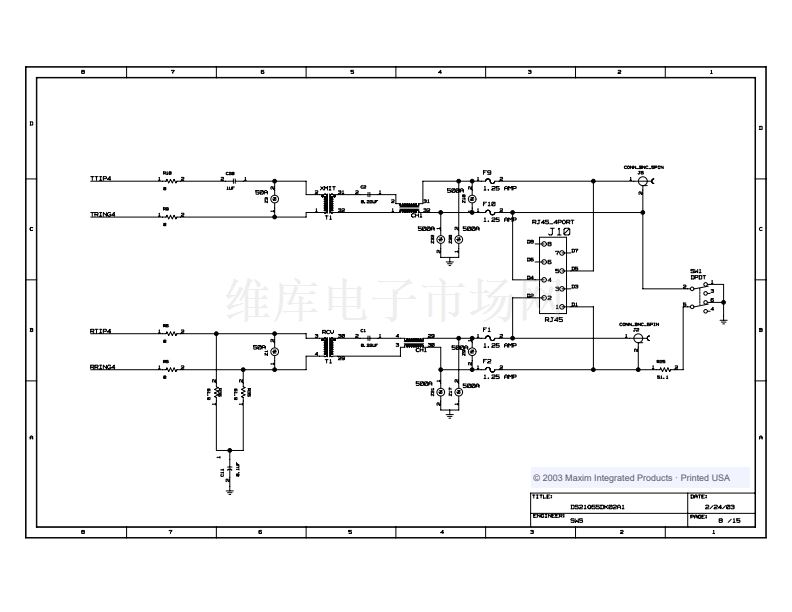

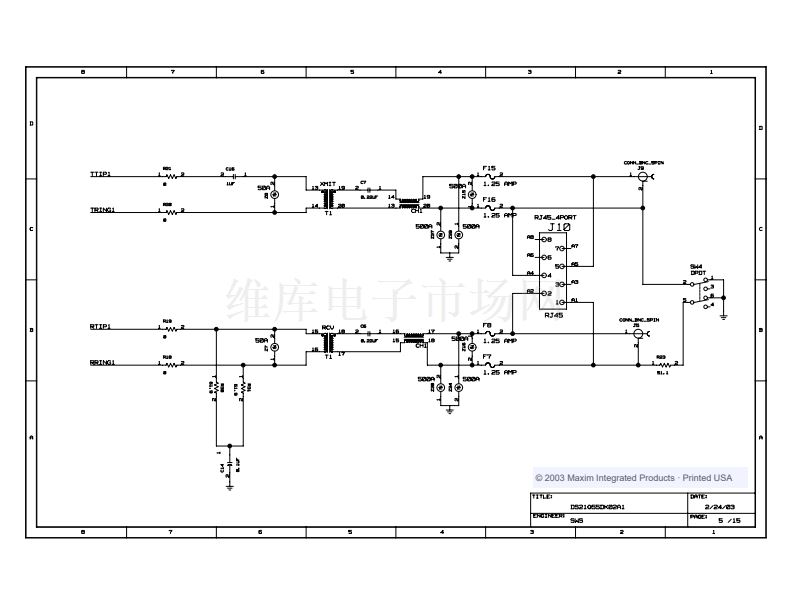

Network Interface Protection for Overvoltage and
Overcurrent Events
ORDERING INFORMATION
PART
DS21Q55DK
DESCRIPTION
DS21Q55 Demo Kit Daughter Card
(with included DK101 Motherboard)
DESIGN KIT CONTENTS

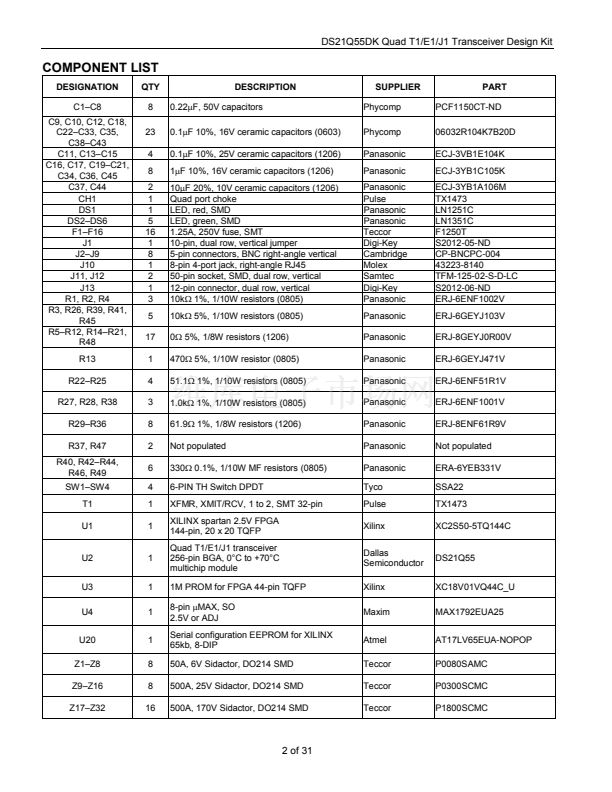

DS21Q55DK Design Kit Daughter Card
DK101 Low-Cost Motherboard
CD-ROM
ChipView Software
DS21Q55DK Data Sheet
DK101 Data Sheet
DS21Q55 Data Sheet
DS21Q55 Errata Sheet
1 of 31
REV: 121903
