DS1035-10 Datasheet

  • DS1035-10

  • 3-in-1 High.Speed Silicon Delay Line

  • 6頁

  • DALLAS   DALLAS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DS1035
3-in-1 High鈥揝peed Silicon Delay Line
www.dalsemi.com
FEATURES
All-silicon timing circuit
Three independent buffered delays
Stable and precise over temperature and
voltage
Leading and trailing edge precision preserves
the input symmetry
Standard 8-pin DIP and 8-pin SOIC (150 mil)
Vapor phasing, IR and wave solderable
Available in Tape and Reel
PIN ASSIGNMENT
IN1
IN2
IN3
GND
1
2
3
4
8
7
6
5
V
CC
OUT1
OUT2
OUT3
DS1035M 8-Pin DIP
See Mech. Drawings Section
IN1
IN2
IN3
GND
1
2
3
4
8
7
6
5
V
CC
OUT1
OUT2
OUT3
DS1035Z 8-Pin SOIC (150-mil)
See Mech. Drawings Section
PIN DESCRIPTION
IN1-IN3
OUT1-OUT3
NC
V
CC
GND
(Sub)
- Input Signals
- Output Signals
- No Connection
- +5 Volt Supply
- Ground
- Internal substrate
connection, do not make
any external connections
to these pins
DESCRIPTION
The DS1035 series is a low-power +5-volt high-speed version of the popular DS1013 and complements
the DS1033 +3.3 Volt version.
The DS1035 series of delay lines have three independent logic buffered delays in a single package. The
device is Dallas Semiconductor鈥檚 fastest 3-in-1 delay line. It is available in a standard 8-pin DIP and 150
Mil 8-pin Mini-SOIC.
The device features precise leading and trailing edge accuracies. It has the inherent reliability of an all-
silicon delay line solution. The DS1035鈥檚 initial tolerance is
鹵1.5
or
鹵2.0
ns with an additional tolerance
over temperature and voltage of
鹵1.0
ns or
鹵1.5
ns, depending on the delay value. Each output is capable
of driving up to 10 LS loads.
Standard delay values are indicated in Table 1. Customers may contact Dallas Semiconductor at (982)
371-4348 for further information.

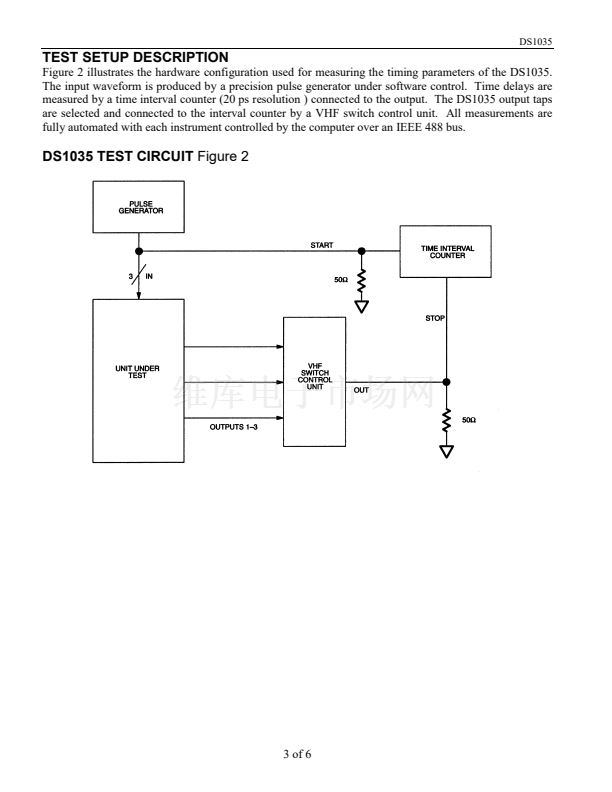

1 of 6
111799
