鈥?2dBc at 6Vp-p, 100kHz, 100鈩?/div>
q
LOW QUIESCENT CURRENT: 11mA
q
FIXED DIFFERENTIAL GAIN: 3V/V

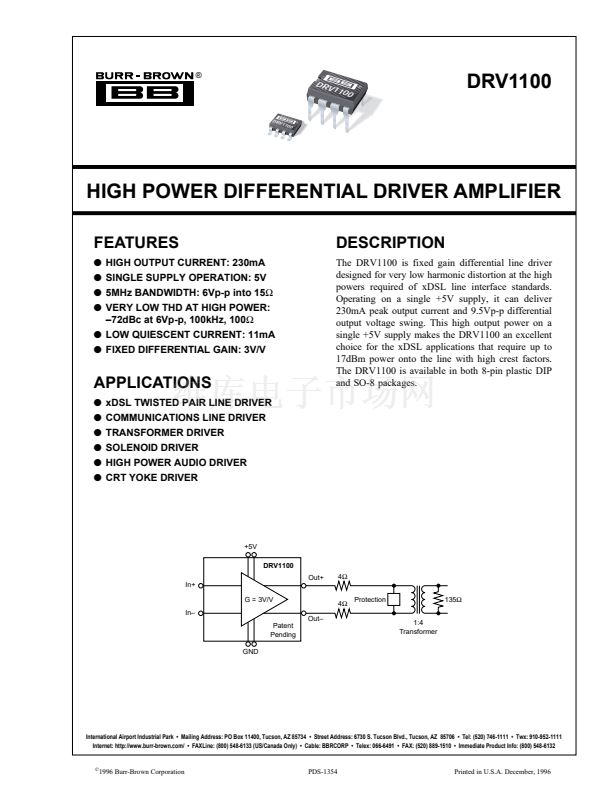

DESCRIPTION
The DRV1100 is fixed gain differential line driver
designed for very low harmonic distortion at the high
powers required of xDSL line interface standards.
Operating on a single +5V supply, it can deliver
230mA peak output current and 9.5Vp-p differential
output voltage swing. This high output power on a
single +5V supply makes the DRV1100 an excellent
choice for the xDSL applications that require up to
17dBm power onto the line with high crest factors.
The DRV1100 is available in both 8-pin plastic DIP
and SO-8 packages.
APPLICATIONS
q
q
q
q
q
q
xDSL TWISTED PAIR LINE DRIVER
COMMUNICATIONS LINE DRIVER
TRANSFORMER DRIVER
SOLENOID DRIVER
HIGH POWER AUDIO DRIVER
CRT YOKE DRIVER

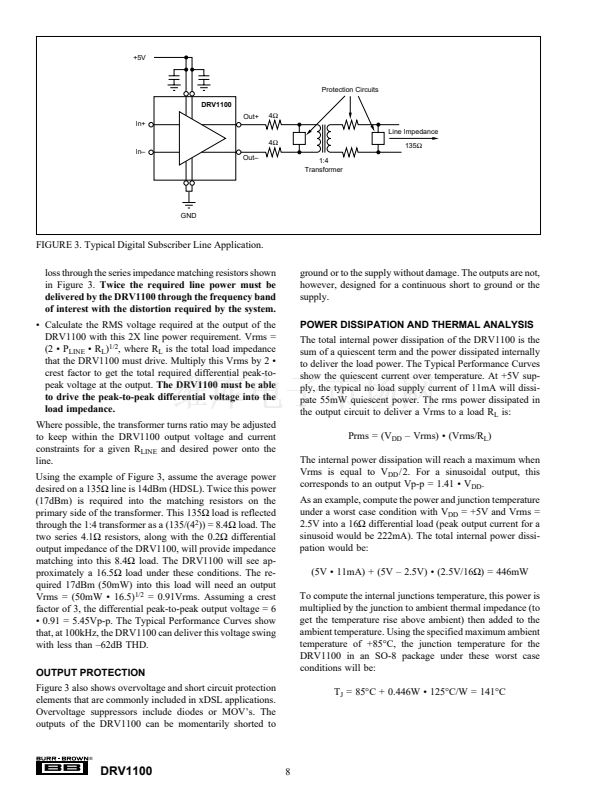

+5V
DRV1100
Out+
In+
G = 3V/V
In鈥?/div>
Patent
Pending
GND
Out鈥?/div>
4鈩?/div>
Protection
1:4
Transformer
135鈩?/div>
4鈩?/div>
International Airport Industrial Park 鈥?Mailing Address: PO Box 11400, Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 鈥?Tel: (520) 746-1111 鈥?Twx: 910-952-1111
Internet: http://www.burr-brown.com/ 鈥?FAXLine: (800) 548-6133 (US/Canada Only) 鈥?Cable: BBRCORP 鈥?Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132
漏
1996 Burr-Brown Corporation
PDS-1354
Printed in U.S.A. December, 1996
