ST7 EPB
Programming Boards for the ST7 MCU Family
FEATURES
s
Programming Boards (EPBs) available for all
DESCRIPTION
The ST7 EPB series of programming boards allow
you to program all ST7 microcontrollers having
OTP, EPROM, EEPROM or FLASH memories.
The layout of each programming board varies
depending on the type and package of the ST7
microcontroller you wish to program鈥攁 typical

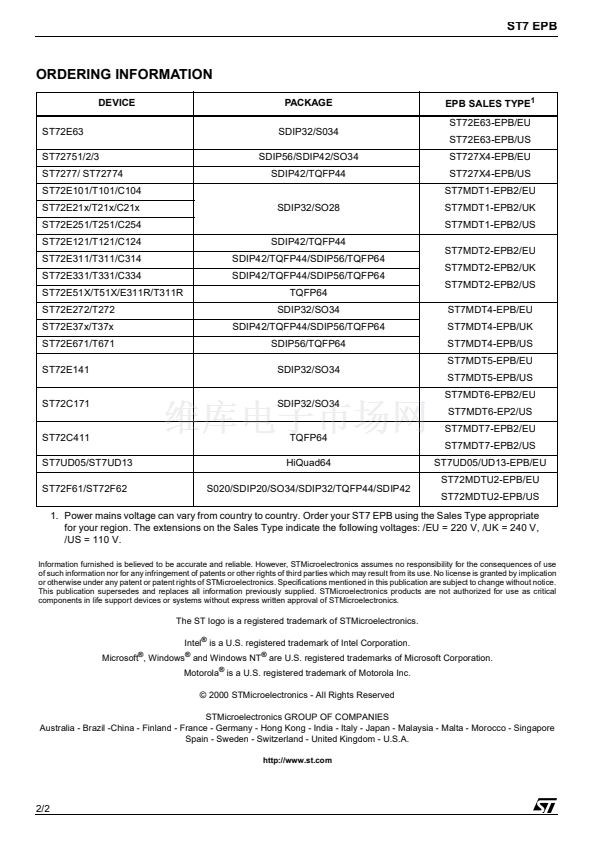

board layout is shown in the figure above. Ordering
information for ST7 EPB programming boards is
given on
page 2
.
Some of the programming boards also support ISP
(In Situ Programming).
OTP, EPROM, EEPROM and FLASH versions
of the ST7 MCU family.
s
Zero
Insertion Force (ZIF) sockets are
present on each programming board for each
supported package type
a standard parallel cable in standard mode or
ECP)
s
Connection to host PC via parallel port (with
s
Delivered with Windows
廬
-compatible host
software interface, ST7 Windows Epromer
(WINEE) which includes useful functions
such as VERIFY, BLANK CHECK, READ
MASTER and others.
s
Handles both Motorola
廬
S19 and Intel
廬
HEX
file formats.
Note that the ST7 EPB series of programming
boards are meant to program small numbers of
microcontrollers (i.e. prototypes in the development
stage). For mass production programming, it is
recommended that you use the appropriate gang
programmer.
December 2000
DOC-ST7-EPB/DS
Release 2.0
1/2
1
2
