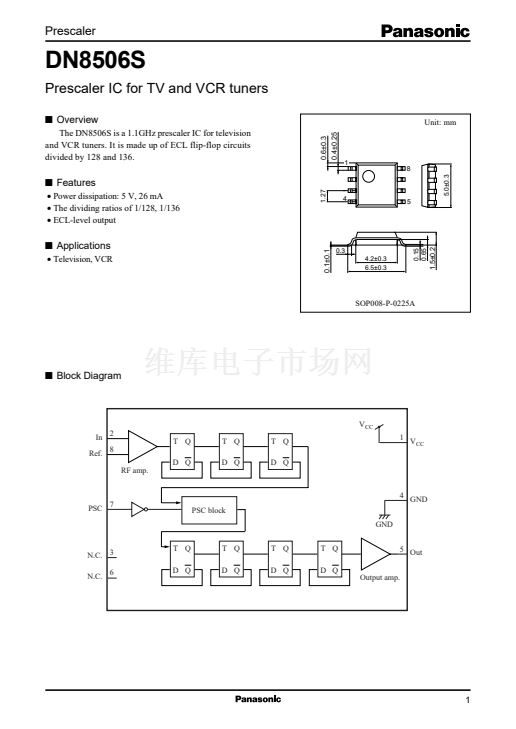

Prescaler

DN8506S

Prescaler IC for TV and VCR tuners

Overview

The DN8506S is a 1.1GHz prescaler IC for television

and VCR tuners. It is made up of ECL flip-flop circuits

divided by 128 and 136.

0.4鹵0.25

0.6鹵0.3

Unit: mm

5.0鹵0.3

Features

鈥?/div>

Power dissipation: 5 V, 26 mA

鈥?/div>

The dividing ratios of 1/128, 1/136

鈥?/div>

ECL-level output

1.27

鈥?/div>

Television, VCR

0.1鹵0.1

0.3

4.2鹵0.3

6.5鹵0.3

SOP008-P-0225A

Block Diagram

In 2

Ref. 8

D Q

RF amp.

4 GND

PSC block

GND

T Q

D Q

T Q

D Q

T Q

D Q

T Q

D Q

Output amp.

5 Out

D Q

T Q

1 V

PSC 7

N.C. 3

N.C. 6

1.5鹵0.2

0.15

0.65

Applications
