DMV1500LF5 Datasheet

  • DMV1500LF5

  • DAMPER + MODULATION DIODE FOR VIDEO

  • 9頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

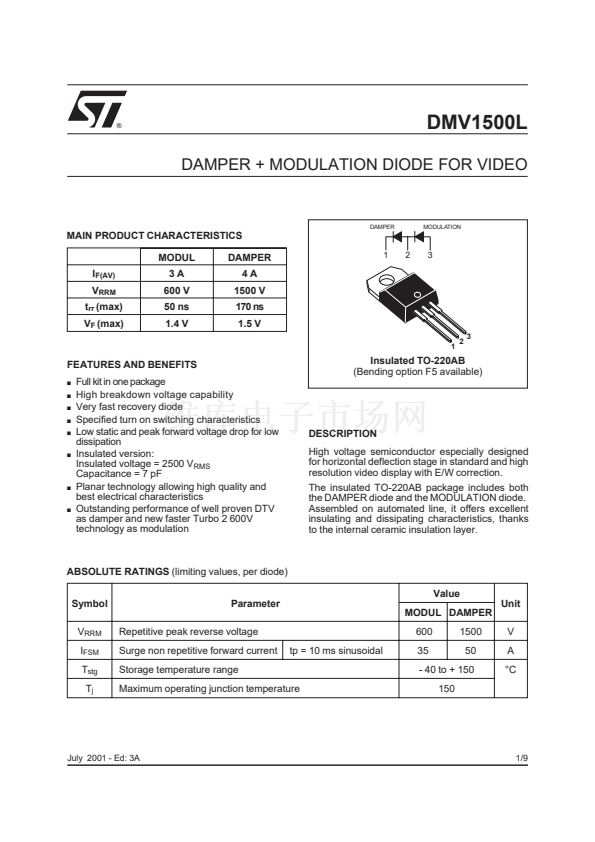

DMV1500L
DAMPER + MODULATION DIODE FOR VIDEO
DAMPER
MODULATION
MAIN PRODUCT CHARACTERISTICS
MODUL
I
F(AV)
V
RRM
t
rr
(max)
V
F
(max)
3A
600 V
50 ns
1.4 V
DAMPER
4A
1500 V
170 ns
1.5 V
1
2
3
1
2
3
FEATURES AND BENEFITS
s
s
s
s
s
Insulated TO-220AB
(Bending option F5 available)
s
s
s
Full kit in one package
High breakdown voltage capability
Very fast recovery diode
Specified turn on switching characteristics
Low static and peak forward voltage drop for low
dissipation
Insulated version:
Insulated voltage = 2500 V
RMS
Capacitance = 7 pF
Planar technology allowing high quality and
best electrical characteristics
Outstanding performance of well proven DTV
as damper and new faster Turbo 2 600V
technology as modulation
DESCRIPTION
High voltage semiconductor especially designed
for horizontal deflection stage in standard and high
resolution video display with E/W correction.
The insulated TO-220AB package includes both
the DAMPER diode and the MODULATION diode.
Assembled on automated line, it offers excellent
insulating and dissipating characteristics, thanks
to the internal ceramic insulation layer.
ABSOLUTE RATINGS
(limiting values, per diode)
Value
Symbol
V
RRM
I
FSM
T
stg
T
j
Parameter
MODUL DAMPER
Repetitive peak reverse voltage
Surge non repetitive forward current
Storage temperature range
Maximum operating junction temperature
tp = 10 ms sinusoidal
600
35
1500
50
V
A
擄C
Unit
- 40 to + 150
150
July 2001 - Ed: 3A
1/9
