DM74LS283N Datasheet

  • DM74LS283N

  • 4-Bit Binary Adder with Fast Carry

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DM74LS283 4-Bit Binary Adder with Fast Carry
August 1986
Revised March 2000
DM74LS283
4-Bit Binary Adder with Fast Carry
General Description
These full adders perform the addition of two 4-bit binary
numbers. The sum (鈭? outputs are provided for each bit
and the resultant carry (C4) is obtained from the fourth bit.
These adders feature full internal look ahead across all four
bits. This provides the system designer with partial look-
ahead performance at the economy and reduced package
count of a ripple-carry implementation.
The adder logic, including the carry, is implemented in its
true form meaning that the end-around carry can be
accomplished without the need for logic or level inversion.
Features
s
Full-carry look-ahead across the four bits
s
Systems achieve partial look-ahead performance with
the economy of ripple carry
s
Typical add times
Two 8-bit words
25 ns
Two 16-bit words 45 ns
s
Typical power dissipation per 4-bit adder 95 mW
Ordering Code:
Order Number
DM74LS283M
DM74LS283N
Package Number
M16A
N16E
Package Description
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram

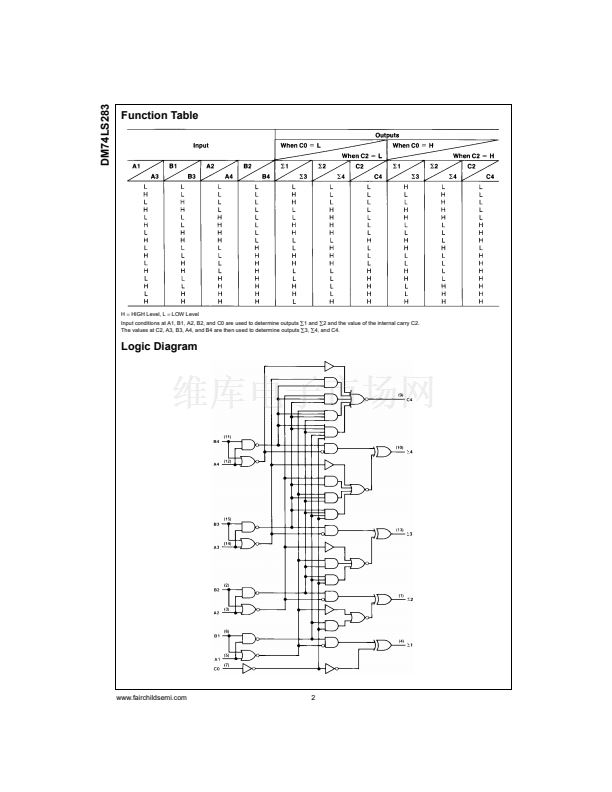

漏 2000 Fairchild Semiconductor Corporation
DS006421
www.fairchildsemi.com

DM74LS283N 產品屬性

  • 25

  • 集成電路 (IC)

  • 邏輯 - 專用邏輯

  • 74LS

  • 二進制全加法器

  • 4.75 V ~ 5.25 V

  • 4

  • 0°C ~ 70°C

  • 通孔

  • 16-DIP（0.300"，7.62mm）

  • 16-DIP

  • 管件

  • 74LS28374LS283N
