DM74AS27N Datasheet

  • DM74AS27N

  • Triple 3-Input NOR Gate

  • 4頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DM74AS27 Triple 3-Input NOR Gate
April 1984
Revised March 2000
DM74AS27
Triple 3-Input NOR Gate
General Description
This device contains three independent 3-input gates, each
of which performs the logic NOR function.
Features
s
Switching specifications at 50 pF
s
Switching specifications guaranteed over full
temperature and V
CC
range
s
Advanced oxide-isolated, ion-implanted Schottky TTL
process
s
Functionally and pin for pin compatible with Schottky,
low power Schottky, and advanced low power Schottky
TTL counterpart
s
Improved AC performance over Schottky, low power
Schottky, and advanced low power Schottky counter-
parts
Ordering Code:
Order Number
DM74AS27M
DM74AS27N
Package Number
M14A
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Function Table
Y
=
A
+
B
+
C
Inputs
A
L
H
X
X
B
L
X
H
X
C
L
X
X
H
Output
Y
H
L
L
L
H
=
HIGH Logic Level
L
=
LOW Logic Level
X
=
Either LOW or HIGH Logic Level
漏 2000 Fairchild Semiconductor Corporation
DS006278
www.fairchildsemi.com

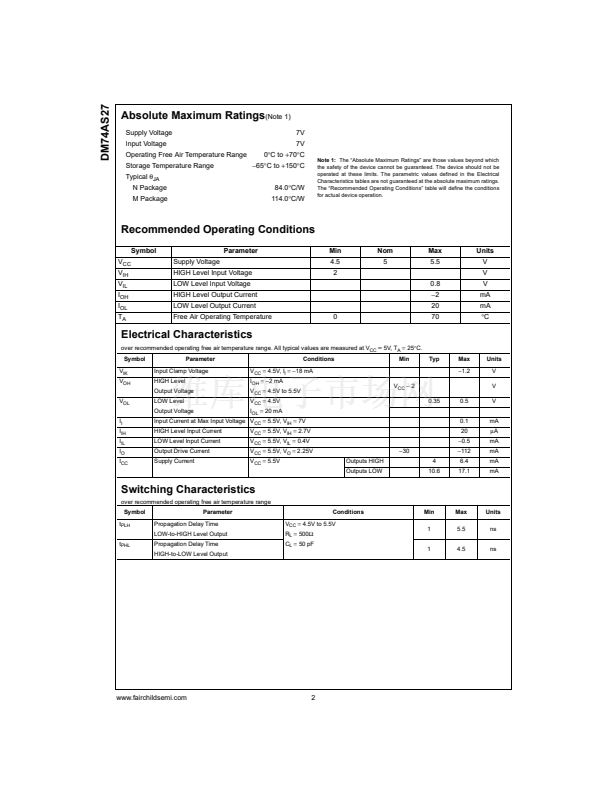

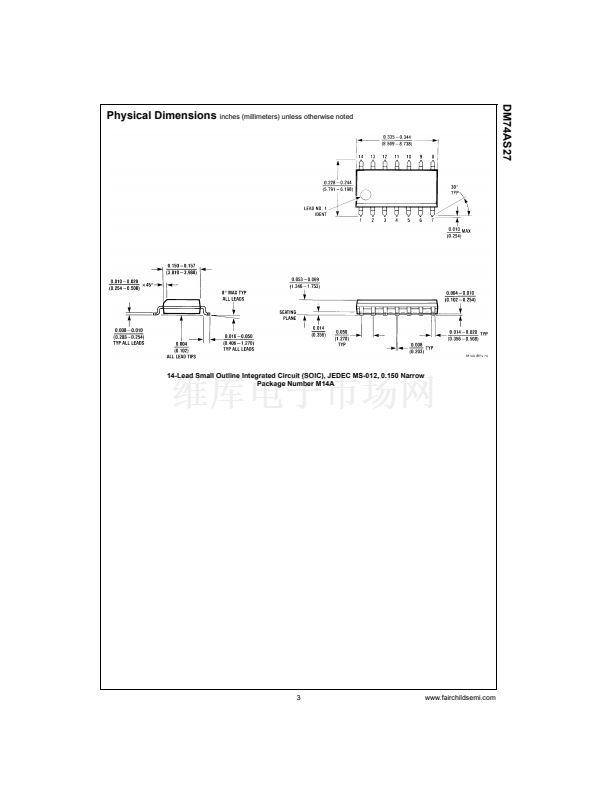

DM74AS27N 產品屬性

  • 25

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 74AS

  • 或非門

  • 3

  • 3

  • -

  • 4.5 V ~ 5.5 V

  • -

  • 2mA，20mA

  • 0.8V

  • 2V

  • 5.5ns @ 4.5V ~ 5.5V，50pF

  • 0°C ~ 70°C

  • 通孔

  • 14-DIP

  • 14-DIP（0.300"，7.62mm）

  • 管件

  • 74AS27
